Installation and Mounting
4.4
If the measuring wire has to be extracted from the
A measuring wire under
sensor to guide resp. to fix it to the target
tension where opera-
- the sensor may not be held by another person
tors are standing can
- the measuring wire may not be further extracted
lead to injuries.
> Danger of damage
to wire and sensor. - the surroundings of the sensor have to be pro-
Do not twist the
measuring wire.
Misalignment is only permissible up to
3 degrees.
Dragging of the measuring wire on the inlet hole or
other objects leads to damage and/or draft of the
measuring wire.
If the measuring wire cannot be fed vertically out of
the housing, it is essential to use a guide pulley (ac-
cessory TR1-WDS or TR3-WDS).

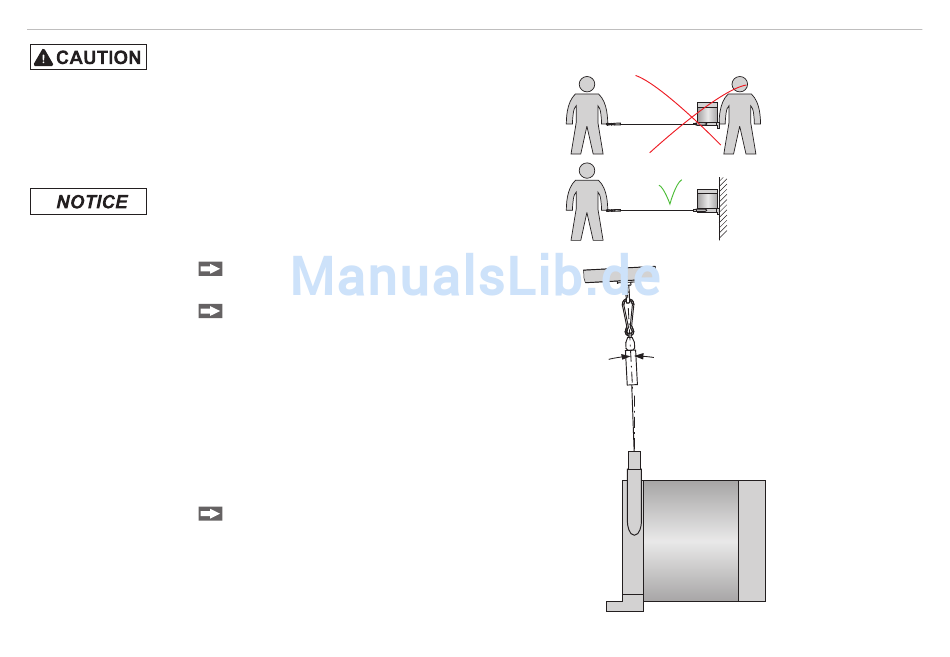

Fig. 8 Wire fastening and misalignment
wireSENSOR, Z60-M / P96-M / P115-M / P200-M

Wire Guide and Fastening

but only to the specified measuring range
tected against snapping of the measuring wire
Fix the measuring wire to the target using a
wire clip/threaded bolt/eyelet.
Fed the measuring wire perpendicularly from
the sensor housing.
Keep the measuring wire in an area where it
cannot be snagged or otherwise be violated.
Wire outlet 0 °
±3 ° tolerancy
max. 3 °
Wrong
Correct
