MICRO-EPSILON wireSENSOR P115-M Betriebsanleitung Seite 35

Installation and Mounting
50 (1.97)
4x Screw
M4x6 DIN 912
4x serrated lock
washer DIN 6798A
115
(4.53)

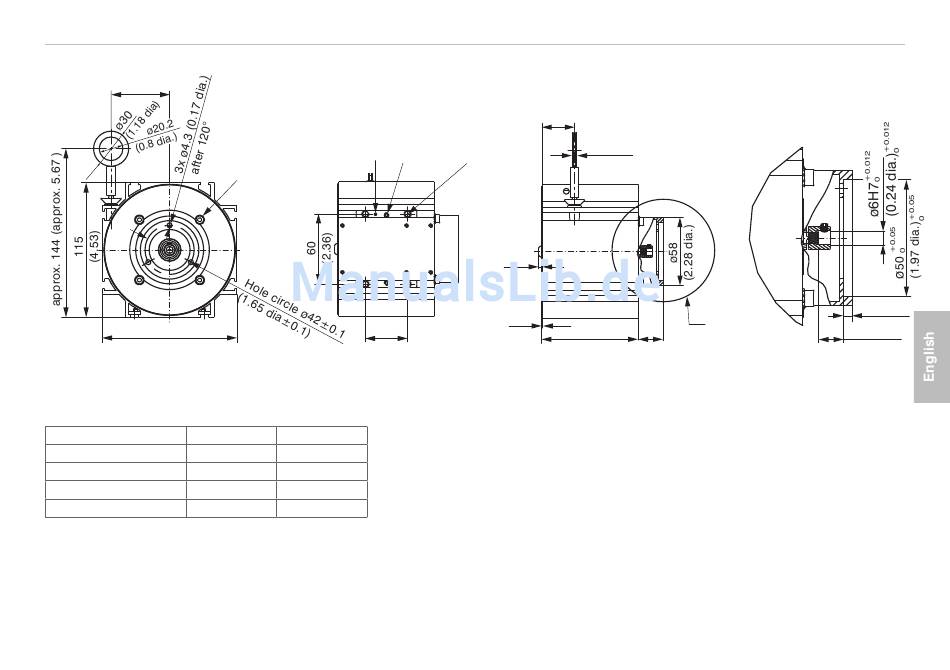

Fig. 4 WDS-P115-M, dimensions in mm (inches), not to scale
Measuring range
5000 28 (1.10)
7500 37 (1.46)
10000 44.5 (1.75)
15000 61 (2.40)
wireSENSOR, Z60-M / P96-M / P115-M / P200-M
2x Locking screw M4
2x Groove stone
36
(1.42)
A B
82.5 (3.25)
105.5 (4.15)
148.5 (5.85)
180.5 (7.11)
A
4 (1.42)
4x Fixing holes M4
2.8
(0.11)
1
(0.04) B
Detail A
A
21.2
(0.83)
4 (0.16)
10.5±0.5
(0.41)±0.5
Page 35
