Anhang | Accessories and Spare Parts

Appendix

A 1
MH1-WDS
TR1-WDS
TR3-WDS
WE-xxxx-M4
WE-xxxx-CLIP
A 2

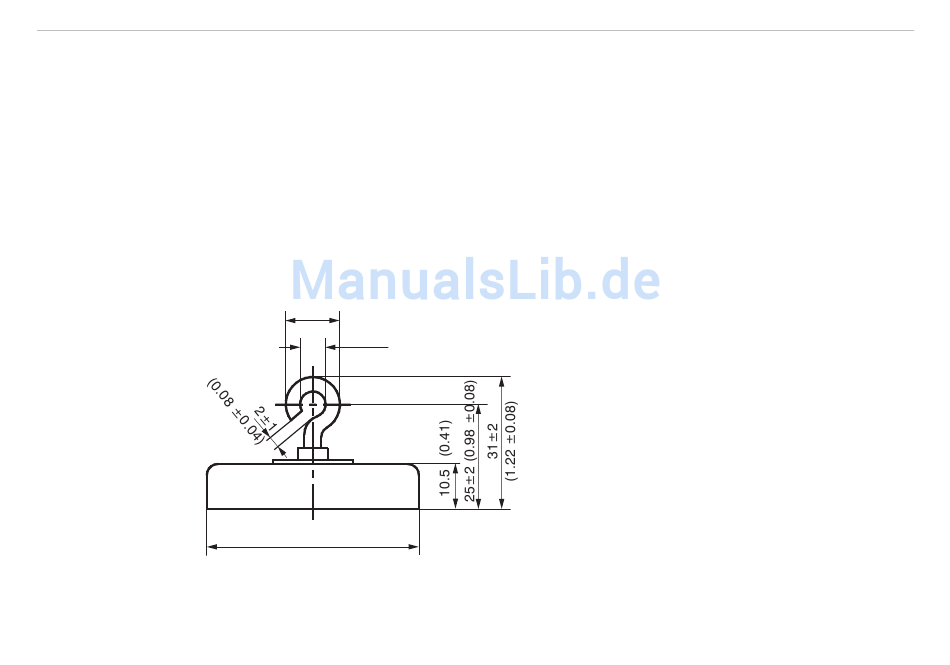

Fig. 10 Magnetic holder MH1 - WDS ,
dimensions in mm (inches), not to scale
wireSENSOR, Z60-M / P96-M / P115-M / P200-M
Accessories and Spare Parts
Magnetic holder with hole for M4 wire coupling, see
Guide pulley adjustable with mounting socket, see
Guide pulley fix with mounting socket, see
Wire extension with 2 x M4 thread, see
xxxx, max. 10,000 mm (33 ft)
Wire extension with wire clip, see
max. 10,000 mm (33 ft)
Drawings and References for Attachment
13 ±1 (0.51 ±0.04)
6±0.5 (0.24 ±0.02)
ø50 (1.97 dia.)
Abb. 11
Abb. 12
Abb. 13
Abb. 14, wire length in millimeters for
Fig. 13, wire length in millimeters for xxxx,
Mounting instructions for magnetic holder
MH1 - WDS
- The force normal to the St 37 plate is appro-
ximately 18 kg (635 oz) at 20 °C (+68 °F).
- The lateral force sustainable is, dependent
on the surface, about 20 - 35 % of normal
adhesion.
- Operation temperature: -40 to +120 °C
(-40 °F to +248 °F), Temperature coefficient
of the adhesion (reversible):
-4 % per 10 °C at 20 °C
- Strong vibration may cause a displacement
of the magnetic holder when subject to a
strong lateral force.
- Weight appr. 100 g
Seite 42
