Installation and Mounting
4.3
Installing the Encoder
Make sure that the measuring wire is always tensioned by the spring motor in order to prevent it from jumping off the pulley.
3x M3x10 DIN 912
Flange

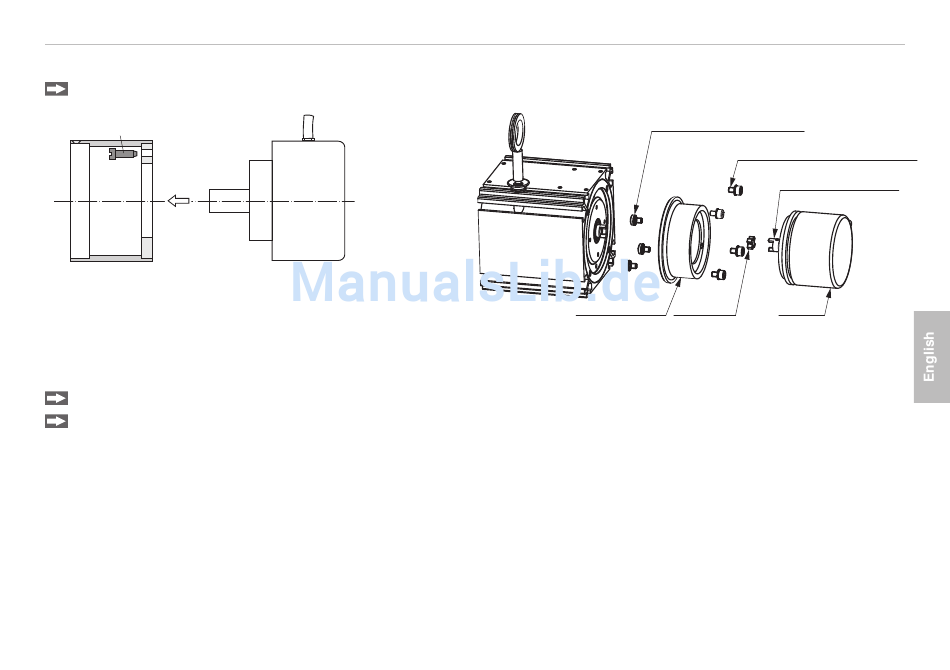

Fig. 6 Mounting of adapter flange and encoder, Series WDS-Z60
Mount the encoder/adapter flange assembly on the draw-wire mechanism.
Fasten the coupling and the encoder shaft with the supplied hexagon socket screw. Press the supplied cap into the opening in
the adapter flange housing.
i
Make sure that the encoder shaft is not rotated during installation! Follow the installation instructions issued by the manufacturer
of the encoder.
wireSENSOR, Z60-M / P96-M / P115-M / P200-M
Encoder
Synchro flange
Fig. 7 Mounting of adapter flange and encoder, Series WDS-Pxxx
3xM4 screws DIN7985
with serrated lock washers
4xM4 cylinder screws DIN912,
with serrated lock washers
Coupler Rotex GS
with grub screw M3
Elastomer
Rotary
coupler
encoder
Page 37
