4) Strictly follow the chapter of 4, the wiring requirement of single
UPS to perform the wiring of each UPS.
5) Connect the output wires of each UPS to an output breaker panel.
6) Disconnect the Jumper on JP1 and JP2 of the terminal block first,
and connect each output breaker to a main output breaker and
then to the loads.
7) Each UPS need an independent battery pack.
8) Please refer to the wiring diagram in the following diagram.
9) The distance between the UPSs in parallel and the breaker panel is
required to be less than 20 meters. The difference between the wires
of input and output of the UPSs is required to be less than 20%.

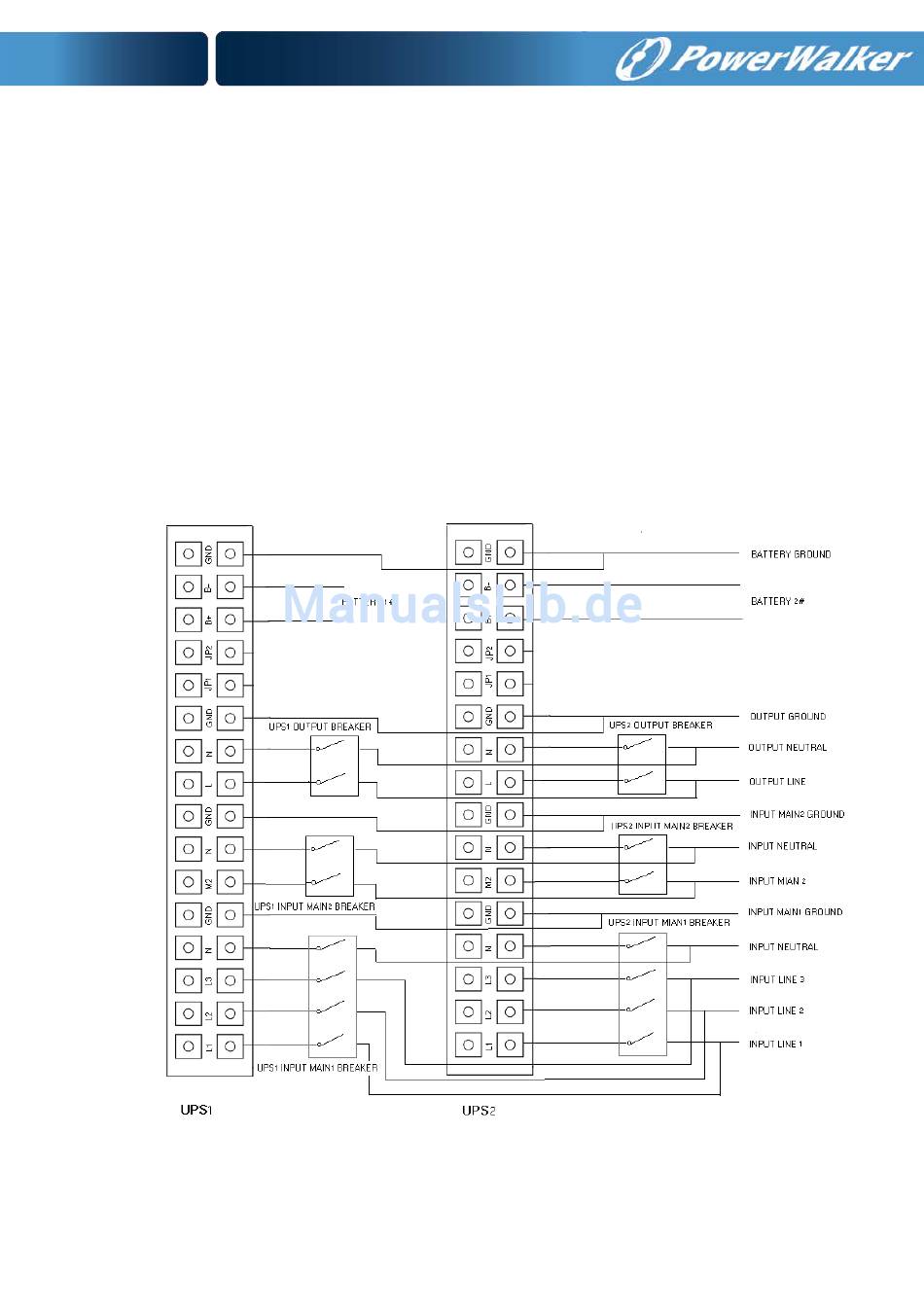

Fig. 6-1 Input and output Terminal Block wiring diagram of
PowerWalker VFI 10000-20000TP 3/1
