PowerWalker VFI 10000TP 3/1
Charger Current
6.4.1 Our charger output current has two optional levels
(2A&4A) for different battery pile.
6.4.2 Operate method:
2A charger current method

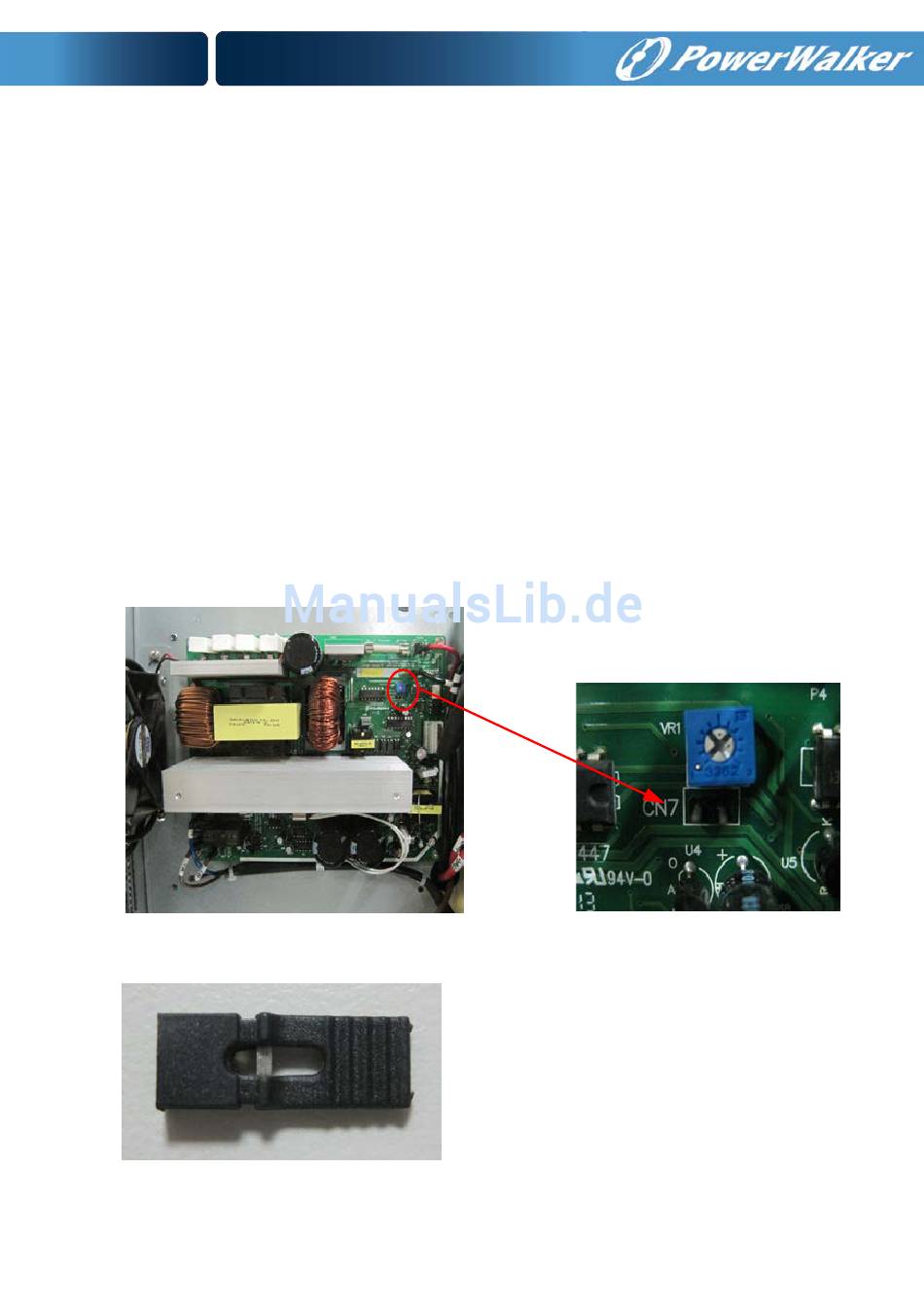

Insert short circuit pin 104-10000-01 in the CN7 position of charger
board. This is charging for 7AH*24 pcs or 9AH*24 pcs.
4A charger current method
Pull out short circuit pin 104-10000-01 from CN7 position of charger
board. This is for 2 piles of 7AH*24 pcs or 2 piles of 9AH*24 pcs.
Short circuit pin 104-10000-01
Optional Design of
47
