Getting Started
WARNING. To avoid shock or burn hazard, use only the standard
accessories or accessories that are rated for the application. Use the
P5210 High Voltage Differential Probe accessories with this product
only.
Keep your fingers behind the finger guard on the probe body
whenever possible to reduce the risk of a shock from the circuit under
test.
4

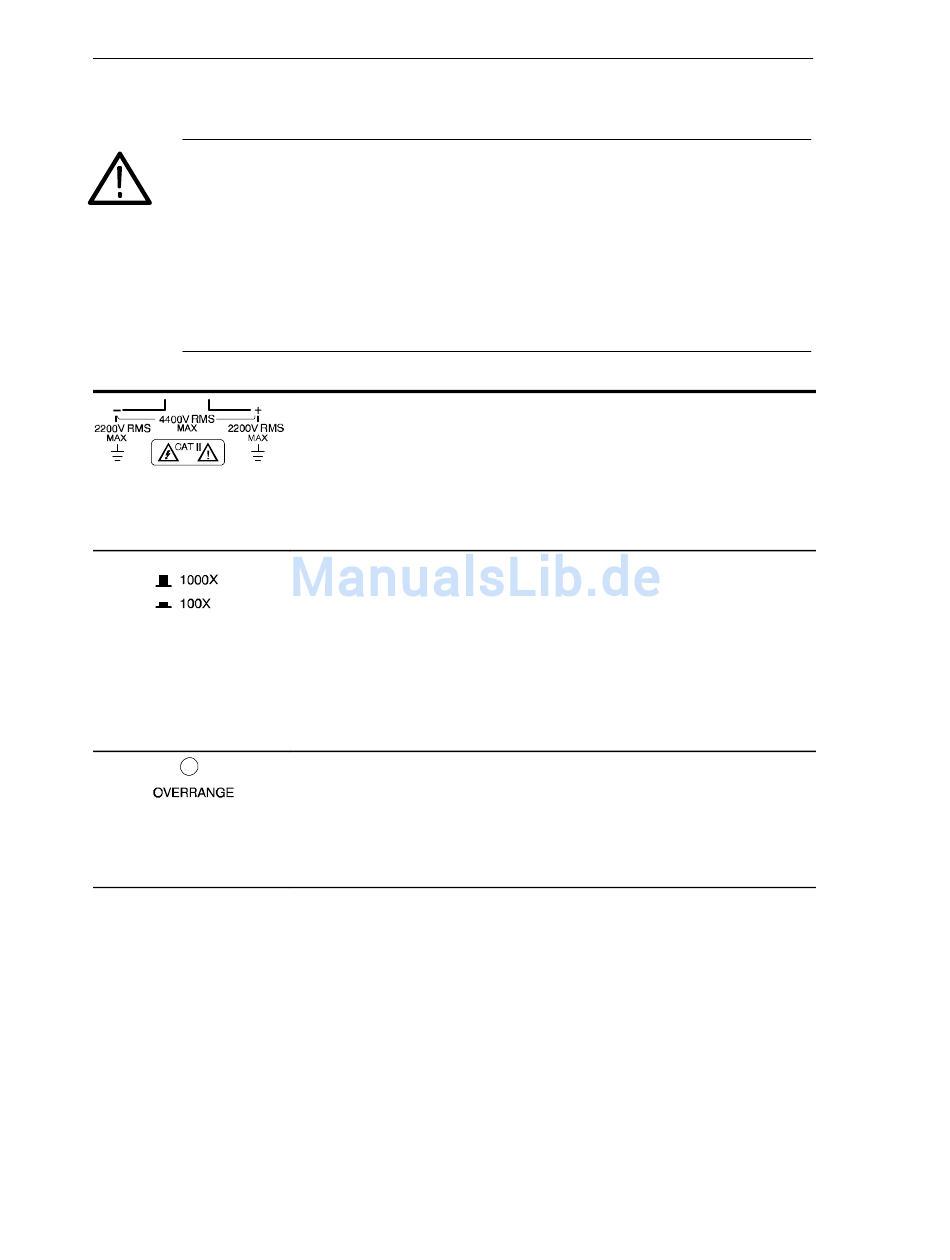

Differential Inputs. The inputs are CAT II rated to a
maximum of 2,200 V
earth ground. They are also rated for a maximum
difference of 4,400 V
with less than 5,600 V (DC + peak AC) between the
inputs.
Attenuation Range. In the raised position the range
button sets the attenuation to 1,000X. In the lowered
position the range button sets the attenuation to 100X.
Use the 1,000X position for measurements up to a
maximum of 4,400 V
position for better signal resolution on connections
below 440 V CAT II.
RMS
Overrange Indicator. The overrange indicator lights red
if the voltage of the input signal exceeds the linear
operating range of the probe. When this happens, the
signal on the probe output does not accurately represent
the signal on the probe input.
between either input and
RMS
CAT II between the inputs
RMS
CAT II. Use the 100X
RMS
