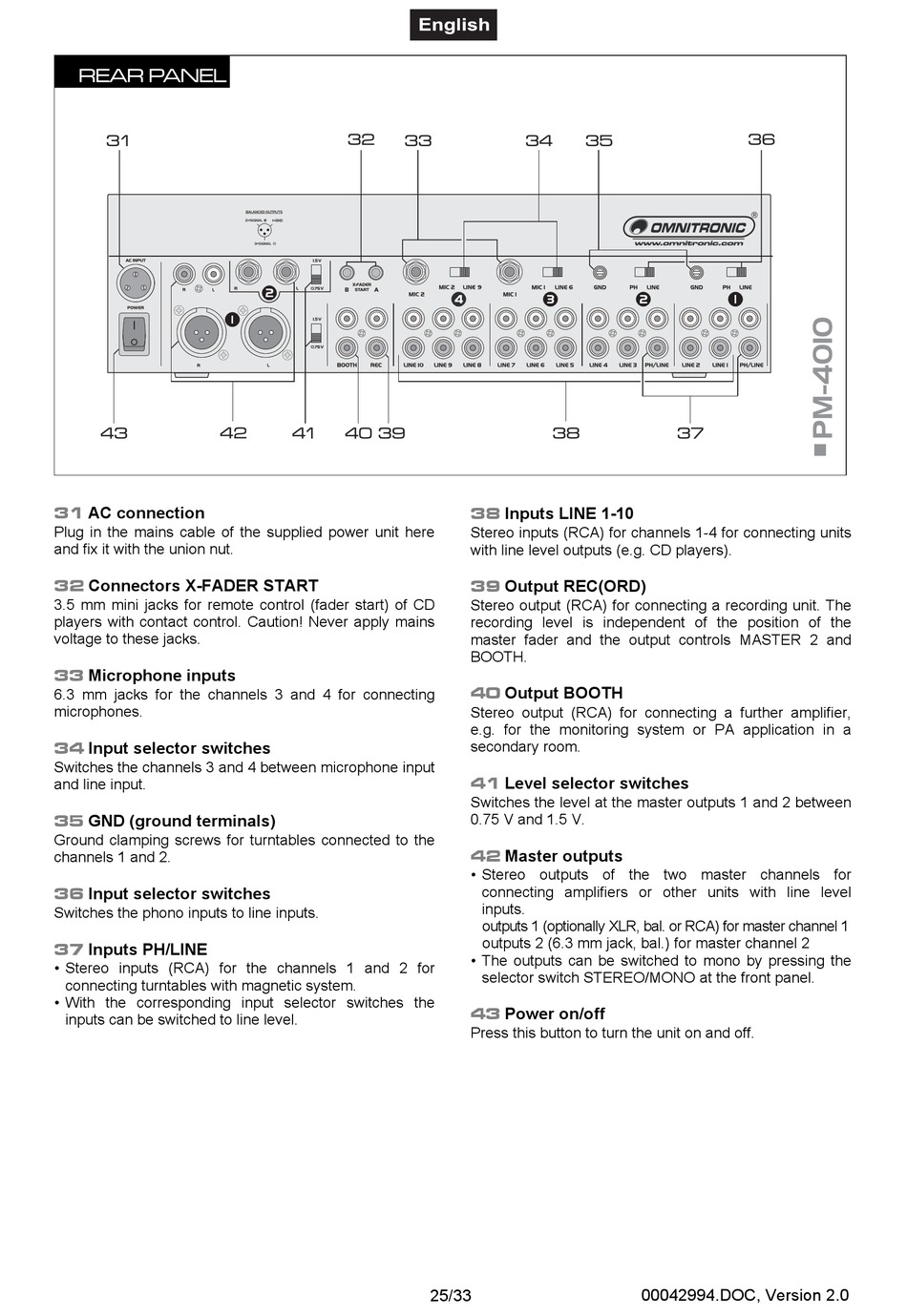

31 AC connection
Plug in the mains cable of the supplied power unit here
and fix it with the union nut.
32 Connectors X-FADER START
3.5 mm mini jacks for remote control (fader start) of CD
players with contact control. Caution! Never apply mains
voltage to these jacks.
33

Microphone inputs

6.3 mm jacks for the channels 3 and 4 for connecting
microphones.
34 Input selector switches
Switches the channels 3 and 4 between microphone input
and line input.
35 GND (ground terminals)
Ground clamping screws for turntables connected to the
channels 1 and 2.
36
Input selector switches
Switches the phono inputs to line inputs.
37 Inputs PH/LINE
• Stereo inputs (RCA) for the channels 1 and 2 for
connecting turntables with magnetic system.
• With the corresponding input selector switches the
inputs can be switched to line level.
38
Inputs LINE 1-10
Stereo inputs (RCA) for channels 1-4 for connecting units
with line level outputs (e.g. CD players).
39 Output REC(ORD)
Stereo output (RCA) for connecting a recording unit. The
recording level is independent of the position of the
master fader and the output controls MASTER 2 and
BOOTH.
40 Output BOOTH
Stereo output (RCA) for connecting a further amplifier,
e.g. for the monitoring system or PA application in a
secondary room.
41 Level selector switches
Switches the level at the master outputs 1 and 2 between
0.75 V and 1.5 V.
42 Master outputs
• Stereo outputs of the two master channels for
connecting amplifiers or other units with line level
inputs.
outputs 1 (optionally XLR, bal. or RCA) for master channel 1
outputs 2 (6.3 mm jack, bal.) for master channel 2
• The outputs can be switched to mono by pressing the
selector switch STEREO/MONO at the front panel.
43 Power on/off
Press this button to turn the unit on and off.
25/33 00042994.DOC, Version 2.0
