12

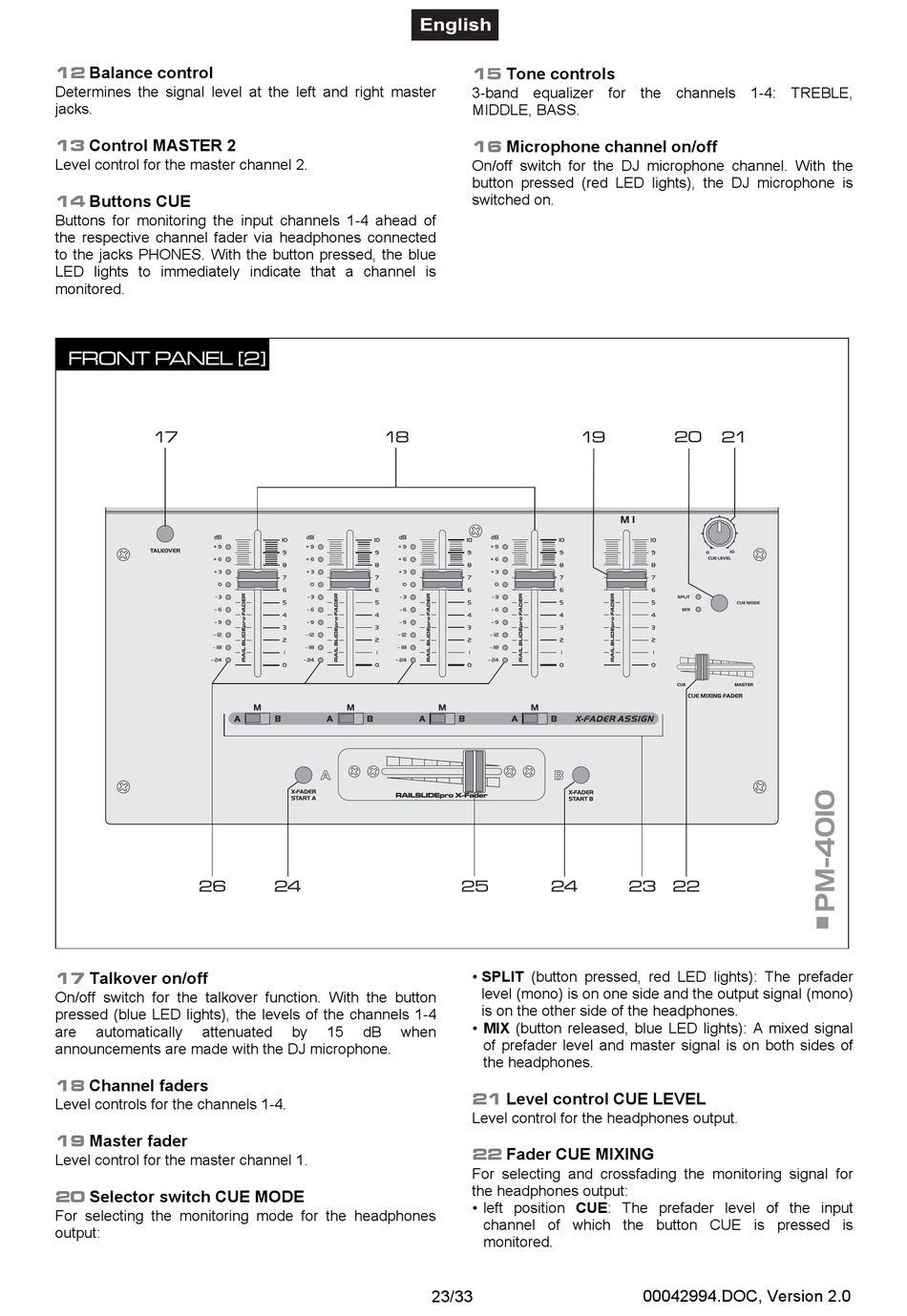

Balance control

Determines the signal level at the left and right master
jacks.
13 Control MASTER 2
Level control for the master channel 2.
14 Buttons CUE
Buttons for monitoring the input channels 1-4 ahead of
the respective channel fader via headphones connected
to the jacks PHONES. With the button pressed, the blue
LED lights to immediately indicate that a channel is
monitored.
17 Talkover on/off
On/off switch for the talkover function. With the button
pressed (blue LED lights), the levels of the channels 1-4
are automatically attenuated
announcements are made with the DJ microphone.
18 Channel faders
Level controls for the channels 1-4.
19 Master fader
Level control for the master channel 1.
20 Selector switch CUE MODE
For selecting the monitoring mode for the headphones
output:
by 15 dB when
23/33
15
Tone controls
3-band equalizer for the channels 1-4: TREBLE,
MIDDLE, BASS.
16 Microphone channel on/off
On/off switch for the DJ microphone channel. With the
button pressed (red LED lights), the DJ microphone is
switched on.
• SPLIT (button pressed, red LED lights): The prefader
level (mono) is on one side and the output signal (mono)
is on the other side of the headphones.
• MIX (button released, blue LED lights): A mixed signal
of prefader level and master signal is on both sides of
the headphones.
21 Level control CUE LEVEL
Level control for the headphones output.
22 Fader CUE MIXING
For selecting and crossfading the monitoring signal for
the headphones output:
• left position CUE: The prefader level of the input
channel of which the button CUE is pressed is
monitored.
00042994.DOC, Version 2.0
