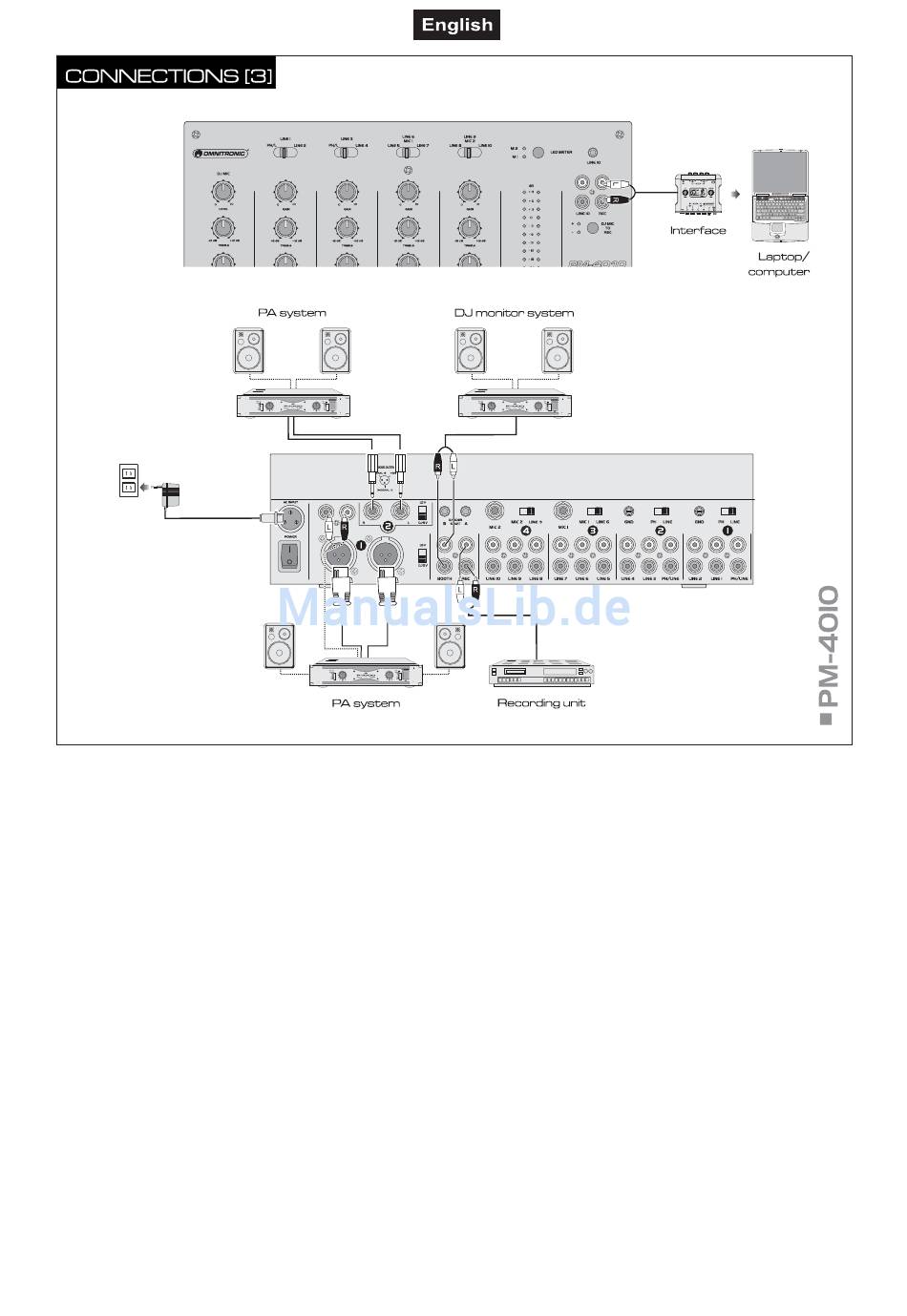

5 For connecting amplifiers, several stereo outputs with individual level controls are available:
• Connect the main amplifiers to the outputs MASTER 1 and MASTER 2, optionally to the balanced XLR
or unbalanced RCA (MASTER 1) or 6.3 mm output (MASTER 2).
• If a monitoring system is available, connect the amplifier of the monitoring system to the stereo output
BOOTH.
6 For analog sound recordings, connect the recording units to the outputs REC(ORD). The recording level
is independent of the position of the master fader and the output controls MASTER 2 and BOOTH. With
an audio interface such as the OMNITRONIC DDI 4x4 you can also digitize the analog output signal
of the PM-4010 and transfer it to a computer with USB 1.1 or 2.0 connection.
7 Connect the power supply unit to the AC input of the PM-4010 and the mains plug to a mains socket.
Use the unit only with the supplied power unit. Always disconnect the mains connector when you wish to
change connections, move the unit to a different place or if it is not used for a longer period.
