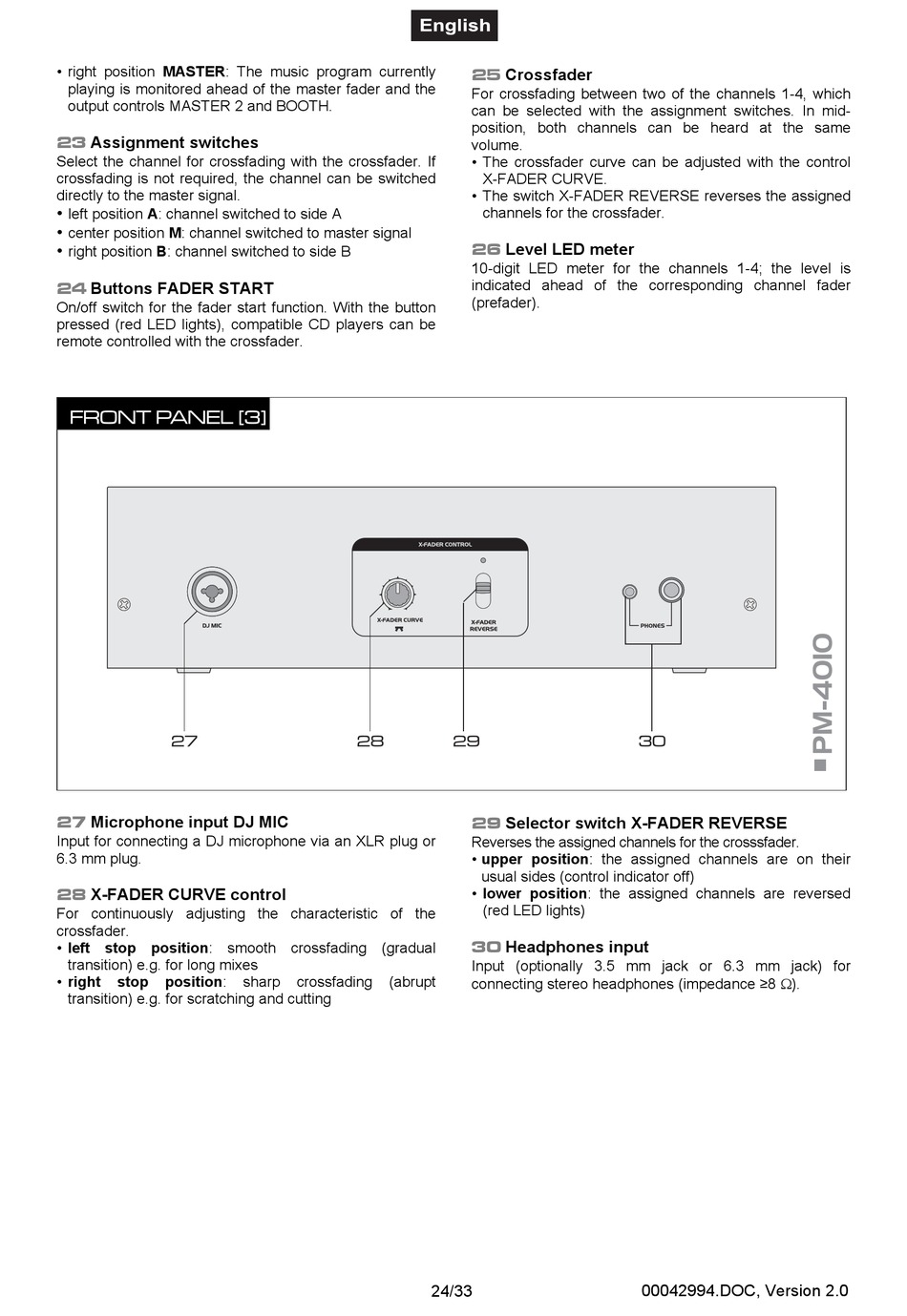

Omnitronic PM-4010 PRO DJ MIXER Bedienungsanleitung Seite 24

• right position MASTER: The music program currently
playing is monitored ahead of the master fader and the
output controls MASTER 2 and BOOTH.
23 Assignment switches
Select the channel for crossfading with the crossfader. If
crossfading is not required, the channel can be switched
directly to the master signal.
•
left position A: channel switched to side A
•
center position M: channel switched to master signal
•
right position B: channel switched to side B
24 Buttons FADER START
On/off switch for the fader start function. With the button
pressed (red LED lights), compatible CD players can be
remote controlled with the crossfader.
27 Microphone input DJ MIC
Input for connecting a DJ microphone via an XLR plug or
6.3 mm plug.
28 X-FADER CURVE control
For continuously adjusting the characteristic of the
crossfader.
• left stop position: smooth crossfading (gradual
transition) e.g. for long mixes
• right stop position:
transition) e.g. for scratching and cutting
sharp crossfading (abrupt
25 Crossfader
For crossfading between two of the channels 1-4, which
can be selected with the assignment switches. In mid-
position, both channels can be heard at the same
volume.
• The crossfader curve can be adjusted with the control
X-FADER CURVE.
• The switch X-FADER REVERSE reverses the assigned
channels for the crossfader.
26 Level LED meter
10-digit LED meter for the channels 1-4; the level is
indicated ahead of the corresponding channel fader
(prefader).
29
Selector switch X-FADER REVERSE
Reverses the assigned channels for the crosssfader.
• upper position: the assigned channels are on their
usual sides (control indicator off)
• lower position: the assigned channels are reversed
(red LED lights)
30 Headphones input
Input (optionally 3.5 mm jack or 6.3 mm jack) for
connecting stereo headphones (impedance ≥8 Ω).
