5 INSTALLATION

The PM-4010 can be used as a table top unit or it can be installed into a console. Please make sure that
there is enough space around the unit for ventilation to improve heat radiation. Steady overheating will
damage the unit.
Switch off the mixer prior to connecting any units or to changing any existing connections.

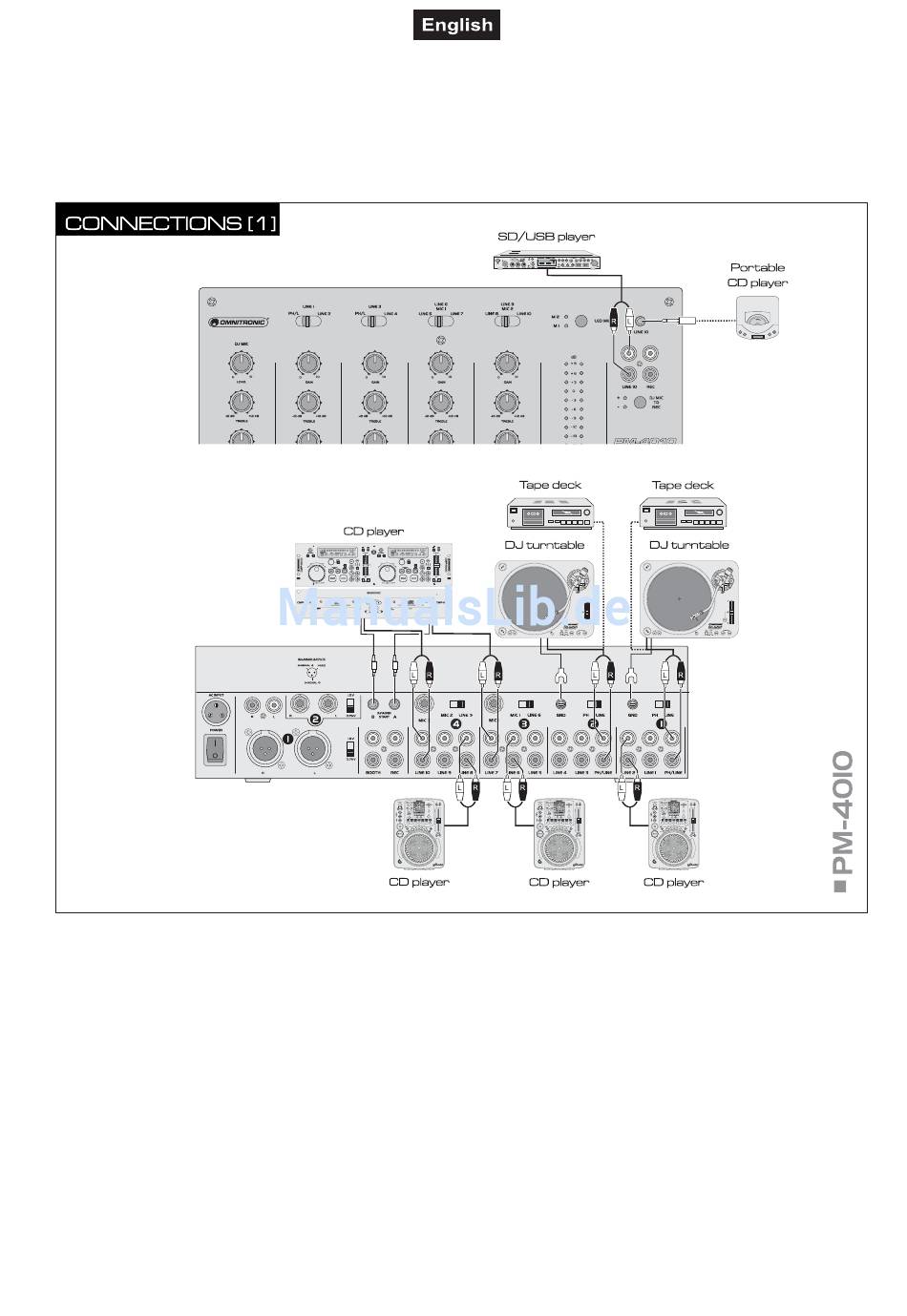

1 Connect the stereo audio sources to the corresponding RCA jacks of channels 1-4 (white jack = left; red
jack = right):
• Connect units with line level output (e.g. CD players) to the jacks LINE.
• Connect turntables with magnetic system to the jacks PH/LINE.
• If your turntable is equipped with a separate ground lead, connect it to the corresponding clamping
screw GND.
CD players with contact control can be remote controlled with the crossfader of the PM-4010 (fader
2
start function). Connect each unit to the corresponding 3.5 mm jack X-FADER START of the mixer.
