Installation
Installation may only take place in normal commercial
switch boxes (device boxes) in accordance with DIN
49073-1.
The device may only be operated with adapters and
an associated, fitted switch cover.
6.1 Installing the HomeMatic flush-mounted
remote control
Permitted cable cross sections for connecting to the
flush-mounted remote control are:
rigid cable [mm 2 ] flexible cable with/without ferrule
[mm 2
0.75 – 1.50 0.75 – 1.50
Before installation, please note the serial
number on the device (10 digits, beneath bar
code) and the exact installation location so
that you can set up the device later via the
user interface of the HomeMatic Central
Control Unit.
48
]

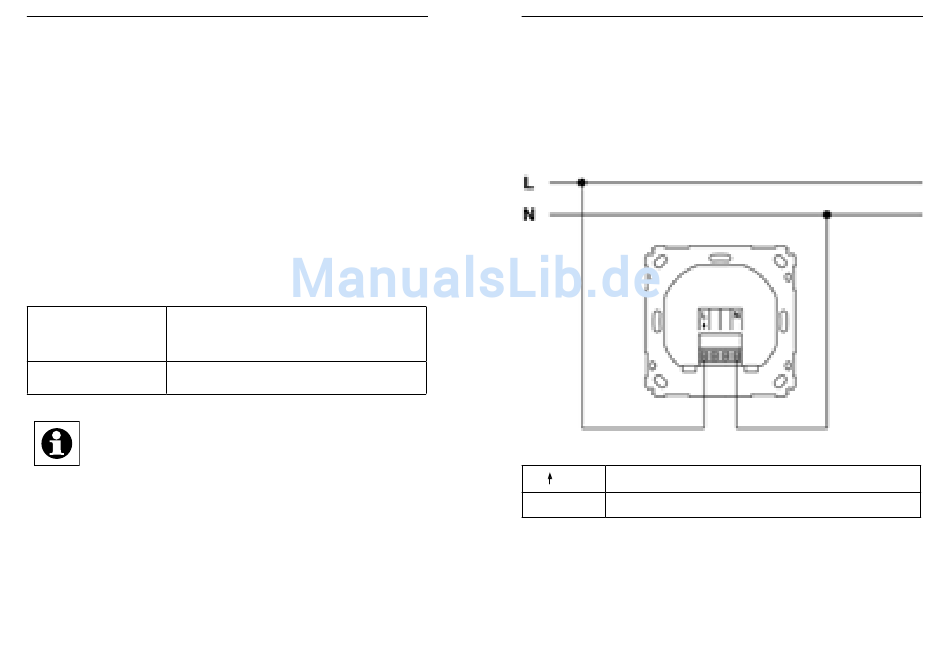

Connection
The installation steps must be carried out in accord-
ance with the following circuit. Please observe the
hazard information in section "2 Hazard information"
on page 38 when doing this.
L Phase conductor connection
N Neutral conductor connection
Installation
49
