Fuse Replacement; Scope Of Supply; Replacement Parts / Accessories - E+E Elektronik EE23 Series Anleitung

•
LONG RESPONSE TIME
- filter cap polluted
- wrong filter type
•
INSTRUMENT BREAKDOWN
- no supply voltage
•
HUMIDITY VALUES TOO HIGH
- permanent condensation on the sensor head
- wrong filter type
Service stations: refer to back cover side

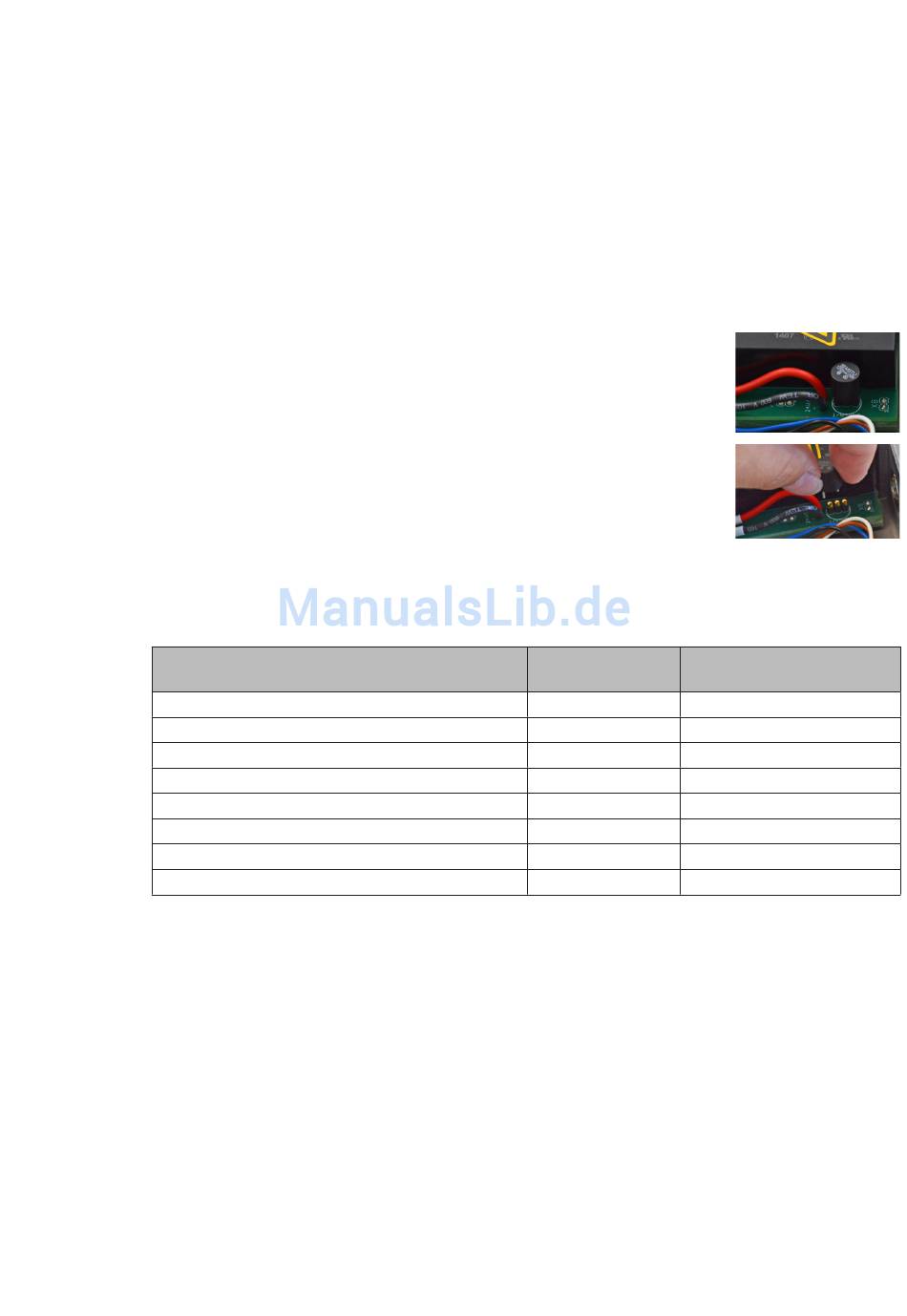

Fuse replacement for option V01:
If the green LED on the PCB is not flashing with the supply voltage
switched on, check the fuse and replace if required.
Fuse secondary:
Nominal voltage:
Replacement types:
Series: MSTU 250
Series: 374

SCOPE OF SUPPLY

EE23 according to ordering guide
Manual EE23
EE-PCA configuration software
Inspection certificate according to DIN EN 10204
Allen key 3.0
Mating plug for integrated power supply
Mating plug RKC 5/7
M16 cable gland metal

REPLACEMENT PARTS / ACCESSORIES:

Name
bracket for installation onto mounting rails:
external power supply unit:
replacement sensor:
mounting flange 12mm:
mounting flange 5mm
250mA / T UL248-14
250V
Manufacturer: Schurter
Manufacturer: Littelfuse
order code
HA010203
V02
FE09
HA010201
HA010208
(for model H only)
22
⇒
change filter cap
⇒
adjust filter type to application
⇒
check the connection line and voltage supply
⇒
dry sensor probe and check the mounting
manner of the transmitter
⇒
adjust filter type to application
Order No.: 0034.7109
Order No.: 374 0250
Included in
all versions
x
x
x
x
Name
drip water protection:
radiation shield:
filter caps
display + cover in metal
display + cover in PC
calibration set
1% calibration
According to
ordering guide
only for metal housing
V01
V01 / C03
except C03, V01
order code
HA010503
HA010504
HA0101xx
D03M
D03P
HA0104xx
EE90/3H
