PRODUCT DESRCRIPTION
The EE23 transmitter series stands for multifunctionality, highest accuracy, easy mounting and service.
The construction of the transmitter enables easy installation and the possibility for fast exchange of the
sensor unit for service purposes.
The EE23 can be employed in all common applications by choosing the appropriate housing
combination.
•
A and B versions versions are designed for wall or duct mounting.
•
C / H versions with remote sensing probe
Various options extend the large number of applications.

OPERATING ELEMENTS

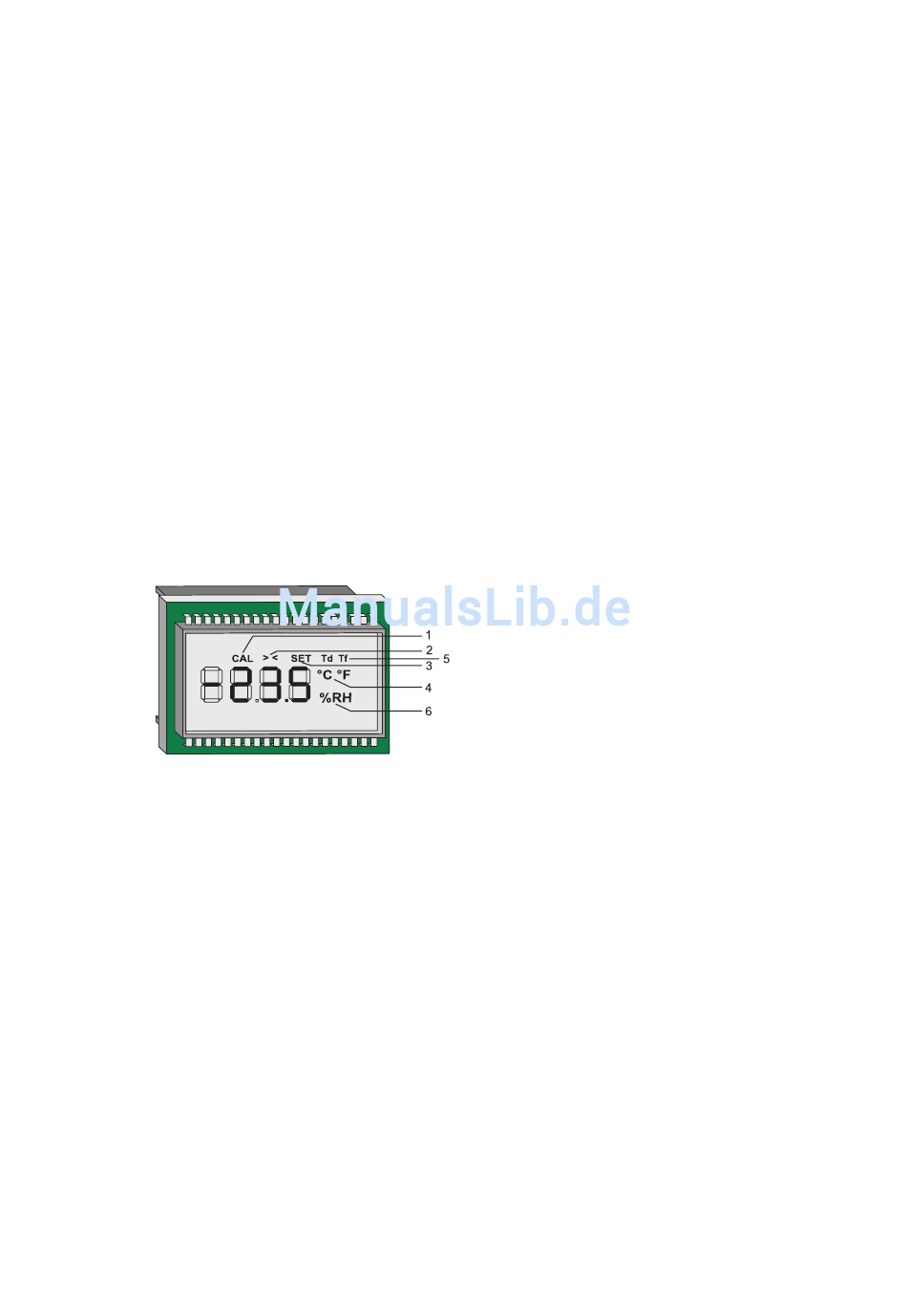

Display

1. CAL: is indicated during the calibration procedure
2. >: is indicated when pushing button S1 (refer to "Opterating elements - Circuit board")
is indicated when overstepping the threshold (model EE23 with alarm module only)
<: is indicated when pushing button S2 (refer to "Opterating elements - Circuit board")
is indicated when dropping below the threshold (model EE23 with alarm module only )
3. SET: indication for EE23 with optional alarm output
4. °C / °F: unit for temperature °C / °F
5. Td / Tf. Td = dew point temperature °C / °F
Tf = frost point temperature °C / °F
6. %RH : unit for relative humidity (%RH)
