Electrical connections

Connection configuration of bottom part of the housing with plug connections
8...35V DC / 12...30V AC (option C03/C07)
plug for supply and
analogue output
(front view)
Model C, model H (seperated sensor probe)
For mounting template for metal and polycarbonate housing see page 17.
Transmitter EE23-xCx and EE23-xHx series are with seperated sensor probe.
working range sensor probe:
working range electronics:

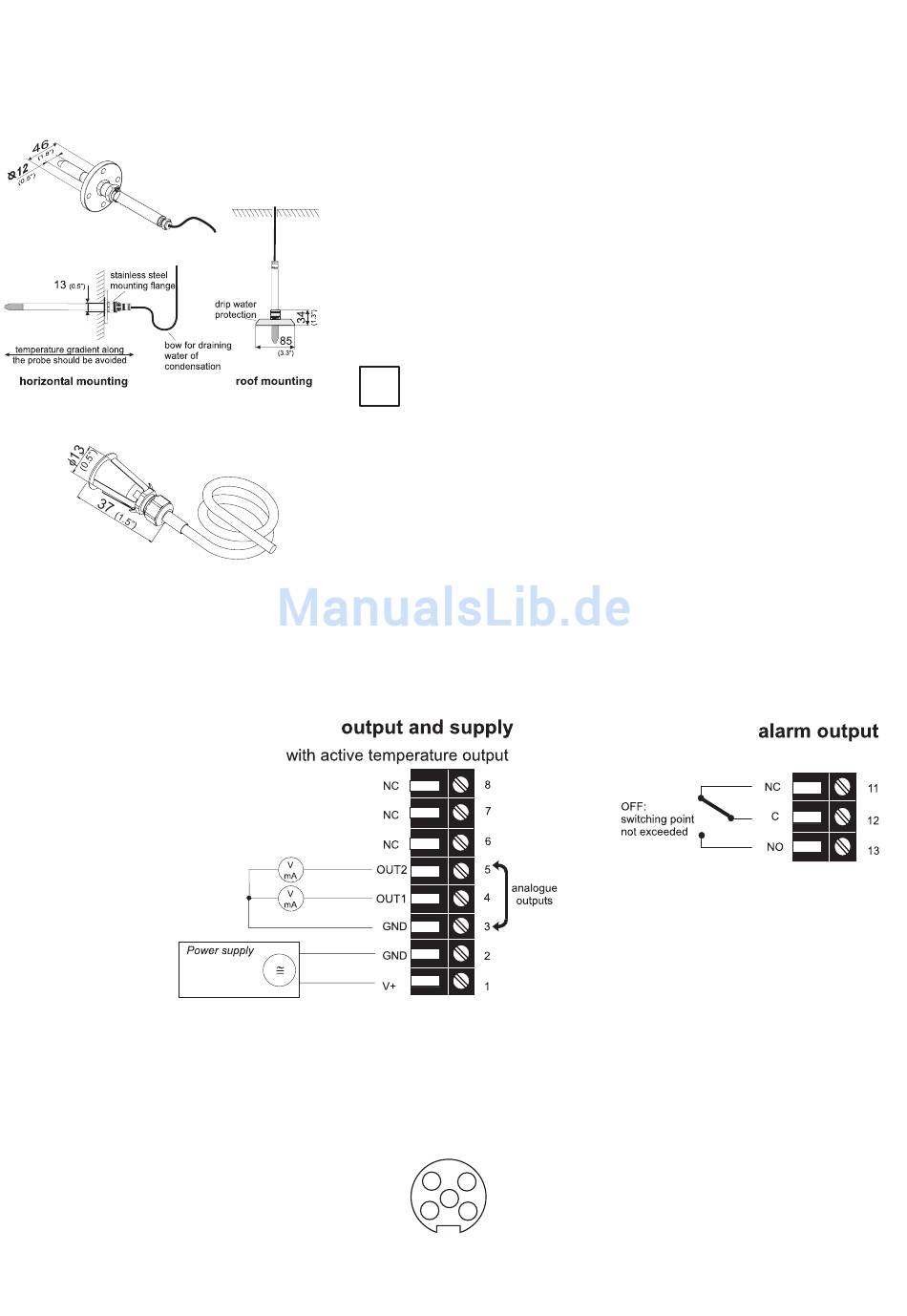

Mounting of the sensor probe - model C (12mm):
Using the stainless steel mounting flange (refer to accessories) it is pos-
sible to mount the probe on the outer wall of the measuring chamber.
The depth of immersion is adjustable.
For roof installations use the drip water protection (refer to accessories)
to protect the sensor head and elements against condensed water.
i
The transmitter probe must point horizontal or downwards. The
cable should hang loosely (bend for draining water of condensation).
Mounting of the sensing probe - model H (5mm):
Incl. mounting fixture for concealed mounting or in tight spaces
(e.g. in museums, door frame, etc...).
bore diameter: 13mm
(0.5")
material thickness: min. 3mm
4
3
5
2
1
Euro-Standard
18
model C: -40...120°C
model H: -40...80°C
-40...60°C
(0.1")
Description: Connection assignment:
V+
GND
GND
OUT1
OUT2
(-40...248°F)
(-40...176°F)
(-40...140°F)
5
4
3
2
1
