Start-up

Before switching on, be sure to check that the camp site has
adequate power supply fusing (230 V / min. 3 A).
In order to prevent the power cable of the recreational vehi-
cle from overheating (minimum cross-section 3 x 2.5 mm²)
the cable drum must be fully unwound.
The remote control must always be pointed at the infra-red re-
ceiver in order to perform the individual switching commands.
Before switching on for the first time, the remote control must
be tuned to the IR receiver.
– Insert batteries (pay attention to polarity)
– Setup symbol flashes
(if symbol does not flash, perform Reset)
– Point remote control at IR receiver
– Press Setup button and hold down
– When red LED on the IR receiver flashes, release
Setup button.
The remote control is tuned to the IR receiver, the Setup
symbol goes off and the air conditioning system starts in
circulated air mode, at low fan level and with no timer set.

Switching on

Switch on the air conditioning system using the "On / Off
switch" of the remote control. The previous settings are
taken over.
The circulated air fan runs after switching on. The com-
pressor switches itself on after no more than 3 minutes,
and the green LED (cooling) flashes.

Temperature

If necessary, use the "Temperature selection buttons" to
set the required room temperature with "+" and "–".

Mode

Select the required operating mode by pressing the "MODE"
button one or more times.
– Cooling
– Circulated air
When the room temperature that was selected using the
remote control is reached in cooling mode, the compres-
sor switches off and the green LED in the IR receiver goes
off. The circulated air fan continues to run in order to provide
ventilation. If the room temperature setting is exceeded, the
device automatically reverts to cooling mode.
In circulated air mode, the interior air is recirculated and
cleaned by the filters. No LED's illuminate in the IR receiver.

Fan

Select the required fan level by pressing the "Fan level" but-
ton one or more times.
Fan level
– low
– medium
– high

Sleep function

In "sleep function" (cooling mode only) the fan operates at
slow speed and therefore extremely quietly.

Switching off

To switch off, press the "On / Off switch" on the remote
control. The remote control and the device are switched off.
If the air conditioning system is switched on again, the
green LED flashes. The circulated air fan runs, and the
compressor switches on after no more than 3 minutes.

Time

Press "Time selection button" (time flashes) and set cur-
rent time using the "Time setting" buttons.
The time always appears on the display.
The time always has to be reset after a battery change, a time
change or synchronisation with the remote control and the
IR receiver.

Timer OFF

The switch-off time of the air conditioning system can be set in
advance for a minimum of 15 minutes to a maximum of 24 hours,
starting from the current time, using the integrated timer.
The device must be switched on using the remote control in
order to program it.
Set required operating mode and room temperature.
Then select TIMER OFF. Set the required Off time using the
"Time setting" buttons (15 minutes to 24 hours) and con-
firm with TIMER OFF.
Pressing the Timer OFF button again deactivates the timer
function.
The air conditioning system must be switched on for
the programming to be active. The remote control can be
switched off by covering the infrared transmitter on the front
of the remote control. This prevents the air conditioning sys-
tem from being accidentally switched off and/or the switch-
off time from being re-programmed.

Reset

Resets the settings of the remote control to the factory set-
tings when pressed using a ballpoint pen, for example. Setup
symbol flashes. The remote control settings are set to "Circu-
lated air", fan level low, no timer set.

Resend

The previous settings are resent.

Setup

Tune the remote control to the air conditioning system that is
going to be operated. Settings set to "Circulated air", fan level
low, no timer set.

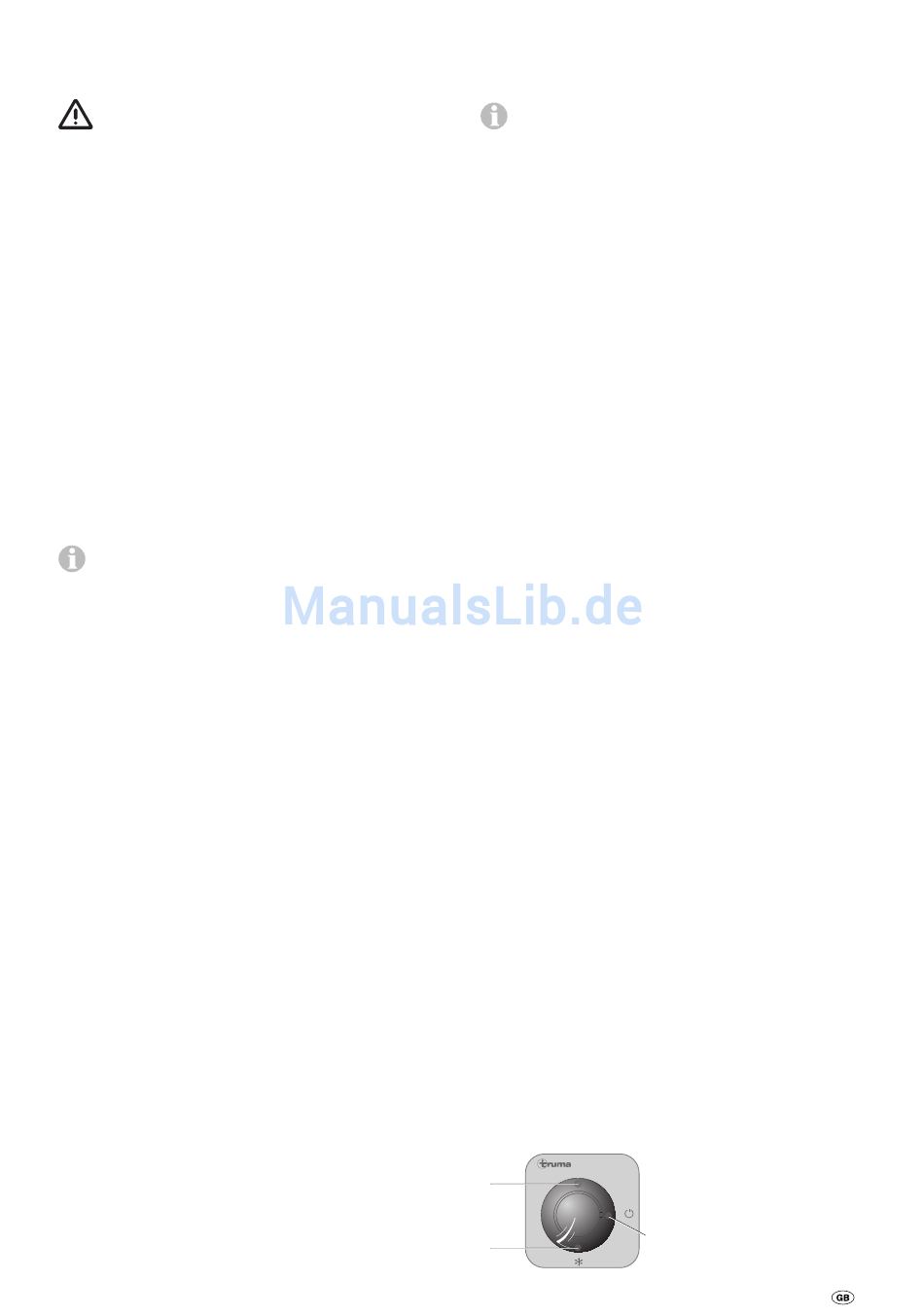

IR receiver and manual on / off

There is an additional pushbutton on the receiver (m), with
which the unit can also be switched on and off without the
remote control (e.g. with a ballpoint pen).
Saphir compact
LED 2
m
LED 1
Fig. 3
If the unit is switched on using
this pushbutton, the system
is automatically reset to the
factory settings (cooling, fan
level high, TEMP. 21 °C).
17
