OPERATING INSTRUCTIONS
Fitting suggestion:
Insert into the fitting hole and fasten to the sauna wall using the 4 screws supplied.

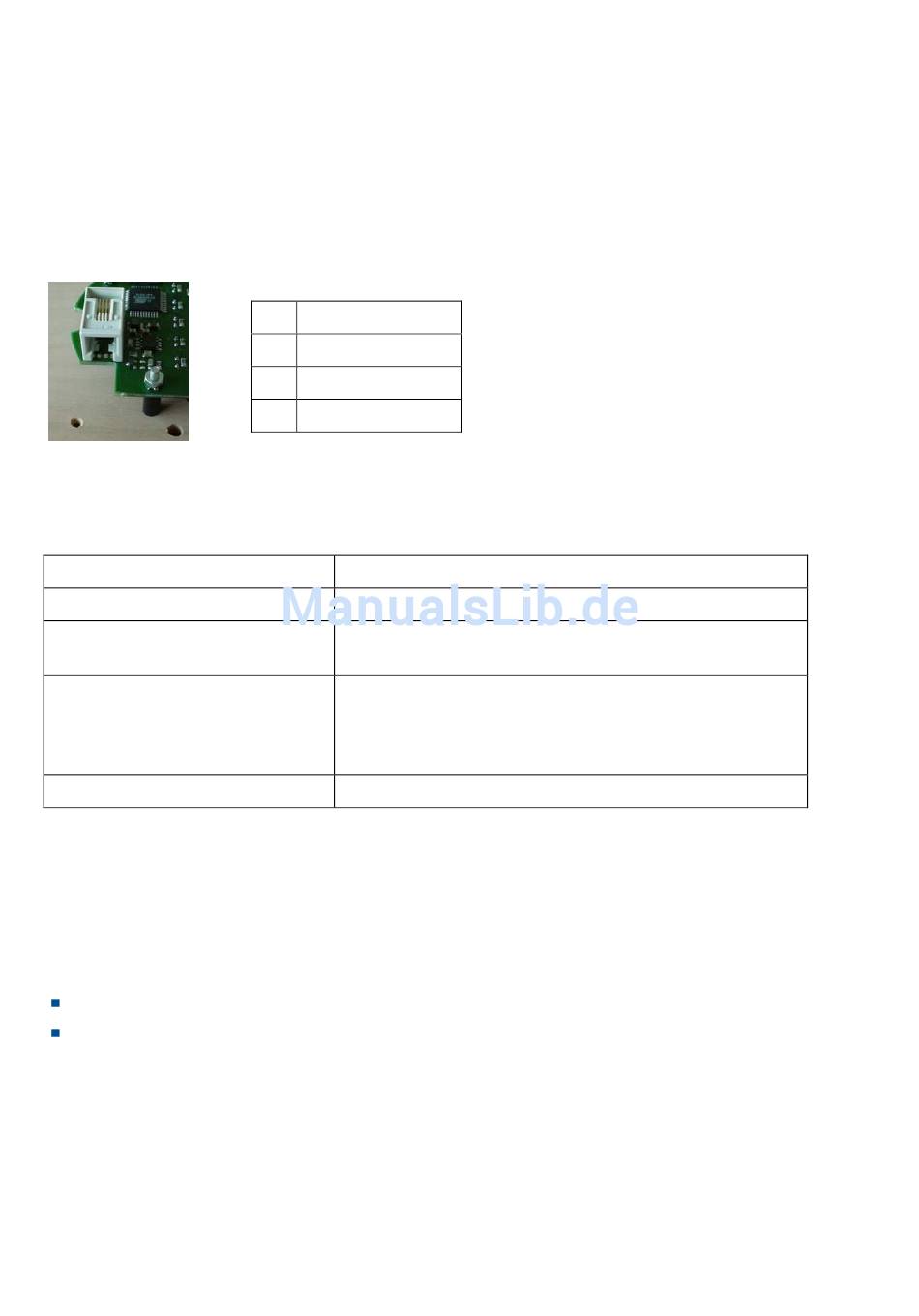

4.3.0 PLUG DESCRIPTION

Plug in modular Jack 4/4 (supply and communication) until you hear it click

4.4.0 TECHNICAL DATA CONTROL ELEMENT

Connection:
Power consumption:
Ambient conditions:
Housing:
Mounting:

5.0.0 LED POWER ELEMENT (ASFA22)

5.1.0 MODULE DESCRIPTION

Das LED Power element is made up of the following components:
ASFA22 board
Data cable to the wave.com4 or to other ASFA22 boards
WE DO IT FIRST.
1 +5V=
2 CAN+
3 CAN-
4 Earth
4-pin with supply and communication lines (3m)
5V= / <100 mA normal operation (<0.5 W)
0° C – 110° C, max. 99 % rel. hum idity, non-
condensing!
Flush-mounted box; board; optical fibre for display;
wooden front with temperature-resistant foil. Board
over M2.5 bolt on wooden front; rear with flush-
mounted box
Fasten to the sauna wall with the screws supplied
36/52
