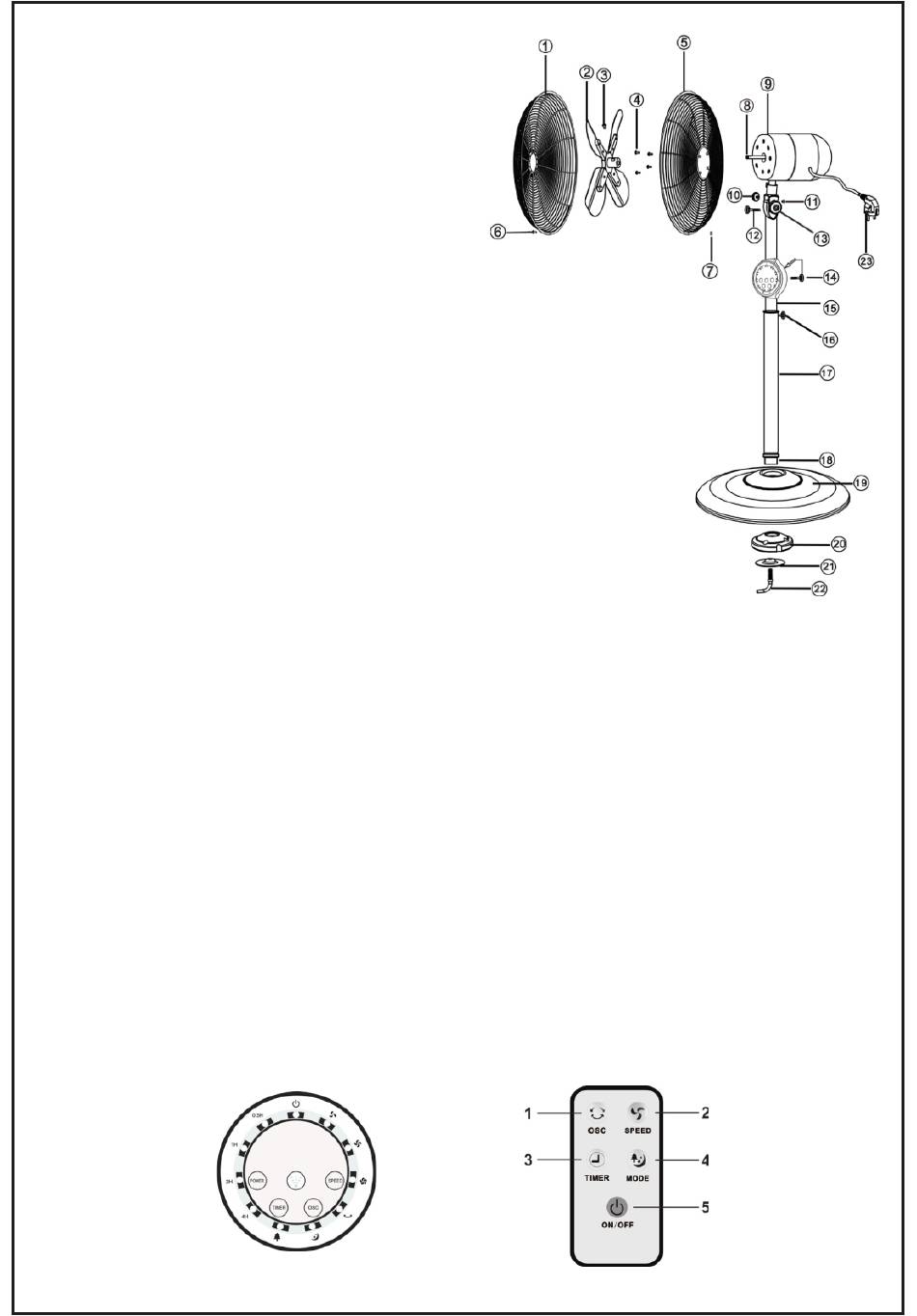

PARTS LIST

1. Front Grill
2. Blades
3. Blades Screw
4. Grill fixed Screw
5. Rear Grill
6. Grill Lock Screw
7. Grill Lock Nut
8. Motor Shaft
9. Motor Cover
10. Holder Lock Nut
11. Holder Screw
12. Holder Nut
13. Holder Lock Nut
14. Control Panel & Nut
15. Support 1
16. Support Fixed Nut
17. Support 2
18. Support Fixed Connector
19. Base
20. Bob-Weight
21. Gasket
22. Base Lock Nut
23. Power Plug
ASSEMBLING THE FAN
1. Insert the main support 2 (17) into the base (19), and tight up by the base
lock nut (22).
2. Insert motor on the support 1 (15), and tight up by (10), (11), (12), (13).
3. Insert the control panel (14) on the support 1 (15), and tight up by nut.
4. Insert the real grill (5), on the motor cover (9), and tight up by grill fixed
screw (4).
5. Put the blade (2) on the motor shaft (8), and tight up by blade screw (4).
6. Insert the front grill (1) to match the rear grill (5), and tight up by grill lock
screw (6) and grill lock nut (7).
Control Panel Remote Control
3
