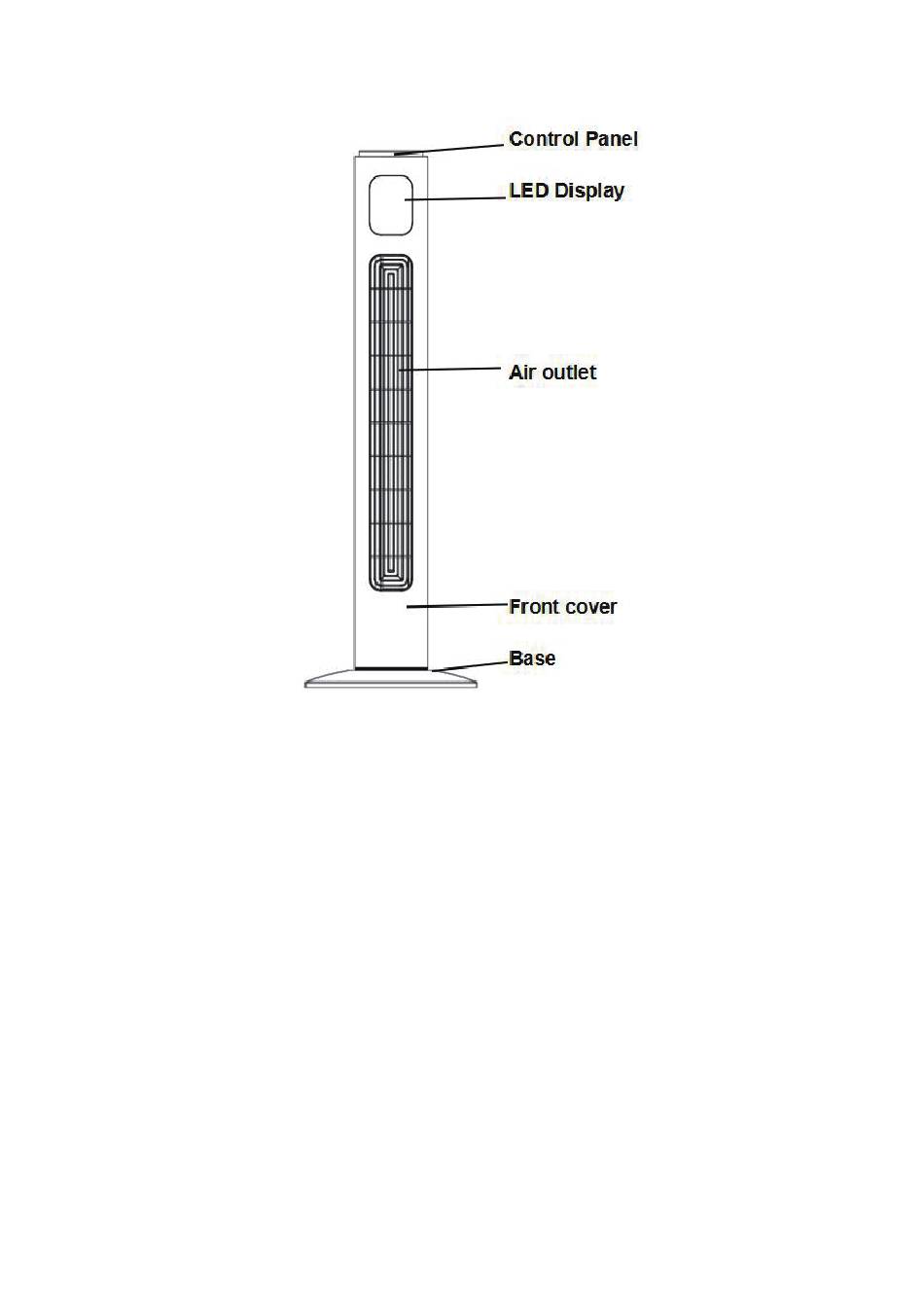

PARTS NAME

ASSEMBLY
The base of the tower fan comes in two parts, which fit around the
oscillation base. Both parts fit easily together. The back half is the one
with cut-outs for the power supply cord.
1. First attach the front half of the base, aligning the holes in base with
the screw holes in the oscillation base, and leading the power cord
through the centre hole.
2. Then snap the back half of the base to the front half and secure with
the four screws (supplied)
