Keep the fan clean and maintain in good condition (use an authorized service agent).
•
Use recommended parts only (non genuine parts may be dangerous, and will invalidate
•
your warranty).
When not in use store in a safe, dry, childproof location.
•
WARNING
: To avoid danger of electric shock, unplug from outlet when not in use and
•
before cleaning.

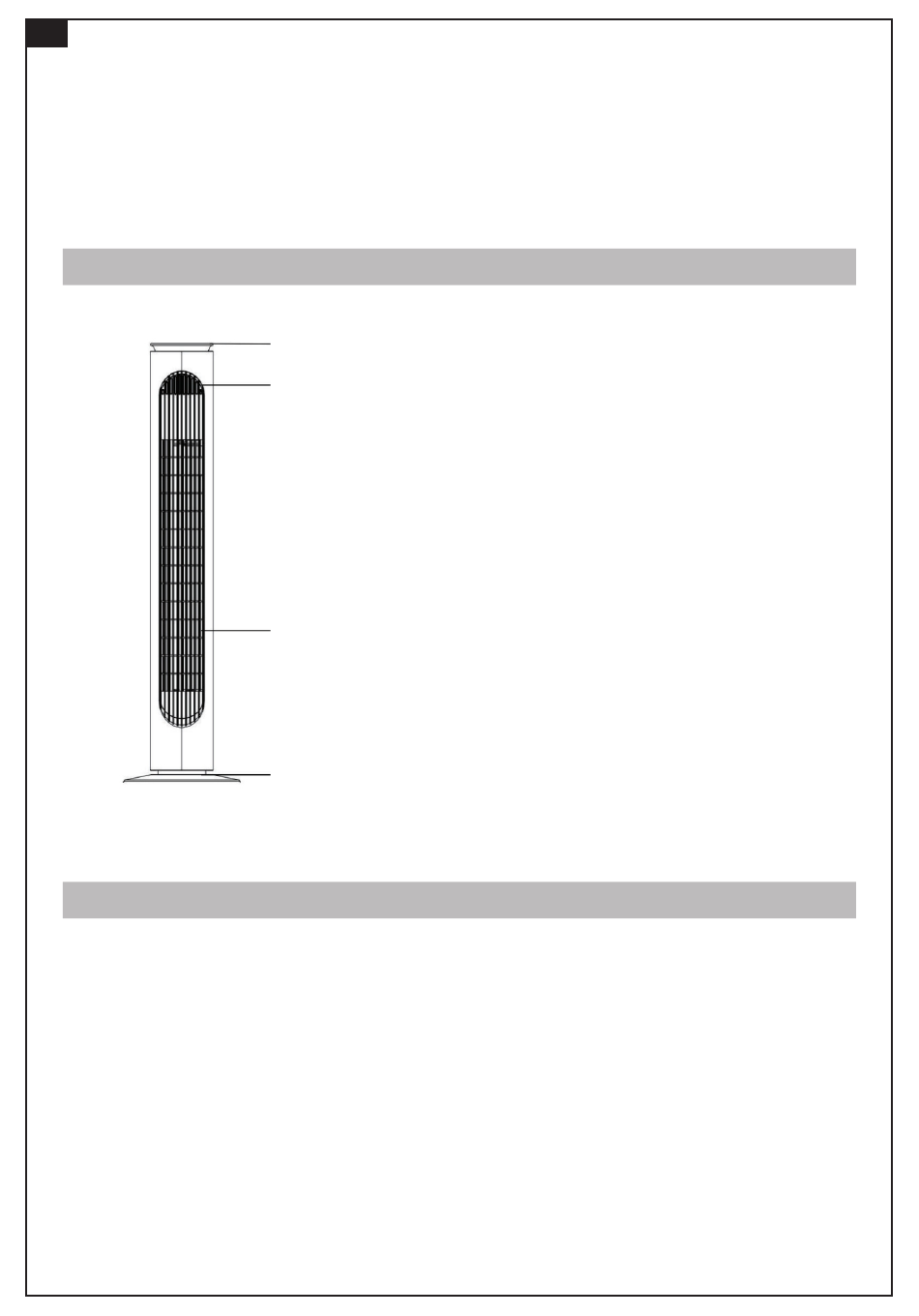

PARTS NAME

FAN BASE ASSEMBLY
The base of the tower fan comes in two parts, which fit around the oscillation base.
Both parts fit easily together.
1. First attach the front half of the base, aligning the holes in base with the screw
holes in the oscillation base, and leading the power cord up the base.
2.Then snap the back half of the base to the front half and secure with the plastic
screw nut (supplied),wise it clockwise. (Figure1)
Control panel
Display Panel
Air outlet
Base
