Installation instructions, only for experts

7. Connection diagram

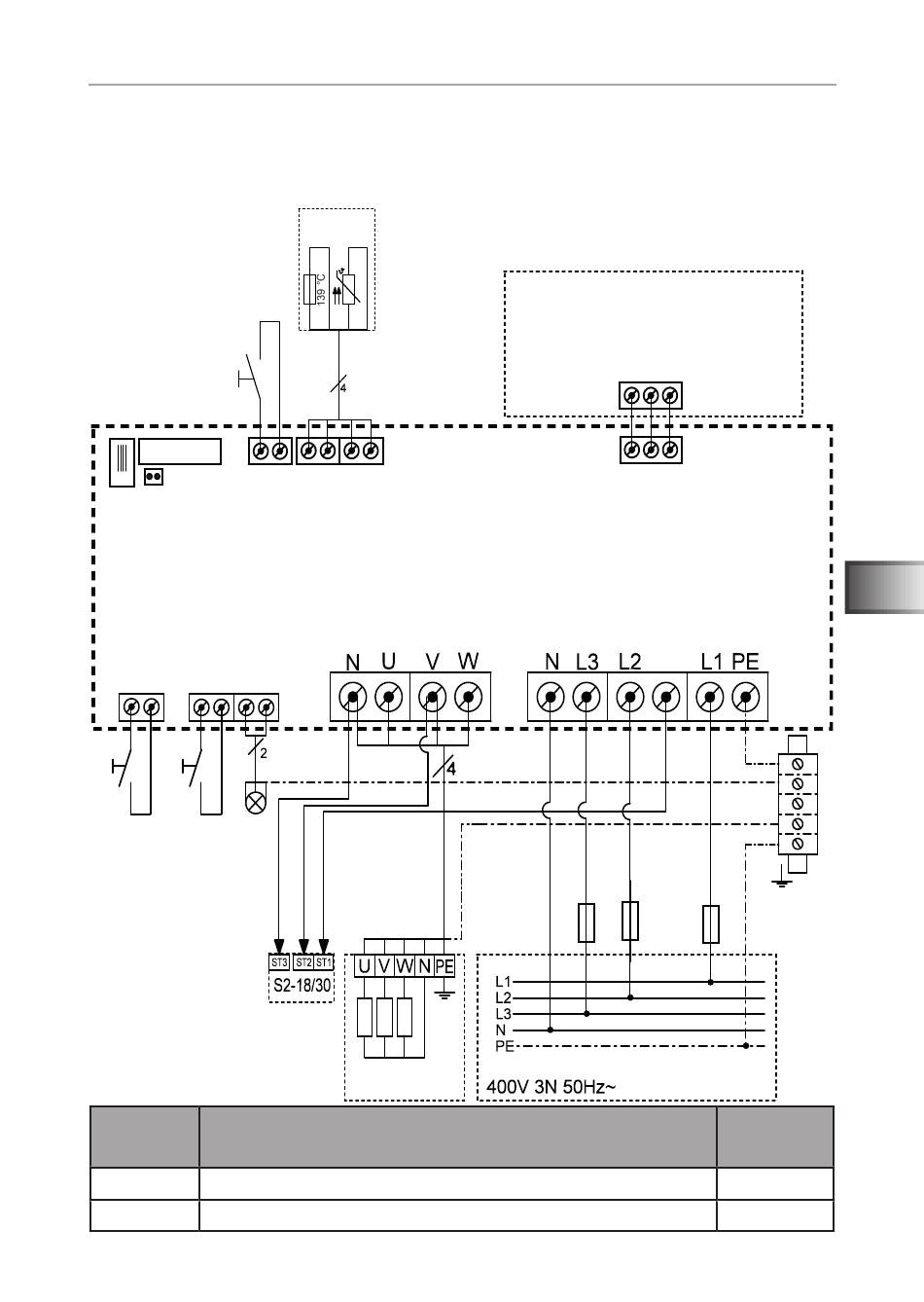

7.1. Connection diagram of basic module

4
1 2
WC4-H-PCB
Remote
start
RJ10 Jumper
FTS2
3
L
N s N Lis N Li
M
E C B
Fig. 5:
Connection diagram
for the basic module
Power supply cable
Heater
[kW] Heater supply cable (temperature-resistant up to 150 °C)
0 - 6,9 5 x 1,5 mm²
< 6,9 - 11 5 x 2,5 mm²
5
STB F1
R-R W-W
A
9
6
WC4-H-PCB (optional)
ge/gn - bl - br
St1
p. 23/38
EN
7
8
Fuse
[A]
3 x 10
3 x 16
