Installation instructions, only for experts

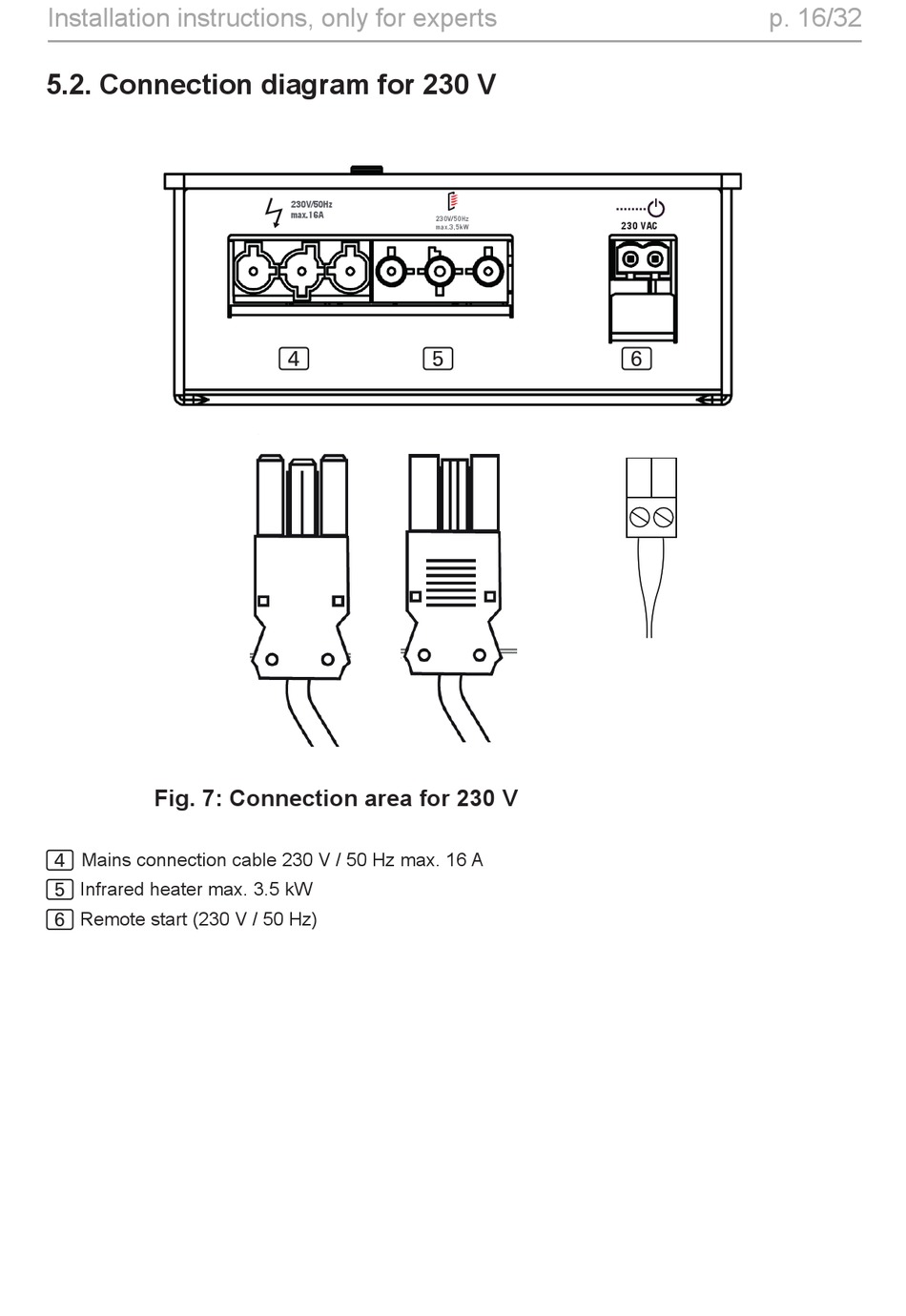

5.2. Connection diagram for 230 V

Fig. 7: Connection area for 230 V
Mains connection cable 230 V / 50 Hz max. 16 A
4
Infrared heater max. 3.5 kW
5
Remote start (230 V / 50 Hz)
6
230V/50Hz
max.16A
230V/50Hz
max.3,5kW
4 5
p. 16/32
230 VAC
6
