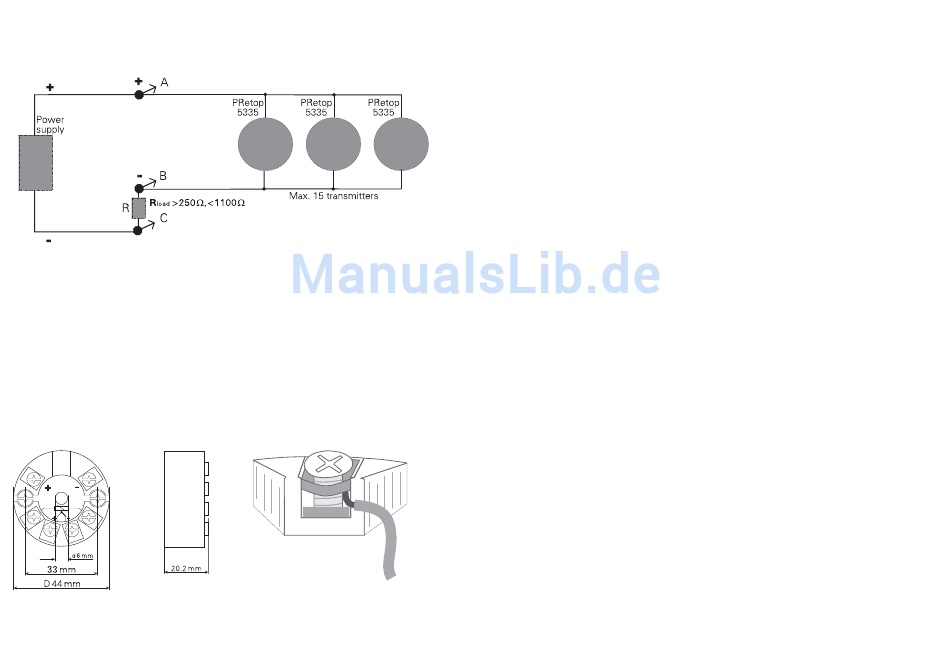

Connection of transmitters in multidrop mode:

®
The HART communicator or a PC modem can be connected accross AB or
BC.
The outputs of max. 15 transmitters can be connected in parallel for a digital
®
HART communication on 2-wires.
Before it is connected, each transmitter must be configured with a unique number
from 1 to 15. If 2 transmitters are configured with the same number, both will
be excluded. The transmitters must be programmed for multidrop mode (with a
fixed output signal of 4 mA). Maximum current in the loop is therefore 60 mA.
The communication is either by means of a HART
modem.
The PReset PC configuration software can configure the individual transmitter
for multidrop mode and provide it with a unique polling address.
Mechanical specifications:
32 32
®
communicator or a HART
Mounting of sensor wires
Wires must be mounted between the metal
plates.
TRANSMETTEUR 2-FILS
AVEC PROTOCOLE HART
Consignes de sécurité ....................................................... 34
Declaration de conformité CE ............................................ 36
Application ......................................................................... 37
Caractéristiques techniques .............................................. 37
Montage / installation ......................................................... 37
Applications ........................................................................ 38
Référence ........................................................................... 39
Spécifications électriques .................................................. 39
Connexions ........................................................................ 46
Raccordement des transmetteurs en multi-adressage ...... 48
®
Dimensions mécaniques .................................................... 48
Montage des fils du capteur .............................................. 48
Appendix:
FM Installation Drawing No. 5300Q502 ............................. 66
CSA Installation Drawing No. 533XQC03 .......................... 68
®
PRetop 5335
SOMMAIRE
33 33
