MS 4101

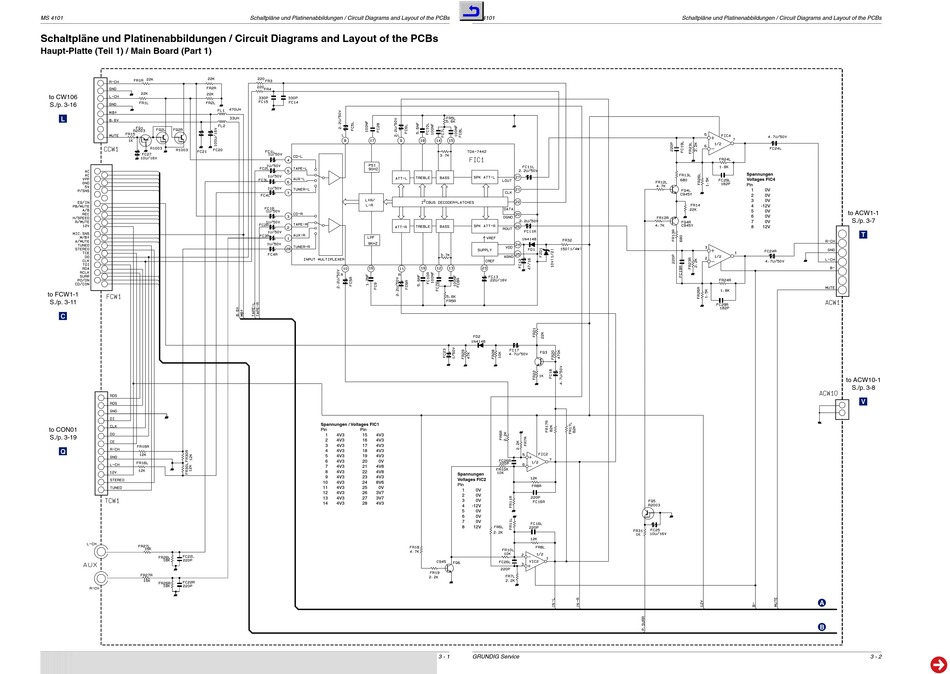

Schaltpläne und Platinenabbildungen / Circuit Diagrams and Layout of the PCBs
Haupt-Platte (Teil 1) / Main Board (Part 1)
to CW106
S./p. 3-16
L
to FCW1-1
S./p. 3-11
C
to CON01
S./p. 3-19
Q
GRUNDIG Service
Schaltpläne und Platinenabbildungen / Circuit Diagrams and Layout of the PCBs
Spannungen / Voltages FIC1
Pin Pin
1 4V3 15 4V3
2 4V3 16 4V3
3 4V3 17 4V3
4 4V3 18 4V3
5 4V3 19 4V3
6 4V3 20 0V
7 4V3 21 4V8
8 4V3 22 4V8
9 4V3 23 4V3
10 4V3 24 8V6
11 4V3 25 0V
12 4V3 26 3V7
13 4V3 27 3V7
14 4V3 28 4V3
MS 4101
Spannungen
Voltages FIC2
Pin
1 0V
2 0V
3 0V
4 -12V
5 0V
6 0V
7 0V
8 12V
3 - 1 GRUNDIG Service
Schaltpläne und Platinenabbildungen / Circuit Diagrams and Layout of the PCBs
Spannungen
Voltages FIC4
Pin
1 0V
2 0V
3 0V
4 -12V
5 0V
to ACW1-1
6 0V
S./p. 3-7
7 0V
8 12V
T
to ACW10-1
S./p. 3-8
V
A
B
3 - 2
