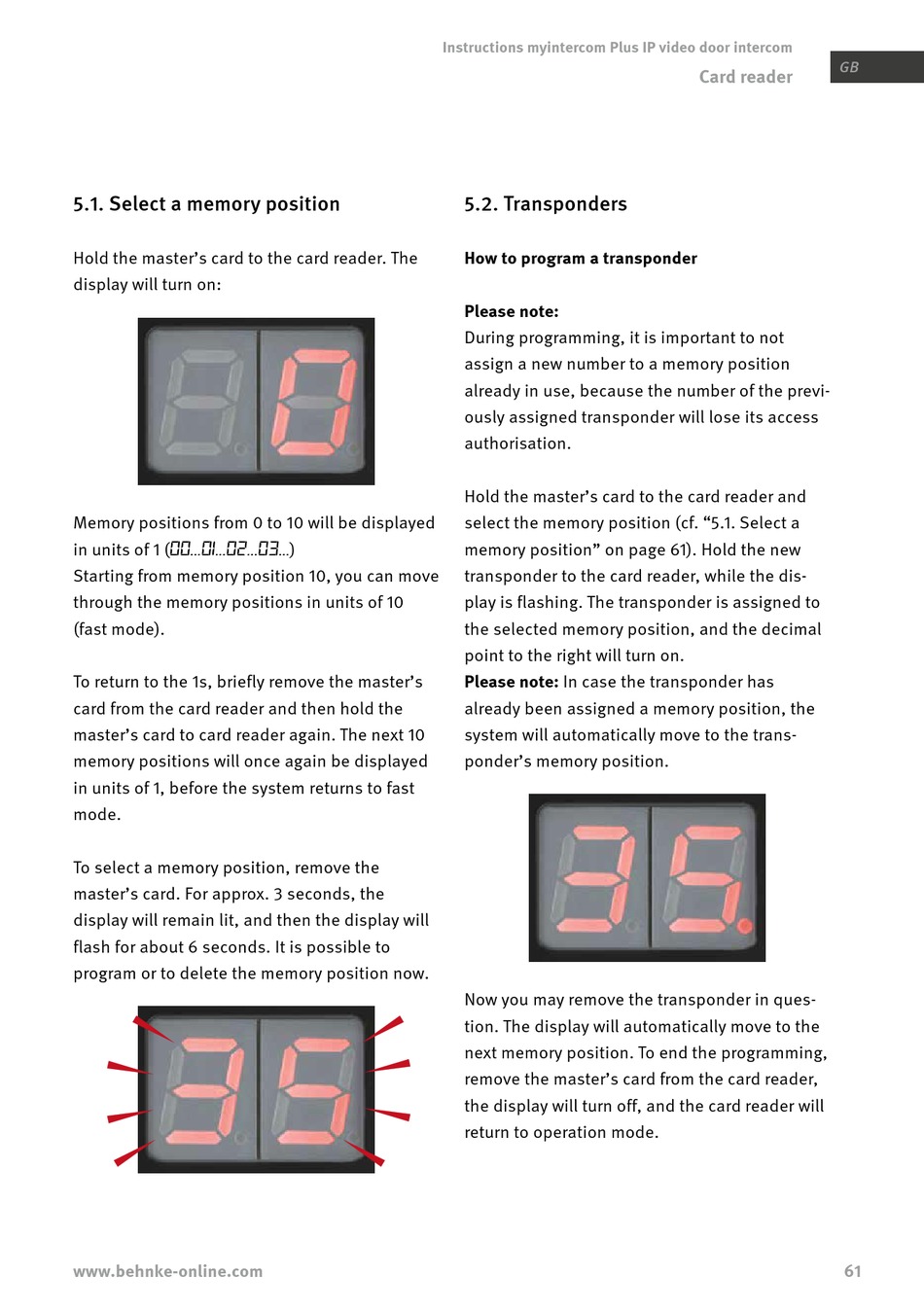

5.1. Select a memory position

Hold the master's card to the card reader. The
display will turn on:
Memory positions from 0 to 10 will be displayed
in units of 1 (
00...01...02...03...
Starting from memory position 10, you can move
through the memory positions in units of 10
(fast mode).
To return to the 1s, briefly remove the master's
card from the card reader and then hold the
master's card to card reader again. The next 10
memory positions will once again be displayed
in units of 1, before the system returns to fast
mode.
To select a memory position, remove the
master's card. For approx. 3 seconds, the
display will remain lit, and then the display will
flash for about 6 seconds. It is possible to
program or to delete the memory position now.
www.behnke-online.com
Instructions myintercom Plus IP video door intercom

5.2. Transponders

How to program a transponder
Please note:
During programming, it is important to not
assign a new number to a memory position
already in use, because the number of the previ-
ously assigned transponder will lose its access
authorisation.
Hold the master's card to the card reader and
select the memory position (cf. "5.1. Select a
) memory position" on page 61). Hold the new
transponder to the card reader, while the dis-
play is flashing. The transponder is assigned to
the selected memory position, and the decimal
point to the right will turn on.
Please note: In case the transponder has
already been assigned a memory position, the
system will automatically move to the trans-
ponder's memory position.
Now you may remove the transponder in ques-
tion. The display will automatically move to the
next memory position. To end the programming,
remove the master's card from the card reader,
the display will turn off, and the card reader will
return to operation mode.
