3.3. Open door/Relay/Gong

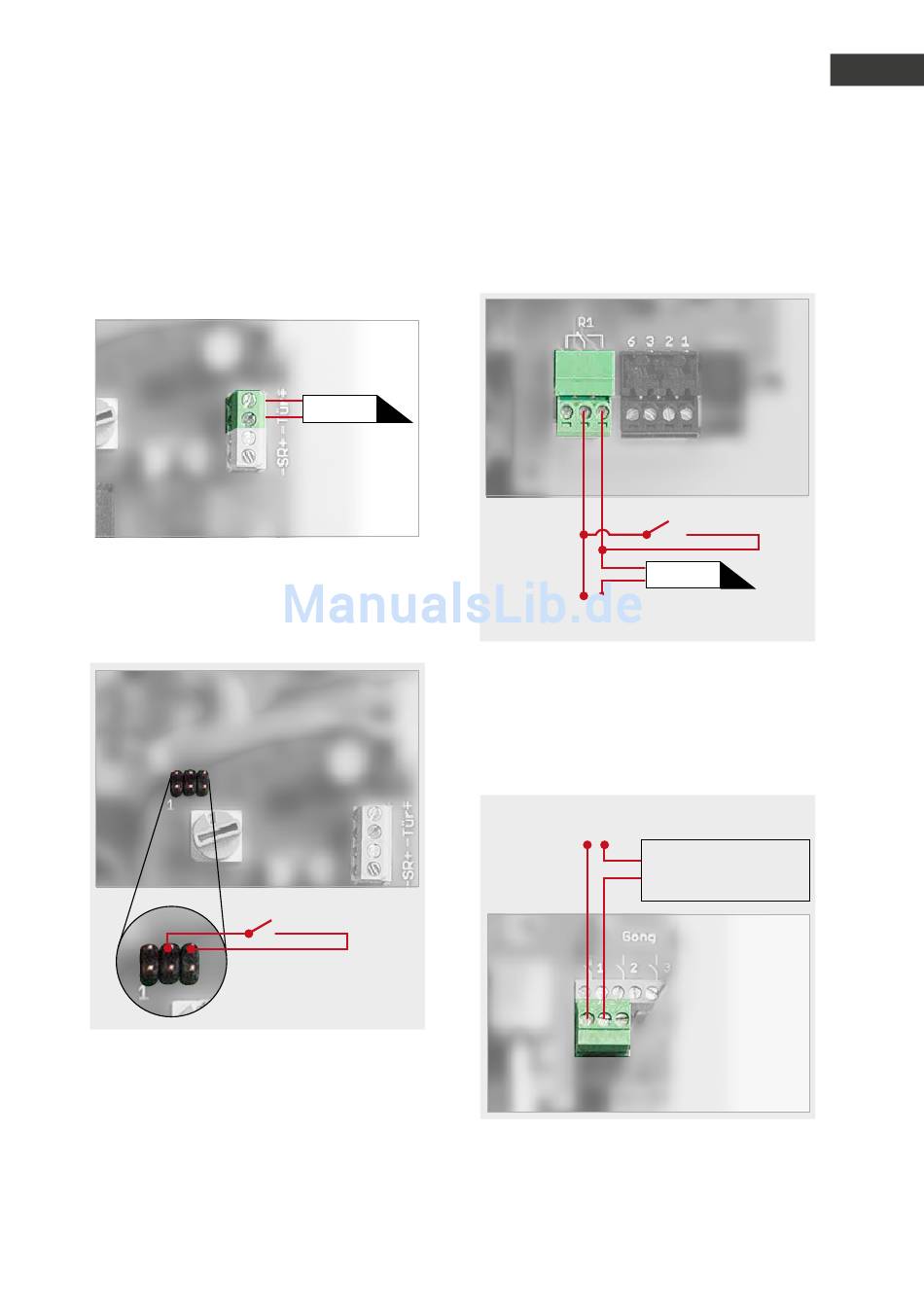

Remove the housing cover and connect the
components as follows:
Connect the open door function directly
operated by the door intercom station (12 V DC/
AC max. 9 W) to the terminal marked "Door".
In case power for the open door function is
directly supplied from the door intercom sta-
tion, you may install an external button to open
the door.
www.behnke-online.com
Open door
function
Optional external open
door button (on site)
Instructions myintercom Plus IP video door intercom
Relay 1 can be used via the terminal marked
"R1" and relay 2 can be used via the terminal
marked "R2".
External open door power supply unit
(cf. technical specifications)
Connection relay 1
Please note: The tension for the open door
function and relay 1 will always be triggered
together.
External power supply unit
(cf. technical specifications)
Connection relay 2
Installation
Optional external open
door button (on site)
Open door
function
Illumination control, open
garage door function, bar
control
