Examples Of Use; General Safety Instructions; Load Lifter; Technical Data Load Lifter And Control Unit - Weber Rescue Systems B 10 Betriebsanleitung

4.17

Examples of use

4.18

General safety instructions

WARNING!
Danger of injury due to improper operation!
Improper operation can cause severe injury or property damage. Therefore,
always proceed as follows:
• For all work, observe the safety instructions and warnings given in Chap-
ters 2 to 2.7.
• Carry out all work steps according to the information in these operating
instructions.
• Before starting work, ensure that all covers and guards are installed and
that they work properly.
72
5

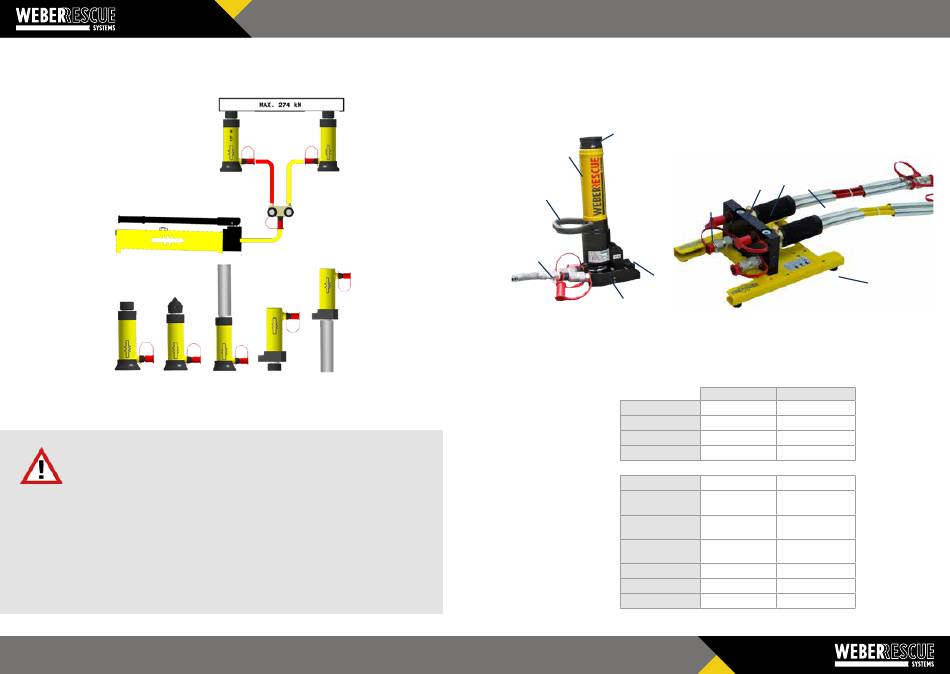

Load lifter

5.1

Technical data load lifter and control unit

4
3
2
1
5
6
SBH 15-255
1 Coupling
2 Handle
3 Appliance body
4 Pushing head
5 Lifting claw
6 Appliance foot
Length
Width
Height
Weight
Max. lifting power*
Max. lifting power
Lifting claw
Head insertion
height
Claw insertion
height
Stroke
Nominal pressure
ID no.
LOAD LIFTER
3
2
4
1
5
MSE 15-255
1 Coupling
2 Hose line
3 Control handle
4 Push button control
5 Base plate
SBH 15-255 MSE 15-255
450 mm 350 mm
150 mm 280 mm
250 mm 145.5 mm
20.9 kg 8.6 kg
149 kN -
100 kN -
450 mm -
40 mm
255 mm -
630 / 700 bar 700 bar
2839075 2839440
* in acc. with EN 13204
