2.7

Signage

The following symbols and instruction panels are located on the appliances.
They refer to the immediate environment in which they are displayed.
Please note contents of operating manual
Do not use the designated appliance until you have read the operating
manual from cover to cover.
Warning of injuries to hands
When working with these appliances, ensure that no injuries to hands can
be caused by snagging (pinch points) or by sharp edges. Therefore wear
appropriate protective gloves.
WARNING!
Danger of injury due to illegible symbols!
As time goes by, adhesive labels and symbols on the appliance may get dirty,
or be rendered illegible in some other manner.
Therefore, it is absolutely necessary to:
• Maintain all safety, warning and operating instructions on the appliance
in a readily legible condition.
• Damaged signs and adhesive labels must be replaced immediately.
58
3 „Büffel"

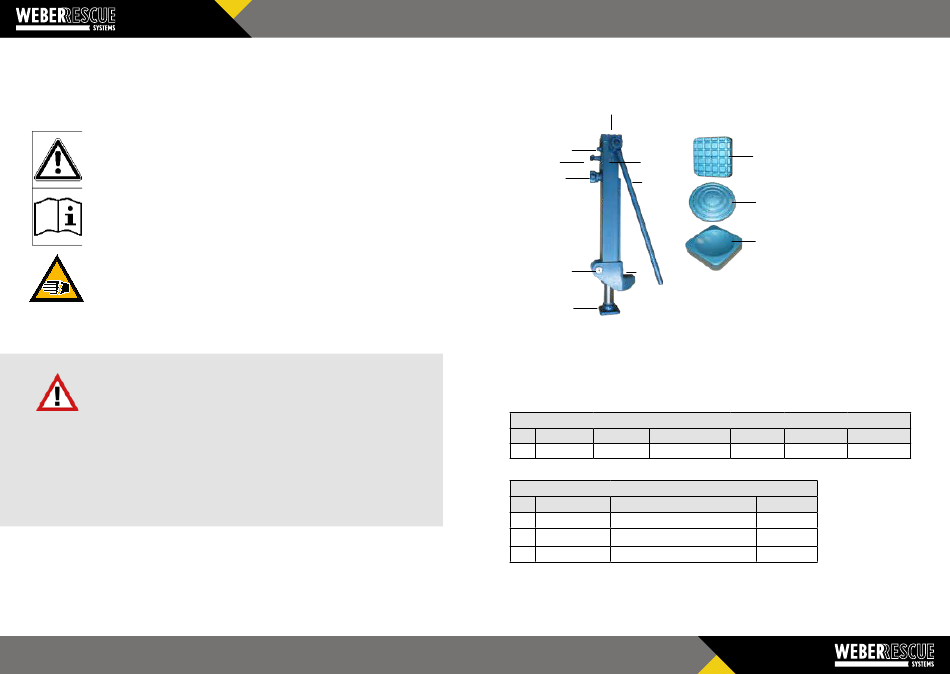

3.1 Büffel B 10 technical specifications
1
A
F
B
C
G
D
H
A
B
E
C
D
E
F
G
H
WEBER "Büffel"
No.: ID no.: Type: Permissible load
1 198471 "Büffel" B 10 10,000 kg
Accessories
No.: ID no.: Type:
2 4129873 Foot: flat square B10
3 4129881 Foot: spherical B10
4 32255 Bearing plate for stabilisation B10
SAFETY
2
3
4
Breather with oil filler plug
Handle
Handwheel for drain valve
Pin
Foot (exchangeable)
Oil filler plug
Pump handle (adjustable) in working position
Lifting claw, height adjustable
Closed height Piston stroke Weight
800 mm 350 mm 37.0 kg
Weight:
1.8
1.8
1.8
