LASER LEVEL

ACCURACY CHECK

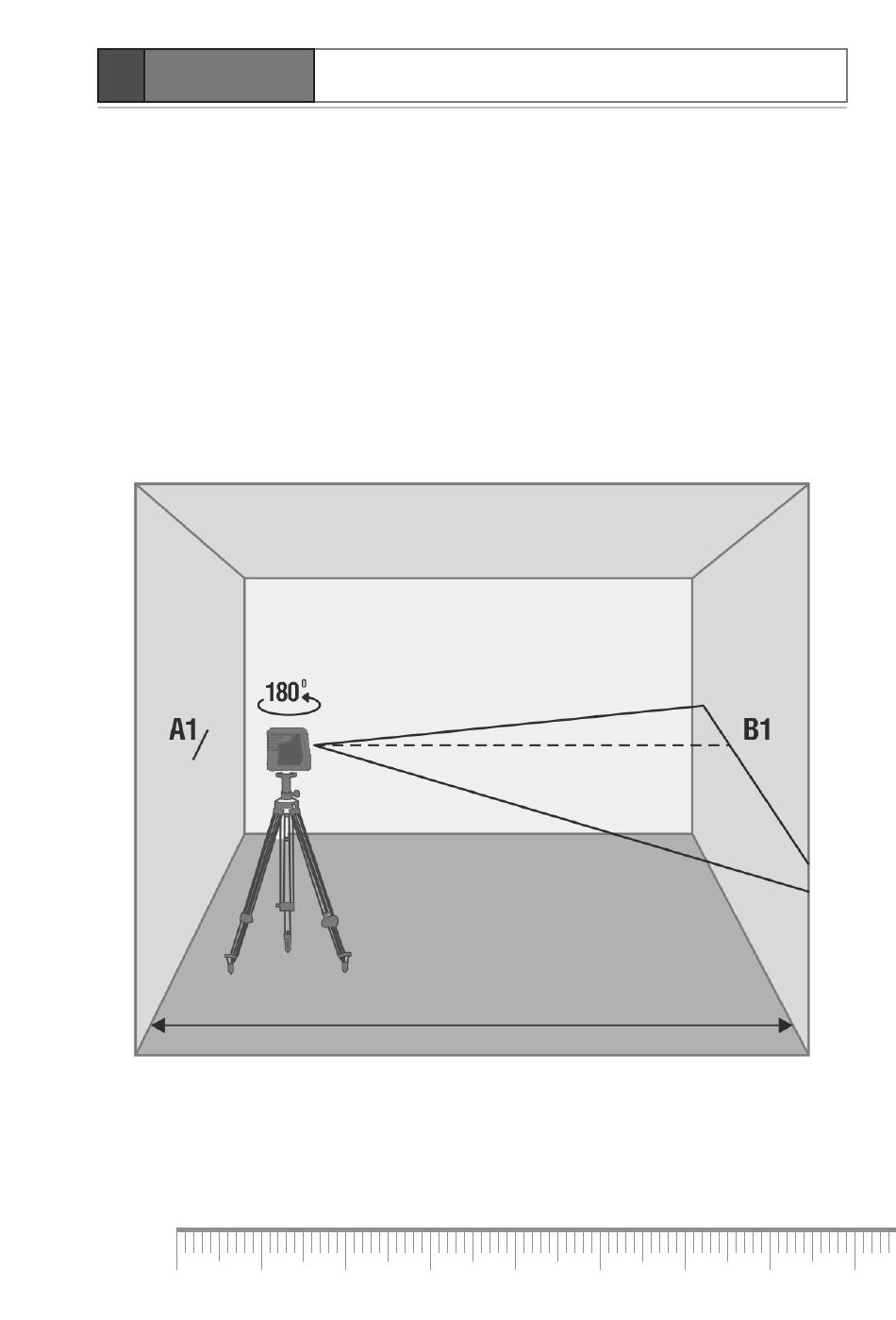

Check of horizontal line
Check of horizontal line is carried out by using 2 walls located
opposite each other at a 5m distance.
1. Place the device close to the wall so that laser emitters are located
opposite to the wall.
2. Move the switch bar to unlocked position. Mark position of
horizontal line on the wall as A1.
3. Turn the device by 180° and mark position of horizontal line on
another wall as B1.
4. Turn the device to the right. Measure vertical deviation of
horizontal line from point B1. If deviation exceeds 1,5 mm, please
contact service center.
10 10
CONDTROL SMART 2D Plus
5m
