SMART 3D/4D PLUS
Congratulations on your purchase of laser level SMART 3D/4D PLUS CONDTROL.
Safety instructions can be found in the end of this user manual and should be carefully
read before you use the device for the first time.
SAFETY REGULATIONS
Attention! The user manual should be read carefully before you use the device for
the first time. Unintended use of the device can be dangerous for human's health and
cause serious injury. Keep this user manual. If the device is given to somebody for
temporary use, be sure to enclose user manual to it.
- Do not misuse the device.
- Do not remove warning signs and protect them from abrasion, because they contain
information about safe operation of the device.
Laser radiation!
Do not stare into beam
Class 2 laser
<1 mW, 515 nm
IEC 61000-3-2:2019
- Do not look into the laser beam or its reflection, with unprotected eye or through
an optical instrument. Do not point the laser beam at people or animals without the
need. You can dazzle them.
- To protect your eyes close them or look aside.
- Always install the product in such a way, so that the laser line is below or above the
eye level.
- Do not let unauthorized people enter the zone of product operation.
- Store the product beyond reach of children and unauthorized people.
- It is prohibited to disassemble or repair the product yourself. Entrust product repair
to qualified personnel and use original spare parts only.
- Do not use the product in explosive environment, close to flammable materials.
- Avoid heating the batteries to avoid the risk of explosion and electrolyte leakage. In
case of liquid contact with skin, wash it immediately with soap and water. In case of
contact with eyes, flush with clean water during 10 minutes and consult the doctor.
INTENDED USE
Laser levels SMART 3D PLUS and SMART 4D PLUS CONDTROL are designed for
projecting and controlling of vertical and horizontal planes and lines. SMART 3D PLUS
projects two vertical and one horizontal 360° planes. SMART 4D PLUS projects two
vertical and two horizontal 360° planes.
The laser levels have 2 operating modes:
- automatic leveling, which allows to automatically compensate irregularities within
self-leveling range of ±3°;
- projection of inclined planes and lines.
Pulse mode allows to increase working range of the laser level by using the laser
receiver or to work in bright lighting conditions when laser is hard to define.
These laser levels are suitable for use at both indoor and outdoor building areas.
TECHNICAL SPECIFICATIONS
SMART 3D PLUS
Working range / with receiver*
Levelling accuracy
Self-levelling range
Operating temperature
Storage temperature
Continuous working time:
- with one laser emitter
switched on
- with all laser emitters switched on 3 hours
Laser level
Tripod thread
Laser type
Power supply
User manual
Dimensions
Weight
- without batteries
- with batteries
DELIVERY PACKAGE
SMART 3D PLUS:
Laser level, Li-Ion battery 2 pcs., wall mount, clamp, adapter screw from 1/4'' to 5/8'',
remote control, charger, user manual, hard case.
SMART 4D PLUS:
Laser level, Li-Ion battery 2 pcs., wall mount, clamp, lifting platform, adapter screw
from 1/4'' to 5/8'', remote control, charger, user manual, hard case. from 1/4'' to 5/8'', remote control, charger, user manual, hard case.

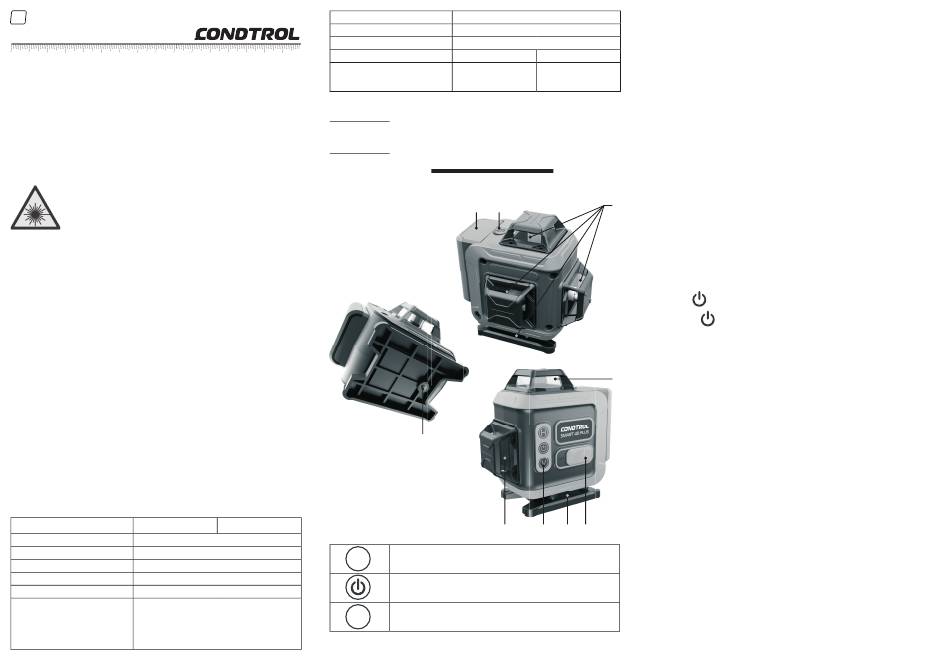

PRODUCT DESCRIPTION
1. Laser beam exit windows
2. Control panel
3. Battery
4. Tripod thread 1/4''
5. Switch bar
6. Bubble level
SMART 4D PLUS
Control panel
30 m/60 m
H
±0,3 mm/m
± 3°
-10°C ... +40°C
-20°C ... +60°C
V
12 hours
2,5 hours
1/4"
Class II, 515 nm, <1 mW
4,2 V 3000 mAh Li-Ion
110х80х108 mm 110х80х125 mm
0,49 kg 0,53 kg
0,59 kg 0,63 kg
3 6
4
1 2 1
Switch on/off the horizontal laser emitter (SMART 3D PLUS ) /
emitters (SMART 4D PLUS)
Switch on/off pulse mode
Switch on/off the vertical laser emitters
INSTALATION/ CHARGING OF THE LI-ION BATTERY
The device is powered via a Li-Ion rechargeable battery included in the delivery
package.
Install the battery before starting the operation. If laser lines become dull or laser
emitters cannot be switched on, the battery must be charged. Do not allow the battery
to completely discharge.
Use the battery included in the delivery package only.
The charging procedure is as follows:
1) Remove the battery from the laser level.
2) Connect the charger to the battery though a charging port, then connect it to 220V.
The battery charging time is about 4 hours. LED indicator will be red while charging.
3) The battery is fully charged when the LED indicator turns green. Disconnect the
charger.
4) Install the battery back to the battery compartment.
Delivery package includes two batteries in order to ensure continuous operation of the
device.
Warning! It is not allowed to connect the charger to the battery installed in the
switched-on device. It may lead to breakdown of the device.
It is allowed to charge the battery without removing it from the battery compartment
only if the device is switched off.
1
OPERATION
Place the laser level on a firm and stable surface or a tripod.
ON
Move the switch bar to position. The device will switch on automatically.
If the laser level is out of the automatic compensation range, laser lines will flash and
sound indication will switch on.
H V
Short press and buttons to switch on required laser emitters.
Short press to switch on/off the pulse mode.
Press and hold for 2 seconds to switch on/off inclined planes mode.
To switch off the laser level move the switch bar to
Attention! To increase the operating time and avoid the risk of unintentional blinding
switch on the minimum required number of laser modules and adjust brightness
of laser emitters. Press and hold
1
button to decrease brightness. Sound indication will switch on.
If operated near objects or airflows different from the environment temperature
the laser line may tremble due to heterogeneity of the atmosphere. The longer the
distance, the more trembling can be observed.
The width of the laser line increases with the increasing of the operating distance. The
marking should be made along the axis of the laser line. For maximum accuracy, use
the middle portion of the laser line.
It should be noted that the shape of the laser line on the object's surface (e.g. walls,
ceilings) depends on the curvature and slope of the surface relative to the laser plane.
5
OFF
position.
H V
button to increase brightness. Press and hold
