EN
ROTARY LASER
Magnetic target board
Magnetic target board helps
make the layout of ceiling systems or
framework structures. Built-in magnet
enables attaching a target to the ceiling
rails or on the frame profile. The target
has a linear layout on its surface, which
allows determining deviation from the
nominal level and making check points
while marking by laser leveling.

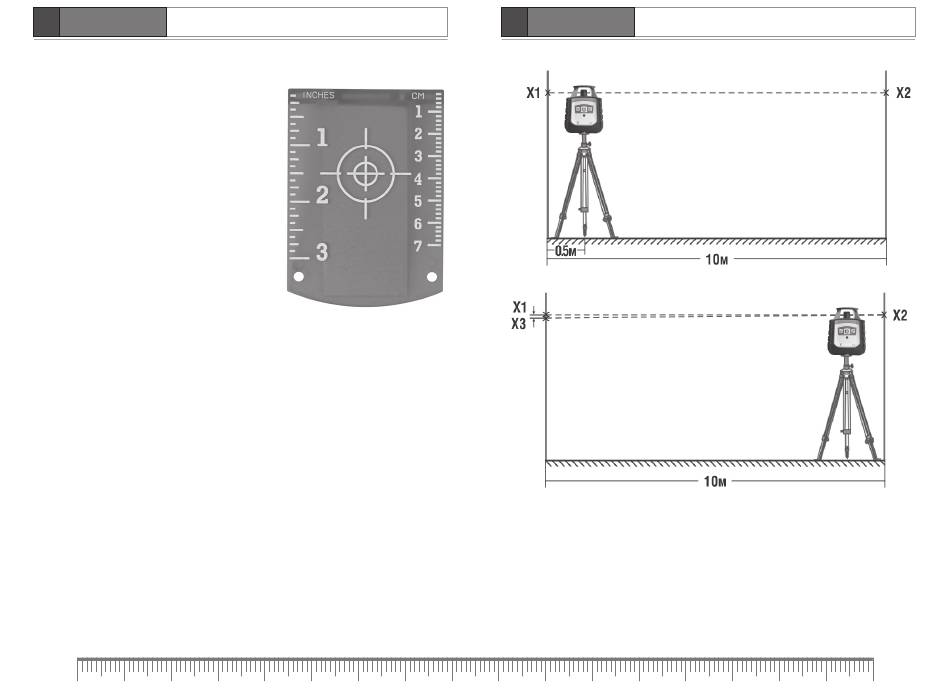

ACCURACY CHECK

Axis X
1. Place the product at 0.5 m distance from one wall and 10 m
distance from another wall, so that axis X is aimed at the wall.
2. Turn on the product. As soon as self-levelling is finished, mark
location of laser line on both walls by points X1 and X2.
3. Turn off the product. Move it to the opposite wall, position of the
product should remain unchanged.
4. Turn on the product. Align laser line with the previously made
point X2. Mark point X3 on the opposite wall.
5. If distance between points X1 и X3 is more than 3 mm – turn off
the product and contact service center.
16
CONDTROL Auto RotoLaser
user manual
to
CONDTROL Auto RotoLaser
EN
ROTARY LASER
Axis Y
1. Place the product at 0.5 m distance from one wall and 10 m
distance from another wall, so that axis Y is aimed at the wall.
2. Turn on the product. As soon as self-levelling is finished, mark
location of laser line on both walls by points Y1 and Y2.
