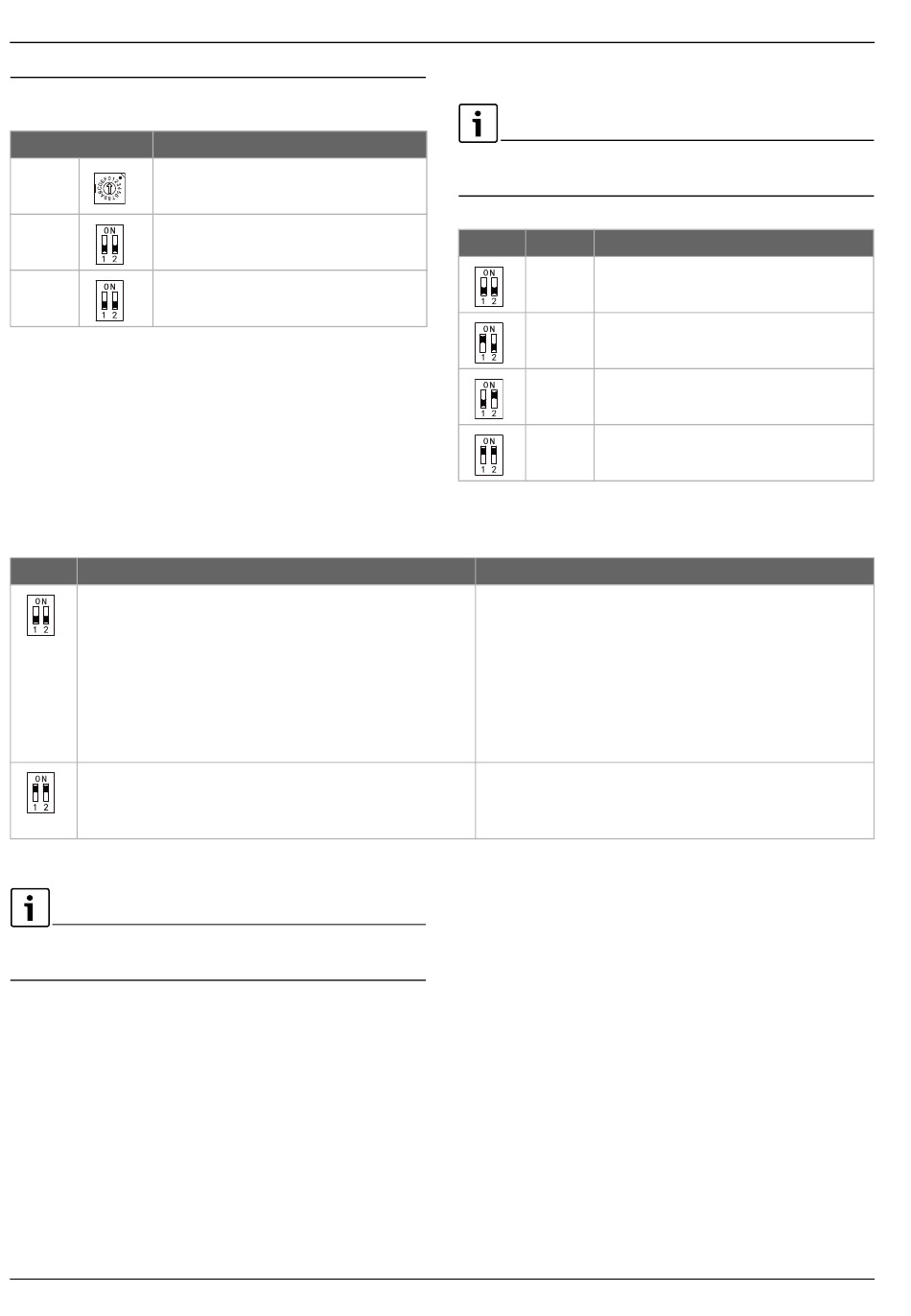

DIP switch settings

4 DIP switch settings
DIP switch Definition of DIP Switches
ENC3 Network address
F1 Expands the number of possible
network addresses.
F2 Behaviour of terminals (input/output
signal).
Table 27 Definition of DIP Switches
Behaviour of terminals (F2)
F2 Behaviour if contact switch is closed
(As-delivered condition)
• Operation via app/remote control is possible.
• Indoor unit switches on.
• Output signal is on/off, depending on operation via the
app/remote control.
– Off: if indoor unit is switched on.
– On: if indoor unit is switched off.
• Operation via app/remote control is possible.
• Indoor unit switches on.
• Output signal is off.
Table 29 DIP switch F2
"Remote control" means infra-red remote control or room
controller.
32
Network addresses (F1+ENC3)
The network address must be set in systems in which many
indoor units communicate with one another.
F1 ENC3 Network address
0 - F 0 – 15 (Factory setting)
0 - F 16 – 31
0 - F 32 – 47
0 - F 48 – 63
Table 28 DIP switch F1
Behaviour if contact switch is open
(As-delivered condition)
• Operation via app/remote control is possible. CP
appears in display of indoor unit.
• Indoor unit switches off.
• Output signal is on.
• Operation via app/remote control is possible.
• Indoor unit switches off.
• Output signal is on.
MC R – 6721841757 (2025/01)
