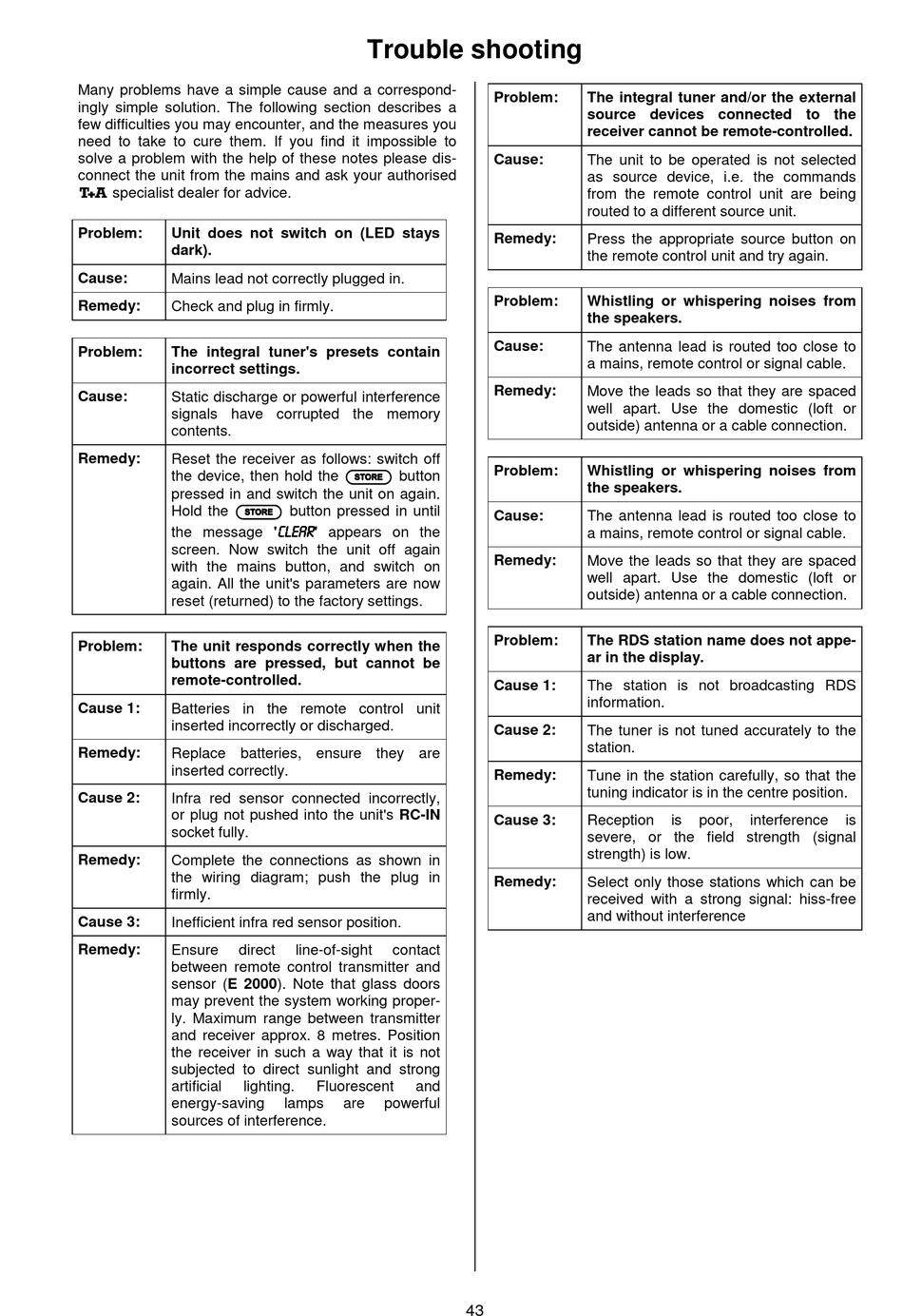

Trouble Shooting - T+A R 1260 R Betriebsanleitung

Many problems have a simple cause and a correspond-
ingly simple solution. The following section describes a
few difficulties you may encounter, and the measures you
need to take to cure them. If you find it impossible to
solve a problem with the help of these notes please dis-
connect the unit from the mains and ask your authorised
 specialist dealer for advice.
Problem: Unit does not switch on (LED stays
dark).
Cause:
Mains lead not correctly plugged in.
Remedy:
Check and plug in firmly.
Problem: The integral tuner's presets contain
incorrect settings.
Cause: Static discharge or powerful interference
signals have corrupted the memory
contents.
Remedy: Reset the receiver as follows: switch off
the device, then hold the 
pressed in and switch the unit on again.
Hold the   button pressed in until
 
the message '
screen. Now switch the unit off again
with the mains button, and switch on
again. All the unit's parameters are now
reset (returned) to the factory settings.
Problem: The unit responds correctly when the
buttons are pressed, but cannot be
remote-controlled.
Cause 1: Batteries in the remote control unit
inserted incorrectly or discharged.
Remedy: Replace batteries, ensure they are
inserted correctly.
Cause 2: Infra red sensor connected incorrectly,
or plug not pushed into the unit's RC-IN
socket fully.
Remedy:
Complete the connections as shown in
the wiring diagram; push the plug in
firmly.
Cause 3:
Inefficient infra red sensor position.
Remedy:
Ensure direct
between remote control transmitter and
sensor (E 2000). Note that glass doors
may prevent the system working proper-
ly. Maximum range between transmitter
and receiver approx. 8 metres. Position
the receiver in such a way that it is not
subjected to direct sunlight and strong
artificial lighting.
energy-saving
sources of interference.

Trouble shooting

 button
 
' appears on the
CLEAR CLEAR CLEAR CLEAR
line-of-sight contact
Fluorescent and
lamps are powerful
Problem: The integral tuner and/or the external
source devices connected to the
receiver cannot be remote-controlled.
Cause:
The unit to be operated is not selected
as source device, i.e. the commands
from the remote control unit are being
routed to a different source unit.
Remedy:
Press the appropriate source button on
the remote control unit and try again.
Problem: Whistling or whispering noises from
the speakers.
Cause: The antenna lead is routed too close to
a mains, remote control or signal cable.
Remedy: Move the leads so that they are spaced
well apart. Use the domestic (loft or
outside) antenna or a cable connection.
Problem: Whistling or whispering noises from
the speakers.
Cause: The antenna lead is routed too close to
a mains, remote control or signal cable.
Remedy:
Move the leads so that they are spaced
well apart. Use the domestic (loft or
outside) antenna or a cable connection.
Problem: The RDS station name does not appe-
ar in the display.
Cause 1:
The station is not broadcasting RDS
information.
Cause 2: The tuner is not tuned accurately to the
station.
Remedy: Tune in the station carefully, so that the
tuning indicator is in the centre position.
Cause 3:
Reception
severe, or the field strength (signal
strength) is low.
Remedy:
Select only those stations which can be
received with a strong signal: hiss-free
and without interference
43
is poor, interference is
