Installation
First make a rectangular cut-out in the cabin wall
as shown in the Fig. 5.
The wall above the radiator should be hollow
inside to let the hot air rise.
Draw the connection cable from the radiator up
to the ceiling through the duct in the cabin wall.
Pay attention that the cable connection of the
radiator must be oriented downwards
Then insert the radiator into the prepared wall
aperture and secure it with the mounting screws
as shown in Fig 6 and 7.
For details and safety gaps please refer to the
illustrations shown in Fig. 4, 5, 6 and 7.
Front view
185
Dimensions in mm
ATTENTION!
Not suitable for horizontal installation
and installation in the cabin ceiling.
Risk of fire due to heat congestion.

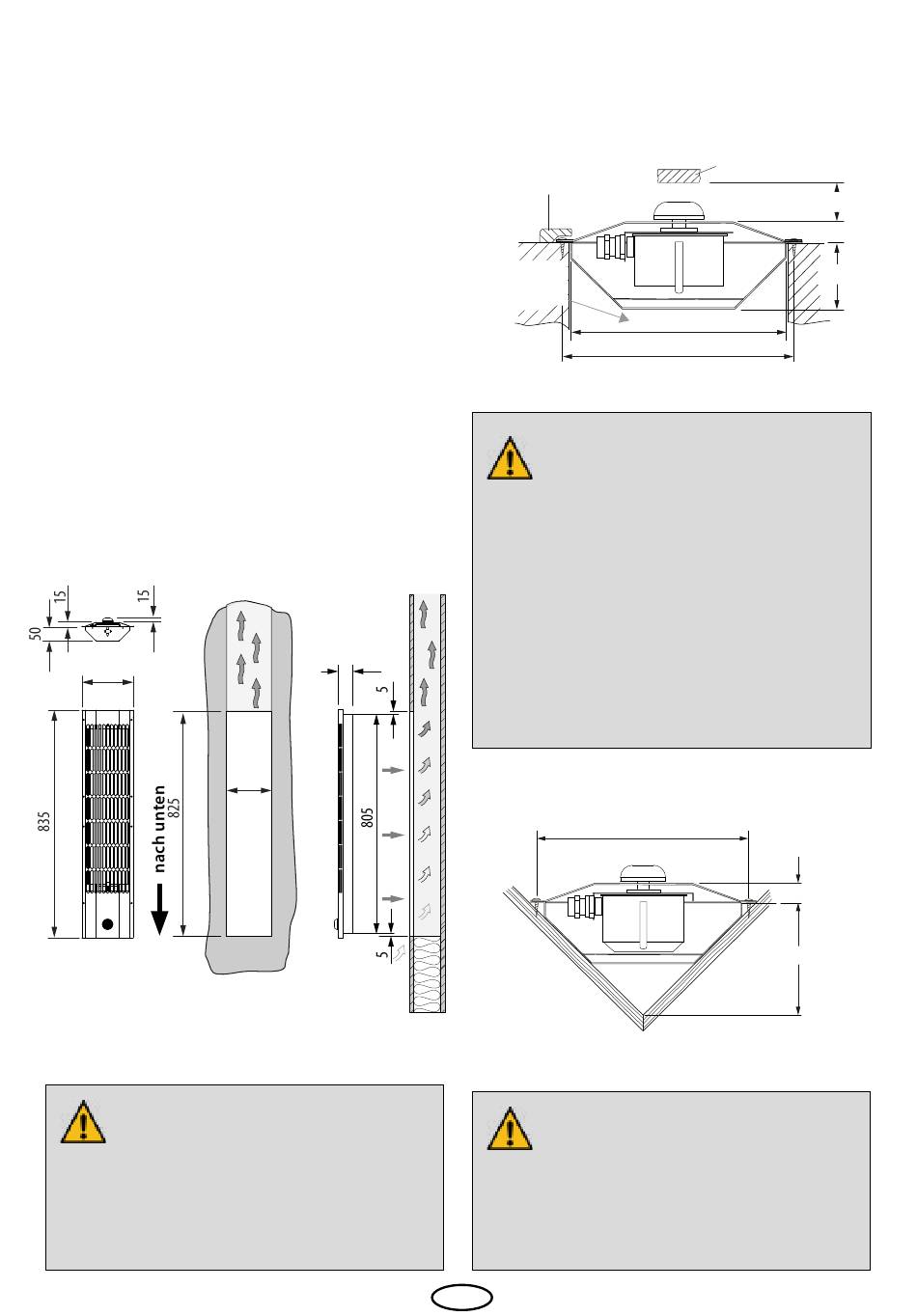

Wall cut-out
with rear ventilation
65
165
Fig. 5
Installation example
Flush-mounted installation
Wooden rail if necessary
eventuelle Holzleiste
Area behind the
Gerät muss
radiator must be well
hinterlüftet sein
aerated
Danger to life and risk of fire
due to overheating
If there is no or inadequate ventilation
behind and above the IR radiator, the
wood can overheat - risk of fire. Ensure
adequate ventilation. Do not block the
space above the IR radiator so that the
warm air can rise freely.
Vertical installation in corners
ATTENTION!
Do not install the IR radiator in direct
heat range of another IR radiator. Risk of
damages due to overheating!
EN
Protective guard rail if necessary
Holzschutz
Mindestabstand
160
171
171 mm
15 mm
90 mm
40 mm
15 mm
50 mm
Fig. 6
Fig. 7
