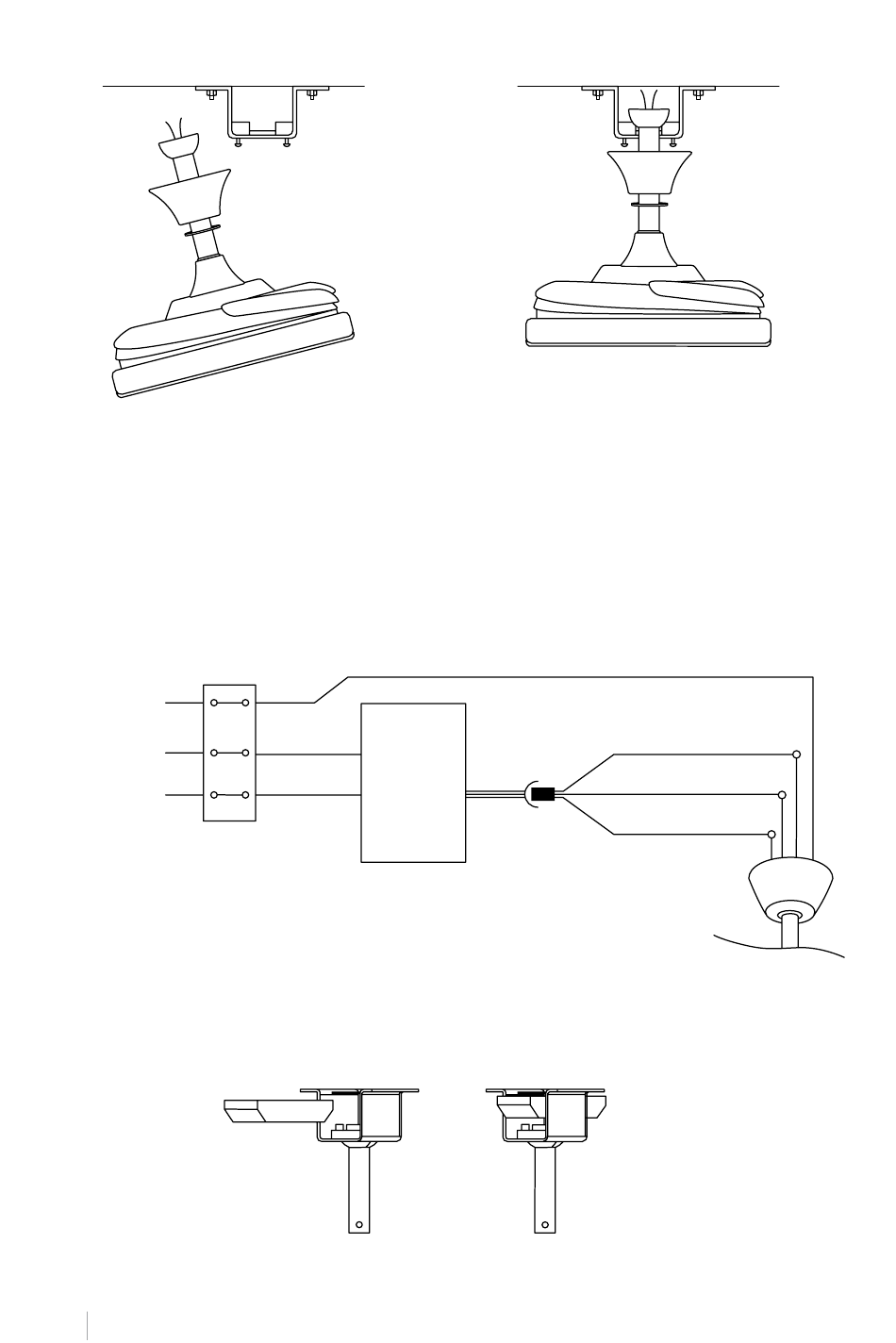

HA NG I N G TH E FAN
Place the downpipe with the suspension ball into the mounting bracket, rotate the motor
assembly until the check tab on the mounting bracket has fallen into the registration groove
of the suspension ball and is firmly seated.
W IRING CON N ECT IO N
Make the connection between the receiver wires and the fan motor wires following the color
indications. Make sure the connection is secure.
Grounding
L
N
R E M O T E CON TROL CO NNECT IO N
Insert the remote control controller into the mounting bracket as shown in the picture.
E NGL I SH
12
Input L
(black)
Receiver
remote
Input N control
(white)
Earthing (green / yellow)
DC motor L (gray)
DC motor L (pink)
DC motor L (red)
