C H OICE OF MOU NTI NG T YP E

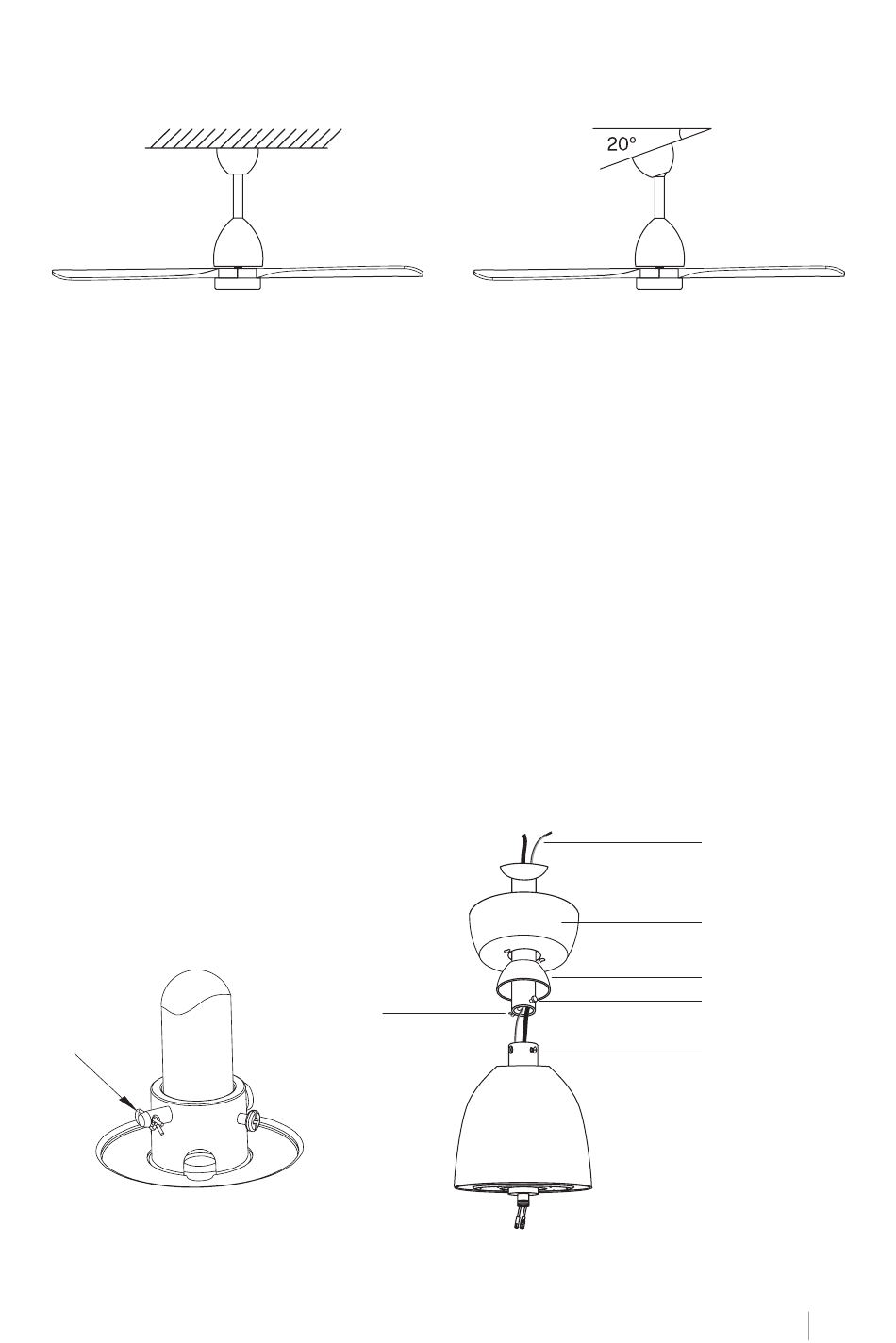

Traditional assembly
The traditional setup hangs from the ceiling
with a rod.
This fan can be installed on both a regular and vaulted ceiling, and can extend the hanging
length with the longer hanging rod (supplied). To install the hanger bar you will need the
following tools: a screwdriver, flat head screwdriver, adjustable pliers or wrench, step ladder,
wire cutters, and electrical tape.
M OUN TI N G AND HANGI NG T HE FAN
• If you want to extend the hanging length of your fan, remove the ball from the hanger rod
and use the additional extension rod (included).
• If you want to use the extension bar, follow the following instructions:.
1. To remove the ball from the suspension rod, loosen the set screw and remove the cotter
pins.
2. Lower the ball and remove the locking pin.
3. Take the ball out of the hanger bar and insert it into the longer hanger bar (the top of the
bar has a hole for the set screw; use this to secure the bar).
4. Insert the locking pin into the end of the suspension rod and raise the ball. Make sure the
locking pin is aligned with the grooves inside the ball and secure the set screw.
locking pin
locking pin
Angle mounting
Angle mounting is recommended on sloped
or vaulted ceilings.
Cabling
Floron
Trim
Cap screw
Fixing screw
