Advice: To make it easier to insert the wires into the bar, place some electrical tape around
the wires. This will help you keep them together as you insert them into the bar.
5. Loosen the mounting screws and washer from the top of the motor housing. Remove the
bar pins (if you haven't already). Insert the rosette through the bar.
6. Thread the cables through the bar and pull the excess cables from the top of the bar to
tighten them.
7. Place the bar inside the motor housing and insert the pins you removed earlier. Tighten
the set screws and washers.
8. Lower the canopy towards the motor housing.

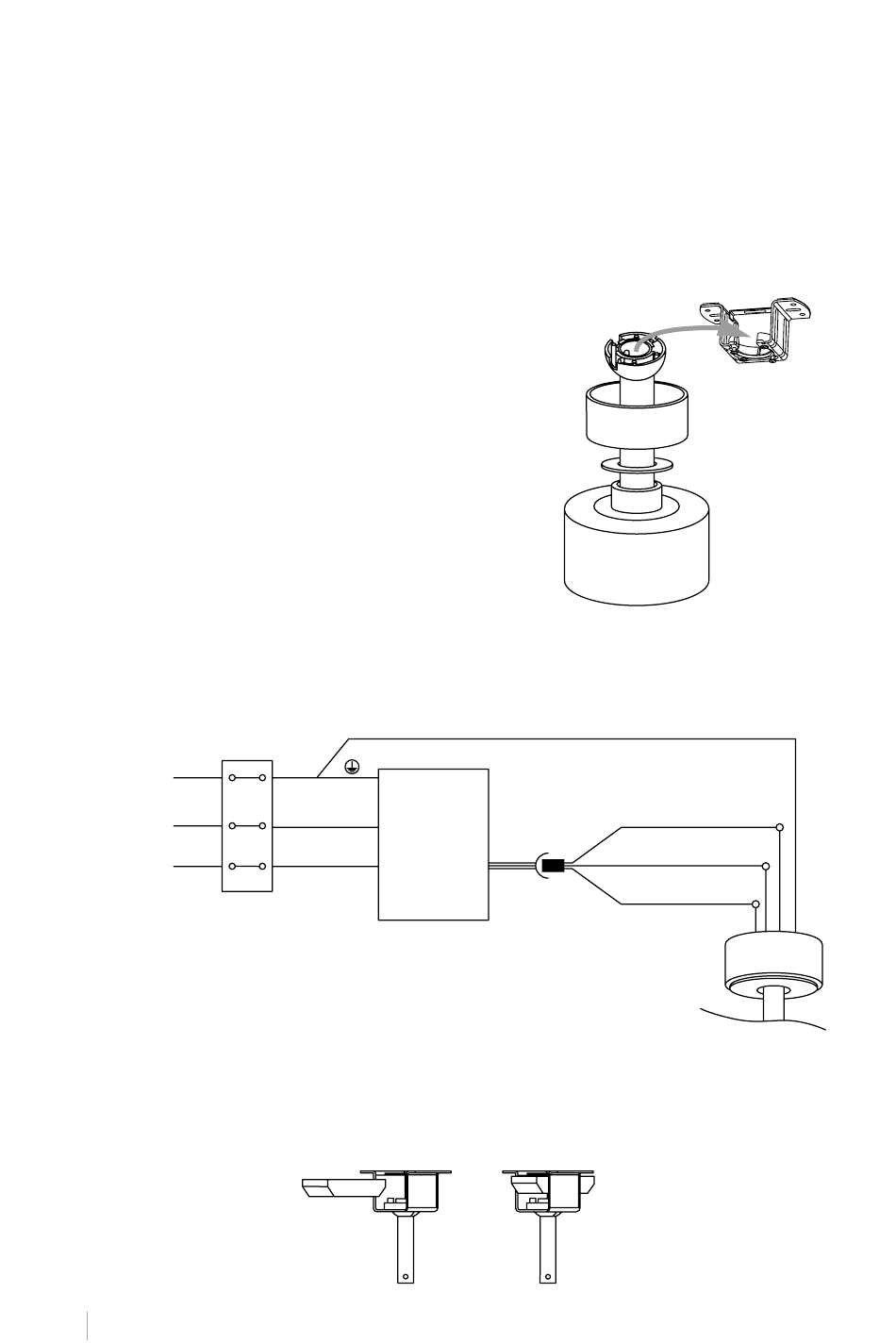

HA NG IN G THE FAN
• Once the rod is mounted to the fan motor, insert the
ball coupling into the mounting bracket installed on
the ceiling.
W IRING CON N ECTI ON
Make the connection between the receiver wires and the fan motor wires following the color
indications. Make sure the connection is tight.
Get grounded
L
N
RE MO TE CON TROL CO NNECT I O N
Insert the remote control controller into the mounting bracket as shown in the picture.
E NGL I SH
12
L input
(black)
Receiver
remote
control
Input N
(white)
Ground (green/yellow)
DC motor L (grey)
DC motor L (pink)
DC motor L (red)
