Installation
Power connection
18

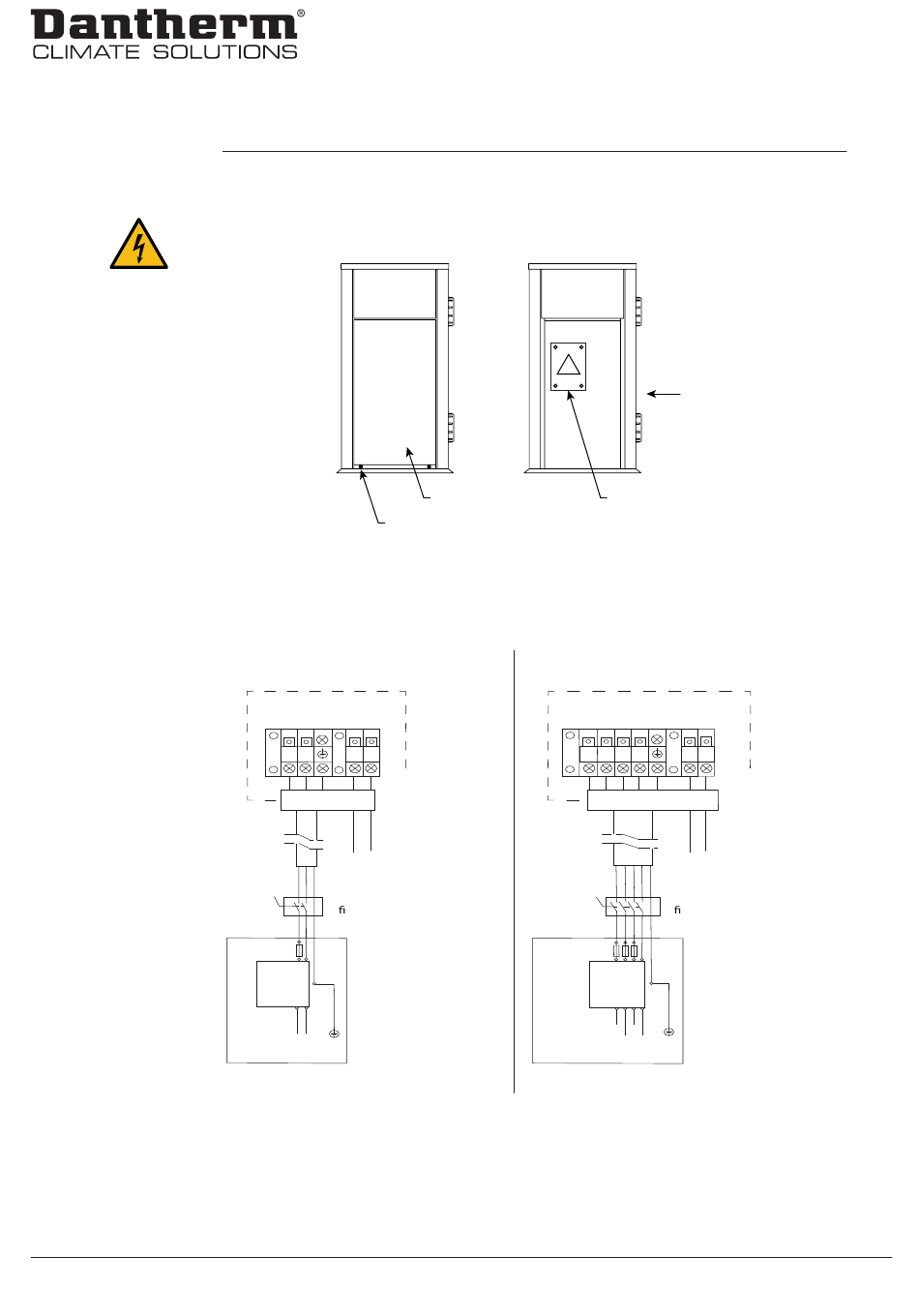

To access the heat pump connection terminals, remove the lower side access panel and the
terminal box cover as illustrated in the diagram below .
Remove two screws from
Supply cable should be connected in accordance to relevent diagram below .
Single phase
Heat pump terminal box connections
Power
Pump
terminals
terminals
L N
P1 P2
Secure cables
using cable
Cable clamp
clamps and feed
through cable
Supply
entry points in
cord
heat pump
Isolator which
disconnects all poles
tted within 2m and in line
of sight of the heat pump
Fuse/MCB
RCD/
Circuit
Breaker
L N
Distribution box
Earthed Power
Supply 230V
Accessories: Plumbing and pool water circuit
Lift lower panel away
base of lower side
access panel
Heat pump terminal box connections
Supply
cord
Fuses/MCB
Distribution box
Earthed Power
Supply 400V
Cable entry points
Remove four screws and
cover to access terminals
Three phase
Power
Pump
terminals
terminals
L1
L2
L3 N
P1 P2
Secure cables
using cable
Cable clamp
clamps and feed
through cable
entry points in
heat pump
Isolator which
disconnects all poles
tted within 2m and in line
of sight of the heat pump
RCD/
Circuit
Breaker
L1
L3
L2
N
