Accessories: Indoor installation : Fitting the remote control panel
Installation
Indoor installation : Fitting the remote control panel
Risk of electric shock .
Working with the power supply on can result in severe injury . Follow the personnel require-
ments outlined in the section titled Safety . Before starting this procedure, ensure the unit is
switched off and disconnected from the mains power supply .

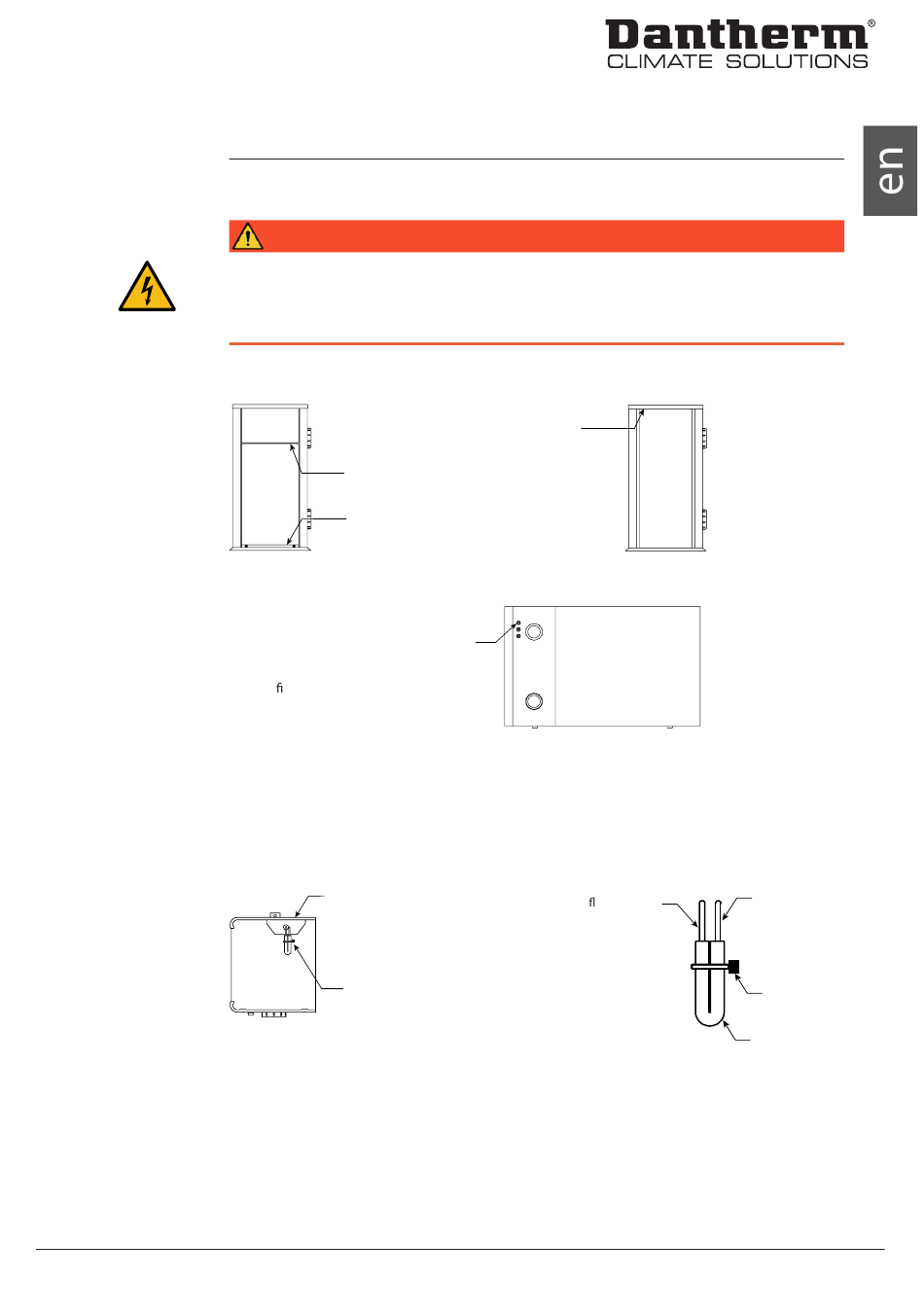

Remove the lower side panel, upper side panel and top cover in order from the heat pump .
Remove the top cable gland in the heat pump and replace with the supplied grommet .
Replace top cable gland with grommet
This will allow the 10m cable to be
Cut the cable tie and slide back the sleeving on the existing cable (fly lead) to the heat pump
control panel to expose the plug and socket, then disconnect them . Feed the appropriate
end of the 10m cable for the remote control panel through the new grommet and connect
it to the socket on the existing cable inside the heat pump . Route and secure the new cable
as needed, leaving the original fly lead from the control panel disconnected . Reposition the
sleeving over the plug and socket, and secure it with a new cable tie .
Position the remote control panel mounting box and feed the 10m cable through the ap-
propriate opening . If the cable is concealed within the wall and routed through the rear of the
mounting box, use a grommet to protect the cable . Connect the cable to the remote control
panel's fly lead, then secure the panel in the mounting box .
The remote control panel is not protected against water ingress and is not weather proof .
Replace the top cover and two side panels on the heat pump and check the remote control
panel operates correctly .
DANGER
Remove two screws from below
top cover then lift, slide and remove cover
Remove two screws from base of
upper side access panel then remove panel
Remove two screws from base of
lower side access panel then remove panel
tted into the heat pump
Heat pump control panel
Existing cable with plug - socket
covered with sleeving and secured
with a cable tie
Replace y lead with
10m remote control
panel cable
Existing cable in
heat pump
Cable tie
Sleeving
