Installation

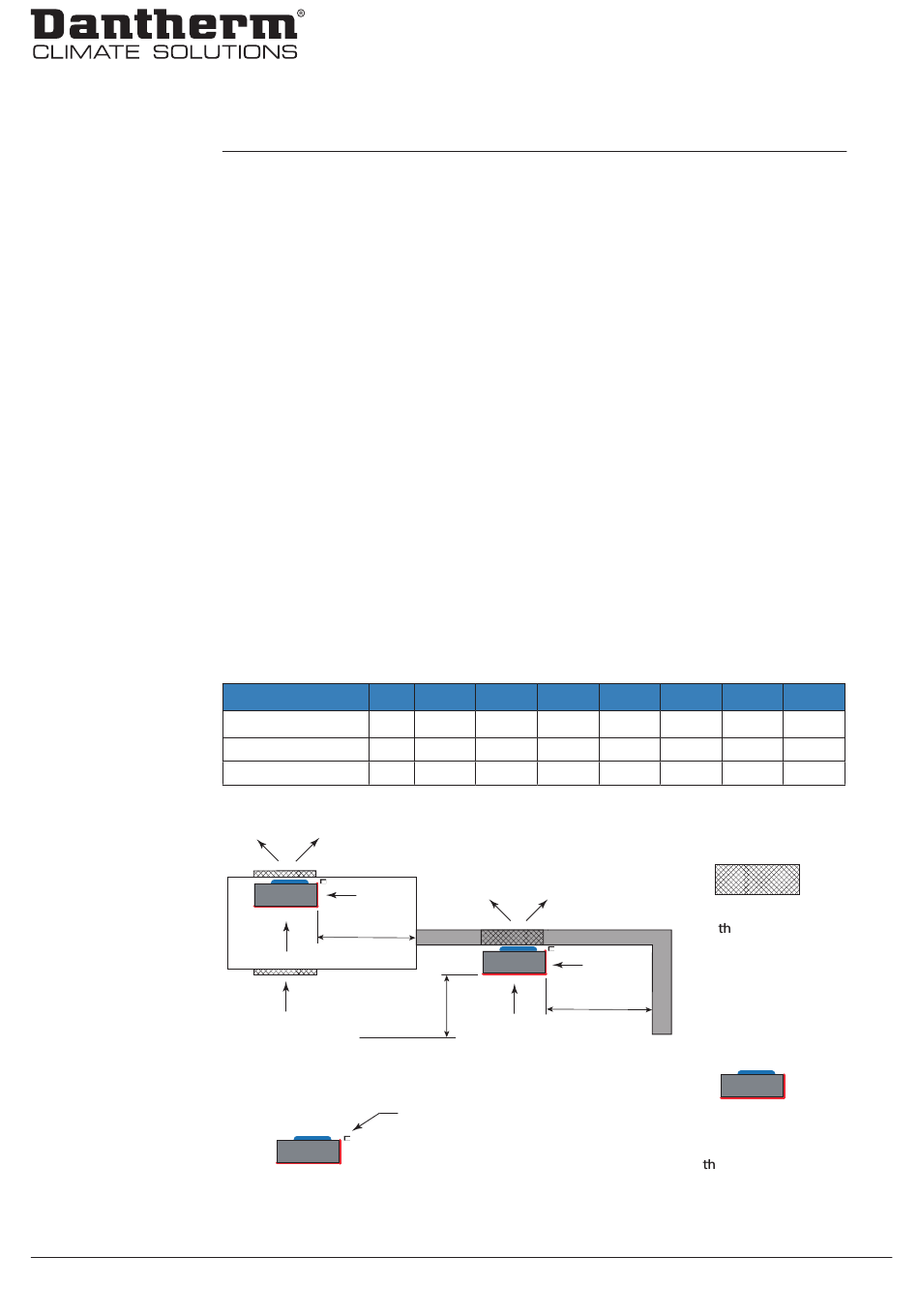

Indoor installation : Positioning and air flow
12
Installation should only be carried out by qualified, competent personnel and must comply
with all relevant local or national regulations .
If installed in an enclosed area or with exhaust passing through a wall, ensure the minimum
required free area for proper airflow .
The diagram below illustrates the mandatory minimum clearances between the heat pump
and any potential obstructions . Obstructions may include walls, fences, hedges, or any other
object that could impede the free movement of air .
Since the heat pump's controller will be obscured by the wall in such installations, it is rec-
ommended to connect to the optional remote control panel or the Pooltherm App before
positioning the unit .
To maintain optimal performance, the heat pump must be properly sealed against the wall .
This prevents exhaust air from recirculating into the unit, which would otherwise reduce its
efficiency . As the exhaust air outlet grille extends around one side of the heat pump, an op-
tional air sealing strip should be installed to assist with sealing this area effectively .
Ensure the wall hole is sealed and smooth to prevent exhaust air from entering cavities and
restricting airflow .
The term "free area" refers to the open space through which air can pass freely through grilles
or louvres, ensuring adequate ventilation for the heat pump's operation .
Model
Discharge area
m2
Hole height
mm
Hole width
mm
Possible locations for the heat pump relative to a wall or plant room .
700mm
Plant room
500mm
Potential obstruction
located to seal corner indicated
Fix strip to wall using screws provided
and push heat pump against strip
Accessories: Indoor installation : Positioning and air flow
10A
16A
22A
0 .45
0 .67
0 .84
585
685
880
770
980
955
Wall
700mm
Air sealing strip must be
22B
28A
28B
0 .84
0 .95
0 .95
880
880
880
955
1080
1080
Suitable opening
rough wall
Air outlet
Air inlet
Key : Route of airflow
rough heat pump
36B
1 .04
880
1180
Air inlet
