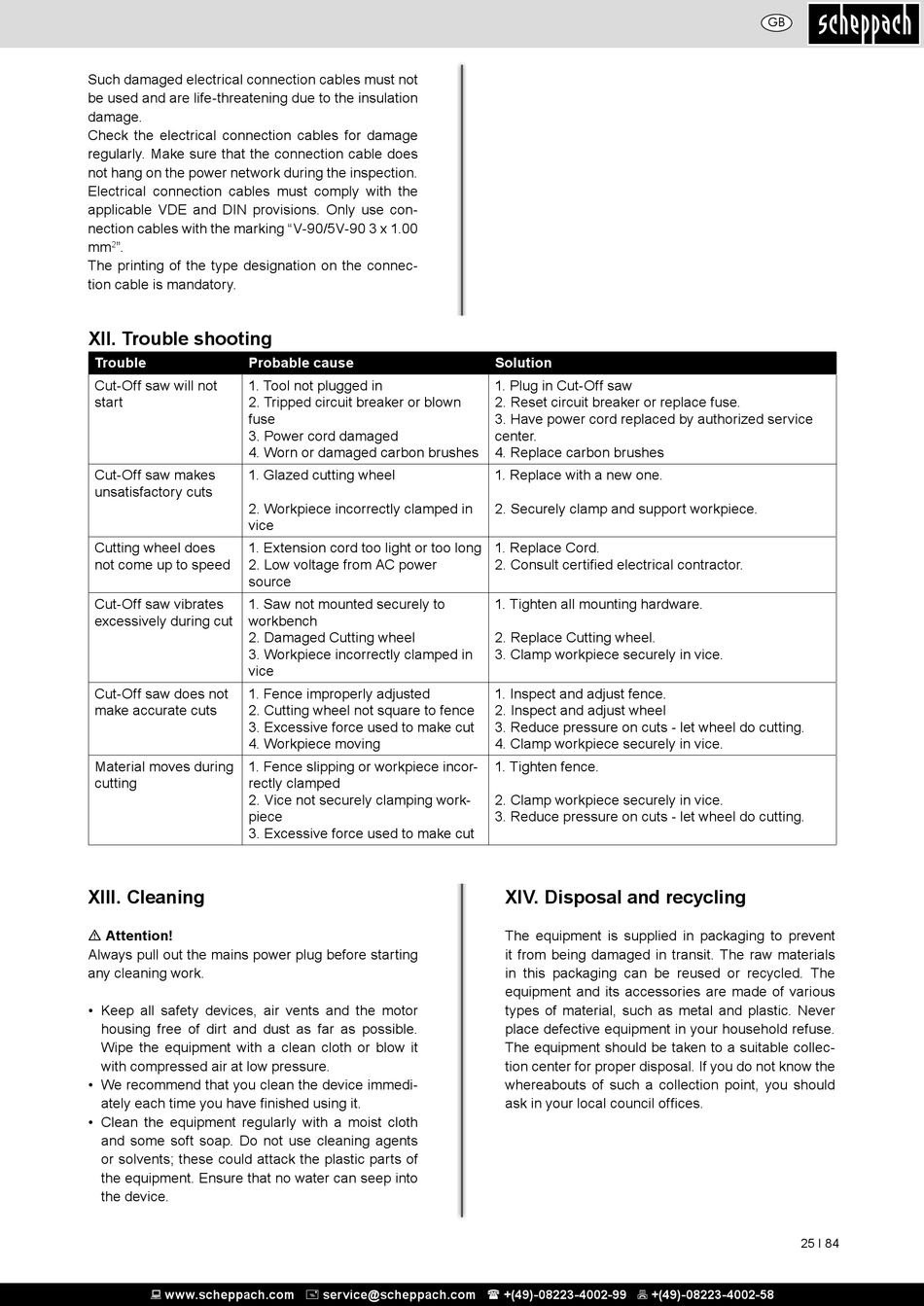

Scheppach MT140 Originalbetriebsanleitung Seite 25

Such damaged electrical connection cables must not
be used and are life-threatening due to the insulation
damage.
Check the electrical connection cables for damage
regularly. Make sure that the connection cable does
not hang on the power network during the inspection.
Electrical connection cables must comply with the
applicable VDE and DIN provisions. Only use con-
nection cables with the marking "V-90/5V-90 3 x 1.00
".
2
mm
The printing of the type designation on the connec-
tion cable is mandatory.
XII. Trouble shooting
Trouble Probable cause
Cut-Off saw will not 1. Tool not plugged in
2. Tripped circuit breaker or blown
start
fuse
3. Power cord damaged
4. Worn or damaged carbon brushes
Cut-Off saw makes 1. Glazed cutting wheel
unsatisfactory cuts
2. Workpiece incorrectly clamped in
vice
Cutting wheel does 1. Extension cord too light or too long
2. Low voltage from AC power
not come up to speed
source
Cut-Off saw vibrates 1. Saw not mounted securely to
excessively during cut workbench
2. Damaged Cutting wheel
3. Workpiece incorrectly clamped in
vice
Cut-Off saw does not 1. Fence improperly adjusted
make accurate cuts 2. Cutting wheel not square to fence
3. Excessive force used to make cut
4. Workpiece moving
Material moves during 1. Fence slipping or workpiece incor-
cutting rectly clamped
2. Vice not securely clamping work-
piece
3. Excessive force used to make cut
XIII. Cleaning
m Attention!
Always pull out the mains power plug before starting
any cleaning work.
• Keep all safety devices, air vents and the motor
housing free of dirt and dust as far as possible.
Wipe the equipment with a clean cloth or blow it
with compressed air at low pressure.
• We recommend that you clean the device immedi-
ately each time you have finished using it.
• Clean the equipment regularly with a moist cloth
and some soft soap. Do not use cleaning agents
or solvents; these could attack the plastic parts of
the equipment. Ensure that no water can seep into
the device.
 www.scheppach.com  service@scheppach.com  +(49)-08223-4002-99  +(49)-08223-4002-58
Solution
1. Plug in Cut-Off saw
2. Reset circuit breaker or replace fuse.
3. Have power cord replaced by authorized service
center.
4. Replace carbon brushes
1. Replace with a new one.
2. Securely clamp and support workpiece.
1. Replace Cord.
2. Consult certified electrical contractor.
1. Tighten all mounting hardware.
2. Replace Cutting wheel.
3. Clamp workpiece securely in vice.
1. Inspect and adjust fence.
2. Inspect and adjust wheel
3. Reduce pressure on cuts - let wheel do cutting.
4. Clamp workpiece securely in vice.
1. Tighten fence.
2. Clamp workpiece securely in vice.
3. Reduce pressure on cuts - let wheel do cutting.
XIV. Disposal and recycling
The equipment is supplied in packaging to prevent
it from being damaged in transit. The raw materials
in this packaging can be reused or recycled. The
equipment and its accessories are made of various
types of material, such as metal and plastic. Never
place defective equipment in your household refuse.
The equipment should be taken to a suitable collec-
tion center for proper disposal. If you do not know the
whereabouts of such a collection point, you should
ask in your local council offices.
