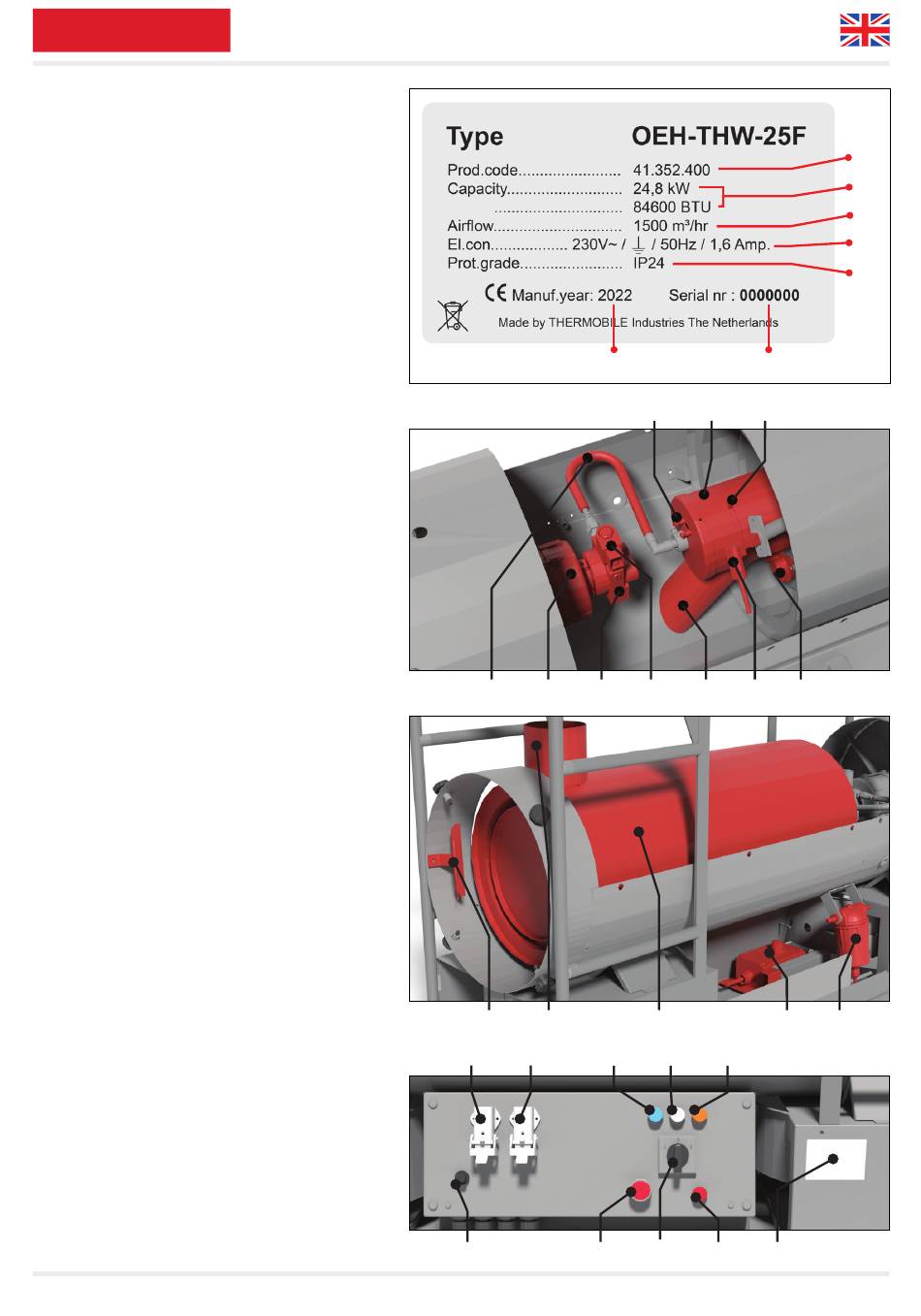

4.2 Product identification
The identification plate is attached to the
side of the air heater. The identification
plate contains the following information:
A - Product code
B - Power consumption
C - Airflow
D - Electrical connection
E - Protection grade
F - Serial number
G - Year of manufacture
4.3 Main components
A
- Electrode (2x)
B
- Burner head
C
- Air slide
D
- Fuel line
E
- Electric motor
F
- Fuel pump
G
- Solenoid valve
H
- Burner air inlet
I
- Photocell
J
- Post cooling thermostat
K
- Maximum thermostat
L
- Exhaust pipe
M
- Combustion chamber
N
- External room thermostat
O
- Heated oil filter
P
- Connection for room thermostat
Q
- Connection for CO sensor
R
- "Fan ON" LED
S
- "Live" LED
T
- "Burner ON" LED
U
- Max. temp reset button
V
- Burner reset button
W
- On/Off switch
0 - Off
1 - Fan only
2 - On
X
- "Max temp" LED
Y
- Identification plate
ITA-35 RCS
D
K
P
U
41.352.468 - rev. 1 - 2022
English | EN
G
A
E
F
G
L
M
Q
R
S
V
W
A
B
C
D
E
F
B
C
H
I
J
N
O
T
X
Y
