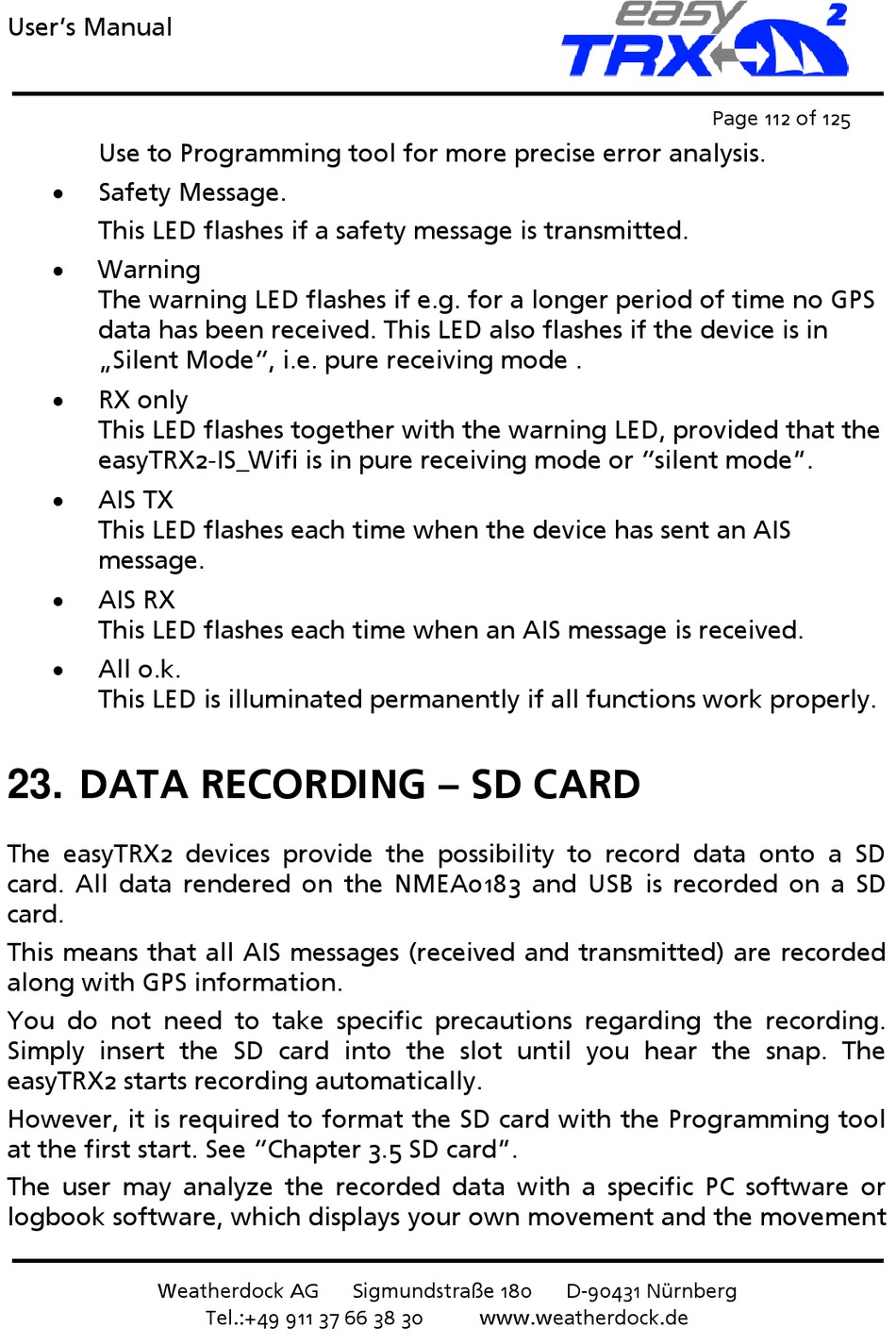

Use to Programming tool for more precise error analysis.

Safety Message.
This LED flashes if a safety message is transmitted.

Warning
The warning LED flashes if e.g. for a longer period of time no GPS
data has been received. This LED also flashes if the device is in
„Silent Mode", i.e. pure receiving mode .

RX only
This LED flashes together with the warning LED, provided that the
easyTRX2-IS_Wifi is in pure receiving mode or "silent mode".

AIS TX
This LED flashes each time when the device has sent an AIS
message.

AIS RX
This LED flashes each time when an AIS message is received.

All o.k.
This LED is illuminated permanently if all functions work properly.
23. DATA RECORDING – SD CARD
The easyTRX2 devices provide the possibility to record data onto a SD
card. All data rendered on the NMEA0183 and USB is recorded on a SD
card.
This means that all AIS messages (received and transmitted) are recorded
along with GPS information.
You do not need to take specific precautions regarding the recording.
Simply insert the SD card into the slot until you hear the snap. The
easyTRX2 starts recording automatically.
However, it is required to format the SD card with the Programming tool
at the first start. See "Chapter 3.5 SD card".
The user may analyze the recorded data with a specific PC software or
logbook software, which displays your own movement and the movement
