LIGHT / DECORATIVE COVER FOR OPEN BLADES
VARIATION WITH LIGHT
Attention! Turn off the power line of your fan through your circuit
breaker.

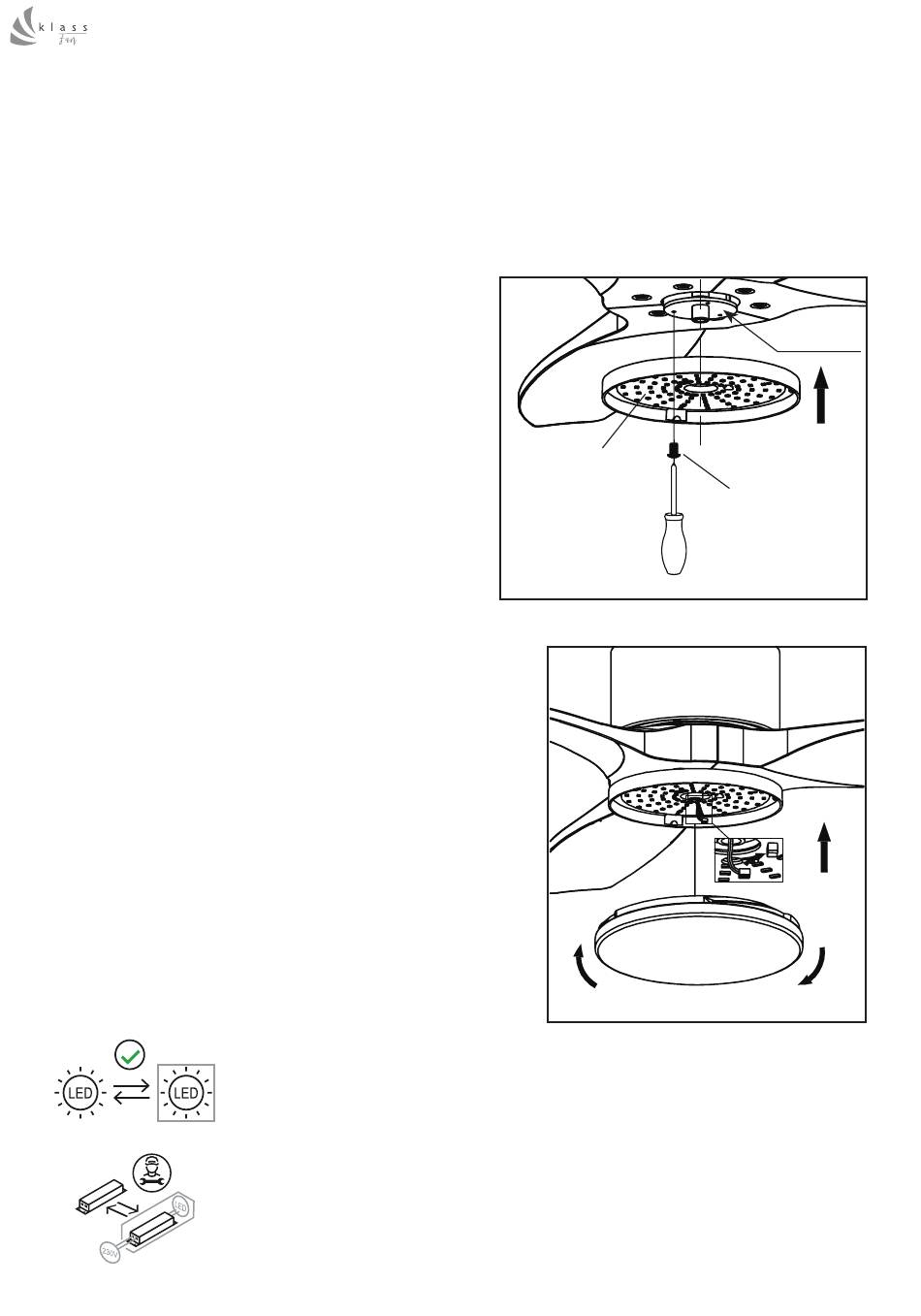

Remove one of the three screws from
the rotor holder, and unscrew the
other two out by 3-4 mm.
Attach the lightkit to the fan, fix the
first screw back to the hole and tighten
all the three screws firmly.
Direct plug in the wire to the lightkit
connector.
Install the lamp shade into the light kit.
Replaceable (LED only) light source by end-user
Replaceable control gear by a professional
Light fixture
34
Rotor holder
Screws
Connector
Lamp shade
