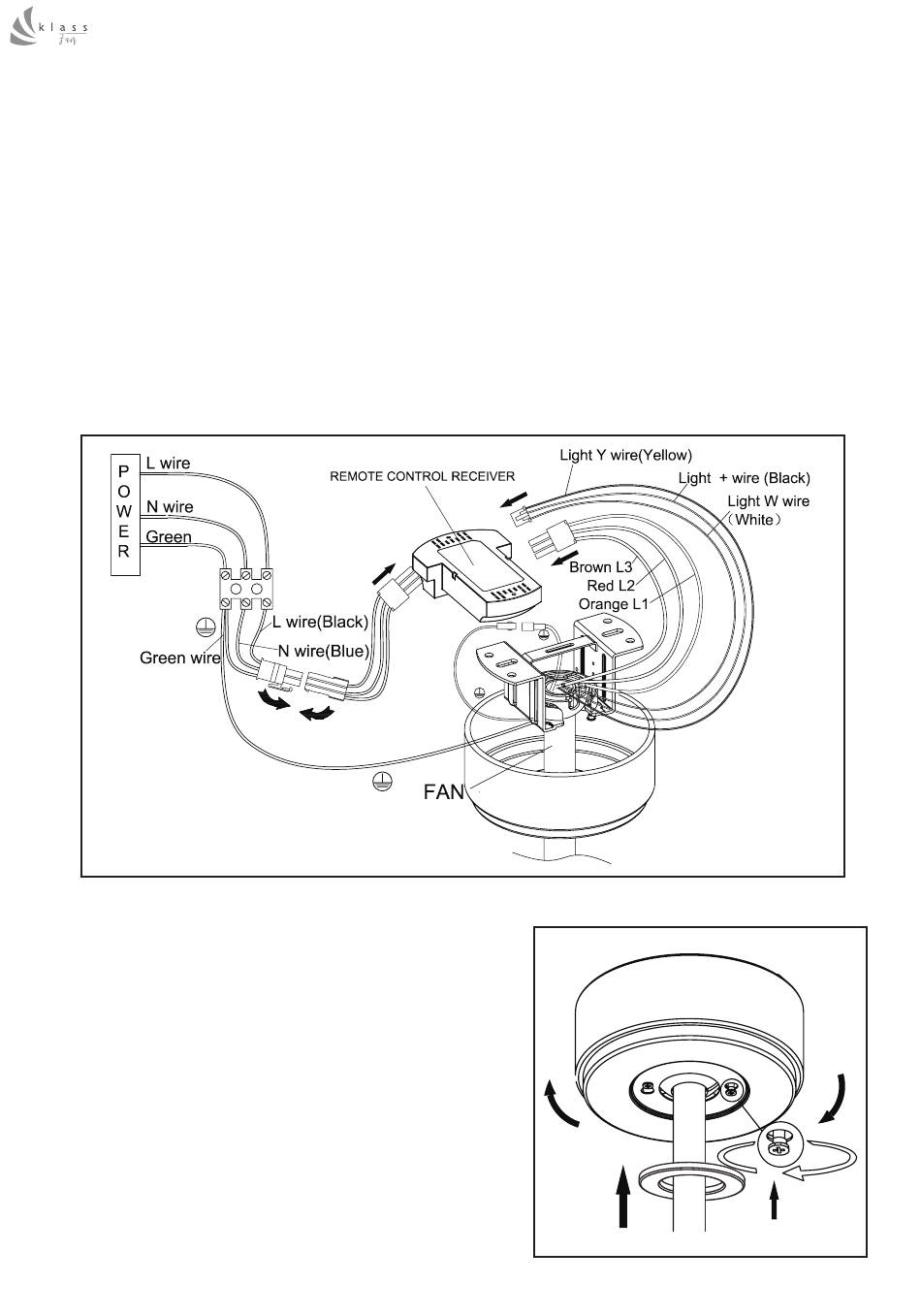

ELECTRICAL CONNECTIONS
ATTENTION! Make sure the circuit breaker is disconnected.
Take the receiver from the remote control and slide it under the ball joint of
the fan. Be careful not to break the side cables of the receiver. Connect the
eclectic network to the terminal or domino located by the plate. Be careful, do
not reverse the Phase and Neutral cables. Look after the black wire as it is the
receiver antenna.
Connect the cables coming out of the fan using the connector, do the same with
the cables of the exit of the domino.
Make sure the cables at the terminal block are connected properly.
Work carefully with the cables, without forcing
the connectors, reassemble the canopy.
Attach the canopy to the hanger bracket by
pushing up and twist to locate screws in the
two key holes.
Tighten the two screws firmly.
Attach the canopy cover with magnet to the
canopy.
