Check the contents of the kit against the Parts List.
•
It is important to clean all the plastic parts to remove any traces of grease and mould release agent; use
•
a liquid detergent solution for this.
Lightly sand the joint areas of the ABS parts to roughen the surfaces.
•

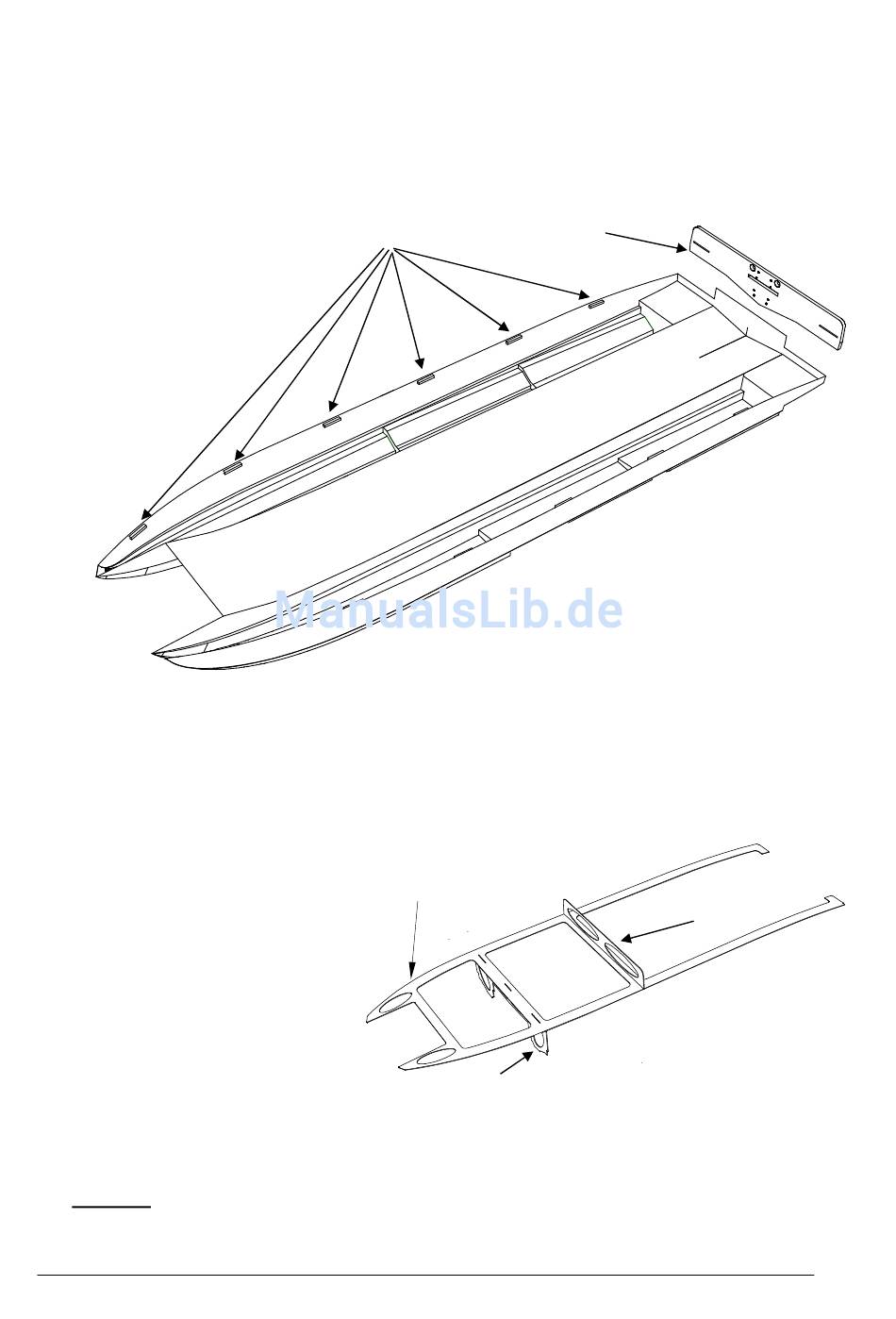

Lay the bottom hull section (part 1) on a flat surface.
•
Draw a pencil-line round the inside face of the hull at a point 3 mm below the machined cut-line.
•
Locate the 3 x 3 mm square-section ABS strip (part 2), and cut twelve pieces about 20 mm long from it.
•
Starting at the stern, glue these strips to the inside of the hull with the top edge aligned with the pencil-
•
line; space them out at intervals of about 120 mm. Use UHU-Plast Spezial or cyano-acrylate adhesive
for this.
Remove the transom reinforcement (part 3) from the 4 mm plywood sheet, apply several coats of
•
Glattfix (cellulose lacquer - Order No. 207) to it, then glue it to the inside of the transom using Stabilit
Express or cyano.
Important: the holes and slots must not be clogged up with glue.
•
Press parts 4, 5 and 6 out of the 1
•
mm plywood sheet, and remove
any rough edges.
Glue the sponson former (part 4)
•
in the slots in the horizontal crutch
(part 6) from the underside.
Glue part 5 in the rear slots in the
•
horizontal crutch, this time working
from the top.
Caution: take care to glue the
•
formers at right-angles to part 6.
Allow the glued joints to harden
•
thoroughly before applying several
coats of sanding sealer to the
wooden surfaces, to ensure that they are waterproof.
Locate the two rear lugs in part 6 and insert them in the slots in the transom reinforcement, pushing
•
them in as far as they will go.
Lay the horizontal crutch on the ABS strips (parts 2), which are glued to the sides of the hull.
•
Important: check that the wooden framework and the hull are not distorted when the parts are
•
joined.
