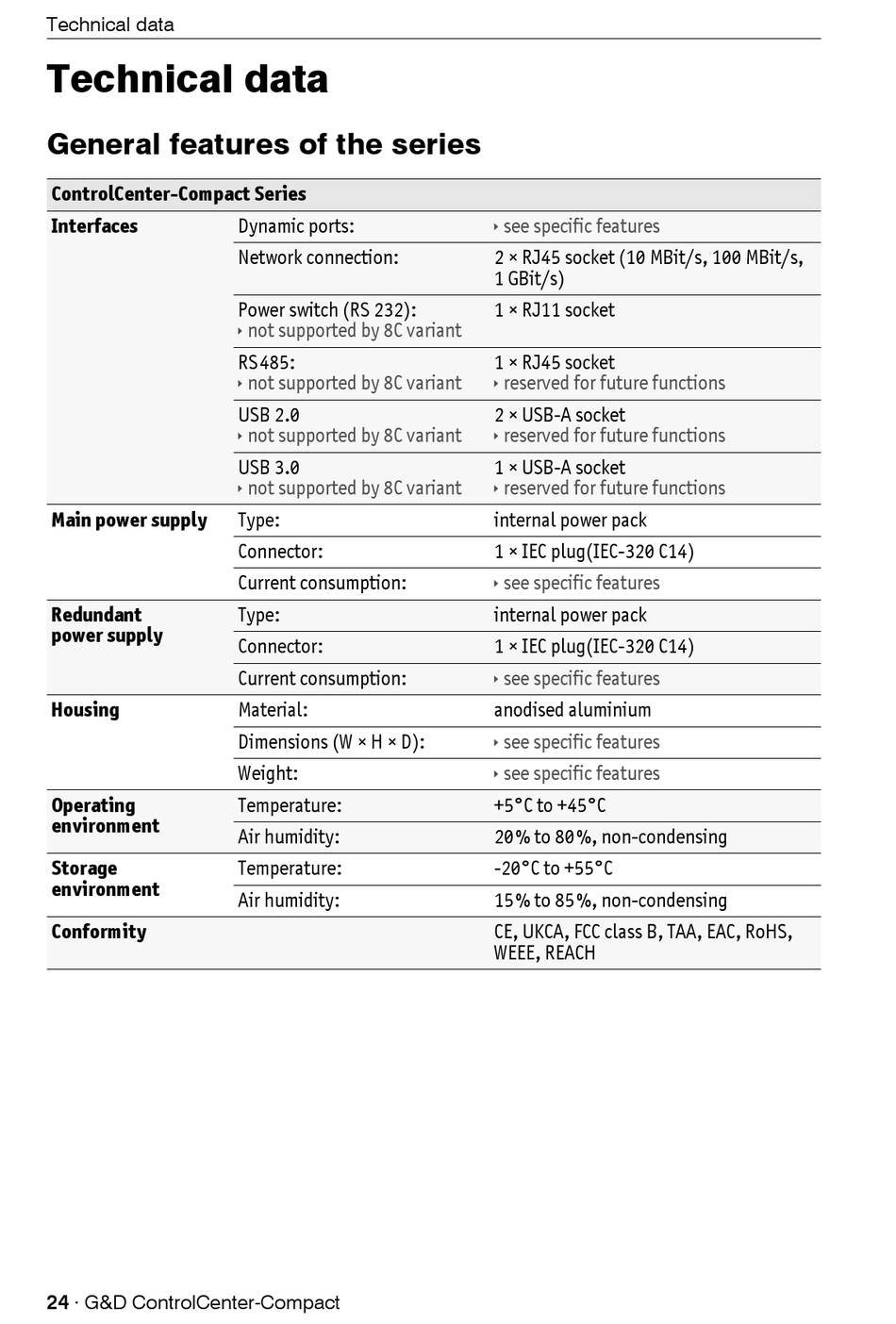

Technical data
Technical data
General features of the series
ControlCenter-Compact Series
Interfaces
Main power supply
Redundant
power supply
Housing
Operating
environment
Storage
environment
Conformity
24 · G&D ControlCenter-Compact
Dynamic ports:
Network connection:
Power switch (RS 232):
 not supported by 8C variant
RS 485:
 not supported by 8C variant
USB 2.0
 not supported by 8C variant
USB 3.0
 not supported by 8C variant
Type:
Connector:
Current consumption:
Type:
Connector:
Current consumption:
Material:
Dimensions (W × H × D):
Weight:
Temperature:
Air humidity:
Temperature:
Air humidity:
 see specific features
2 × RJ45 socket (10 MBit/s, 100 MBit/s,
1 GBit/s)
1 × RJ11 socket
1 × RJ45 socket
 reserved for future functions
2 × USB-A socket
 reserved for future functions
1 × USB-A socket
 reserved for future functions
internal power pack
1 × IEC plug(IEC-320 C14)
 see specific features
internal power pack
1 × IEC plug(IEC-320 C14)
 see specific features
anodised aluminium
 see specific features
 see specific features
+5°C to +45°C
20 % to 80 %, non-condensing
-20°C to +55°C
15 % to 85 %, non-condensing
CE, UKCA, FCC class B, TAA, EAC, RoHS,
WEEE, REACH
