Installation
Network interfaces
NOTE:
You need to connect the central module to one or two local networks to
configure the central module via Config Panel web application and use the
enhanced network functionalities (for example authentication against directory
services, time sync via NTP server, netfilter or syslog).
IMPORTANT:
If you change the configuration of the Dynamic Ports in the web applica-
tion, or if you enable the signalling of the Dynamic Ports modes, end the connection to
the web application and remove the twisted-pair cable from the network port at the
central module.

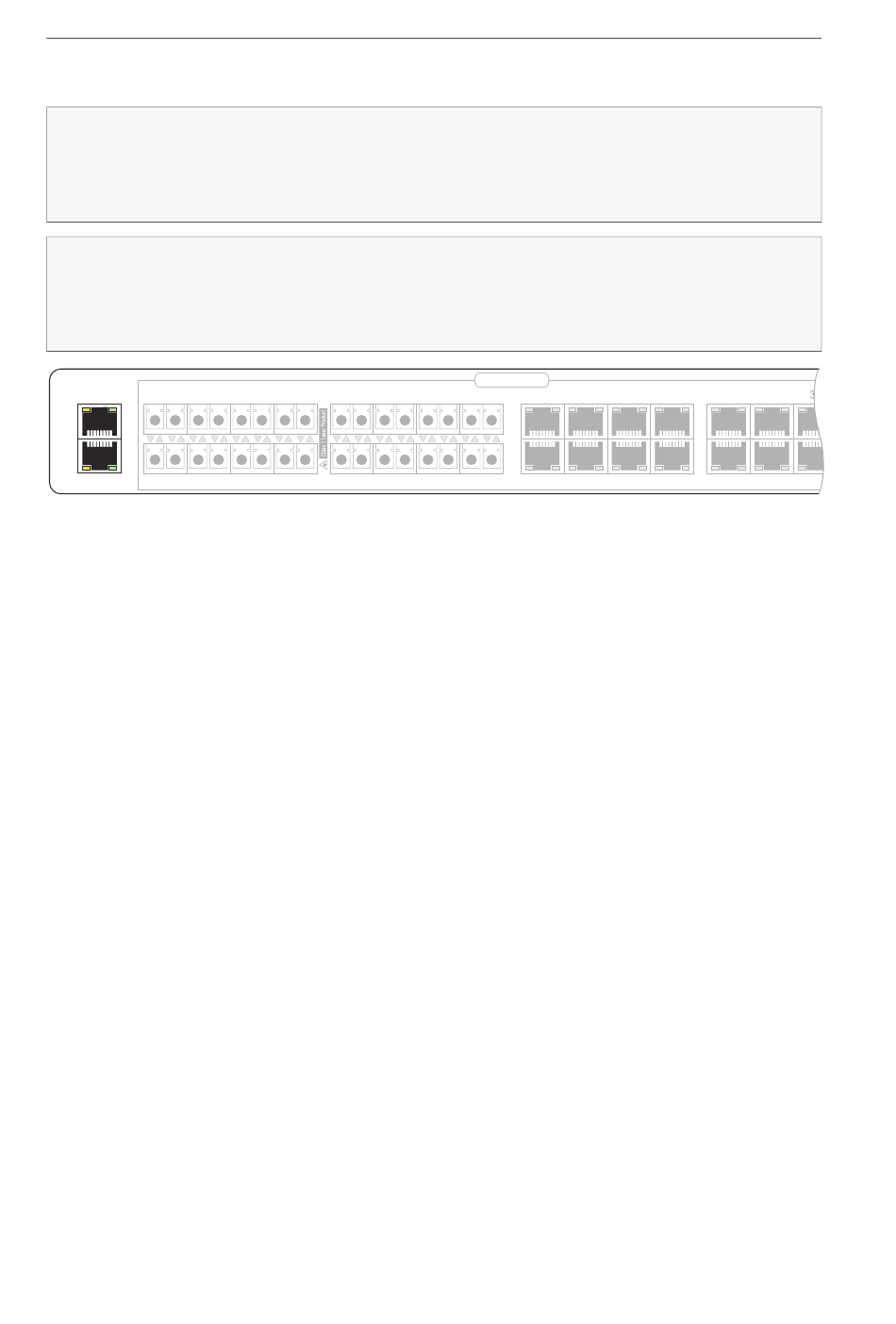

Network B
2
4
Tx
Rx
Tx
Rx
Network A
Rx
1
Tx
Rx
3
Tx
Network A:
If required, plug in a category 5e (or better) twisted-pair cable,
which is available as accessory.
Connect the other end of the cable to a network interface of the local network.
Network B:
If required, plug in a category 5e (or better) twisted-pair cable,
which is available as accessory.
Connect the other end of the cable to a network interface of the local network.
10 · G&D ControlCenter-Compact
6
8
10
12
Tx
Rx
Tx
Rx
Tx
Rx
Tx
Rx
Rx
5
Tx
Rx
7
Tx
Rx
9
Tx
Rx
11
Tx
Dynamic Ports
14
16
18
20
Tx
Rx
Tx
Rx
Rx
13
Tx
Rx
15
Tx
17
19
22
24
26
28
21
23
25
27
29
