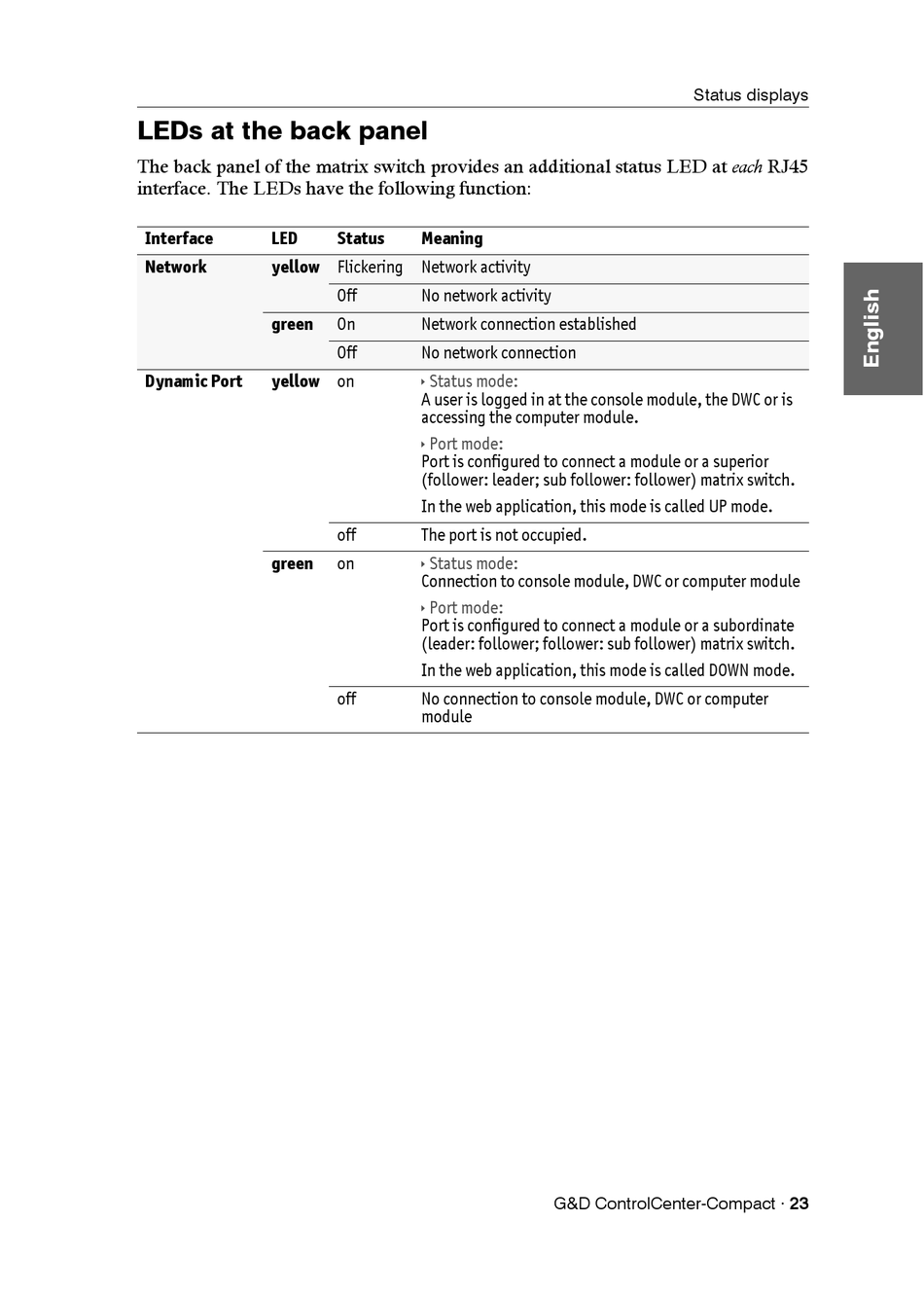

LEDs at the back panel
The back panel of the matrix switch provides an additional status LED at each RJ45
interface. The LEDs have the following function:
Interface LED
Network yellow Flickering Network activity
green
Dynamic Port yellow on
green
Status Meaning
Off No network activity
On Network connection established
Off No network connection
 Status mode:
A user is logged in at the console module, the DWC or is
accessing the computer module.
 Port mode:
Port is configured to connect a module or a superior
(follower: leader; sub follower: follower) matrix switch.
In the web application, this mode is called UP mode.
off The port is not occupied.
on  Status mode:
Connection to console module, DWC or computer module
 Port mode:
Port is configured to connect a module or a subordinate
(leader: follower; follower: sub follower) matrix switch.
In the web application, this mode is called DOWN mode.
off No connection to console module, DWC or computer
module
Status displays
G&D ControlCenter-Compact · 23
